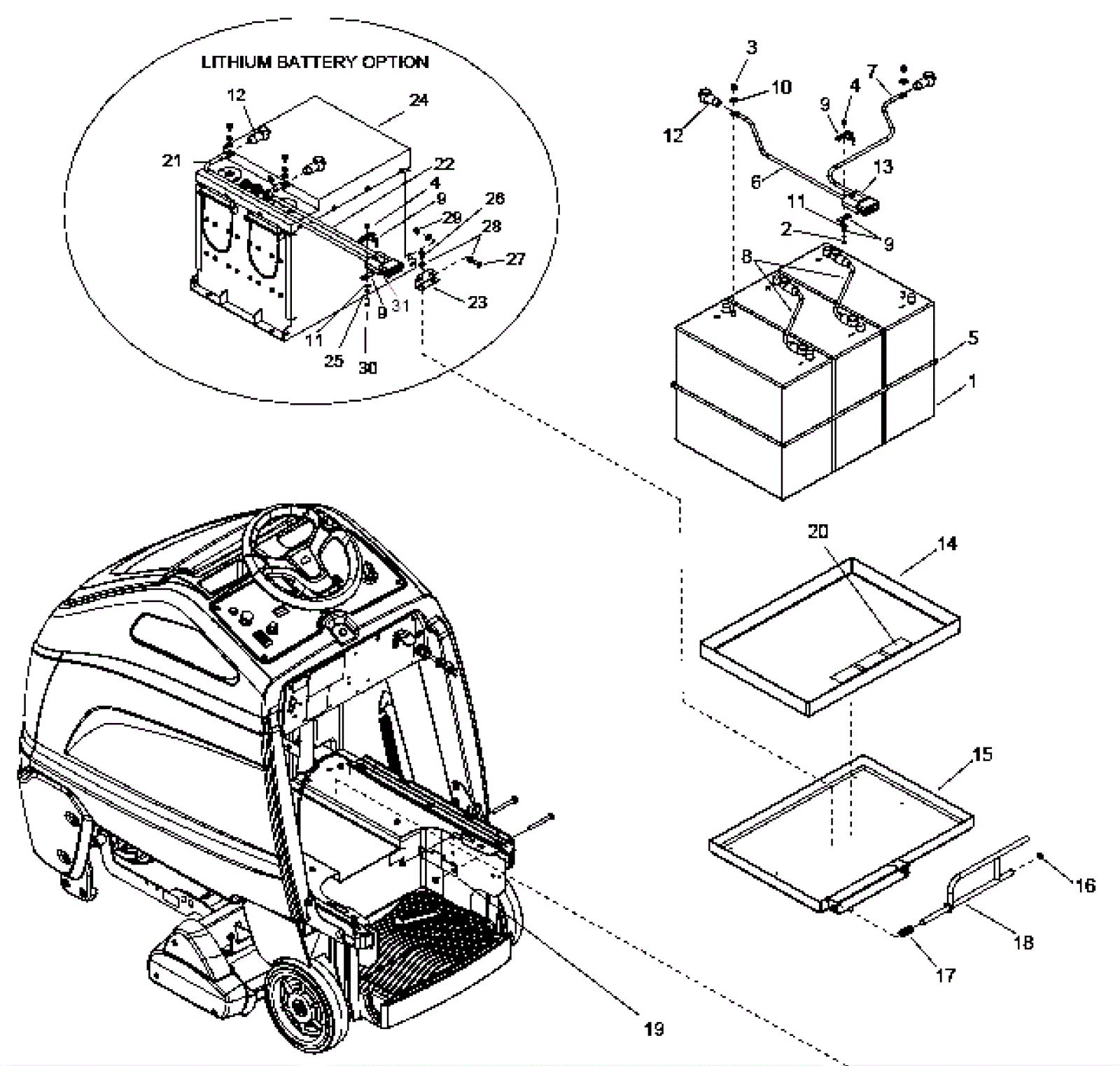

CHARIOT3 IVAC Wiring-Batteries

#PartDescriptionPriceReqNotesAvailability
1a 162-0047 12V 215Ah AGM battery (Group J185) $907.50 3 Except CV86LI ships same day
1b 162-0002 12V 185Ah wet battery (SNSR) $511.50 3 Except CV86LI ships same day
2 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
3 999-0895 Nut 5/16-18 flex type lock cadmium plated $1.43 6 ships same day
4 999-0961 Nut 10-32 acorn nickel plated $0.99 1 Except CV86LI ships same day
5 173-5594 Cable tie $28.16 2 usually ships 1-5 days
6 273-5992 Wire 4 x 25 inch ring style (red) $62.70 1 Except CV86LI usually ships 7-19 days
7 273-5993 Wire 4 x 30 inch ring style (black) $78.65 1 Except CV86LI usually ships 7-19 days
8 273-5764 Ring style jumper cable (black) $9.90 2 Except CV86LI usually ships 7-19 days
9 273-0049 Cable clamp kit $10.40 1 Except CV86LI usually ships 7-19 days
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 Except CV86LI ships same day
11 999-0998 Washer #10 flat stainless steel $0.99 1 Except CV86LI ships same day
12a 173-3311 Insulated rubber terminal boot $3.70 6 For AGM or Wet Batteries usually ships 7-19 days
12b 173-3311 Insulated rubber terminal boot $3.70 2 For Lithium Ion Battery usually ships 7-19 days
13 991-2112 175amp charger plug with pins (gray) SB175 $12.87 1 Except CV86LI ships same day
14 273-7595 Battery tray $236.50 1 Except CS26LI usually ships 1-5 days
15 273-3427 Battery tray assembly $321.20 1 usually ships 1-5 days
16 173-3486 Snap ring $4.16 1 CV86LI usually ships 7-19 days
17 173-5599 Spring $35.20 1 CV86LI usually ships 7-19 days
18 173-5598 Latch rod $136.40 1 usually ships 7-19 days
19 273-3428 Battery stop plate $12.87 2 CV86LI usually ships 1-5 days
20 173-5595 Block $22.99 3 1B Only usually ships 1-5 days
21 273-8709 1/0 wire contact term M8 ring 28 inch (black) $53.02 1 CV86LI usually ships 7-19 days
22 273-8710 1/0 wire contact term M8 ring 20 inch (red) $47.85 1 CV86LI usually ships 7-19 days
23 273-8711 Lithium battery mount bracket $9.08 4 CV86LI usually ships 7-19 days
24 273-8712 36V lithium battery $19,140.00 1 CV86LI usually ships 7-19 days
25 373-1043 Washer $0.99 1 CV86LI usually ships 7-19 days
26 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 CV86LI ships same day
27 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 CV86LI ships same day
28 999-0123 Washer 1/4 SAE flat zinc plated $0.99 12 CV86LI ships same day
29 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 CV86LI ships same day
30 173-2493 Screw 10-32 x 1 phillips head $0.99 1 CV86LI usually ships 7-19 days
N/S 273-8708 Fuse 150a lithium 36v 12-36-6700 $57.75 1 CS26LI usually ships 7-19 days
