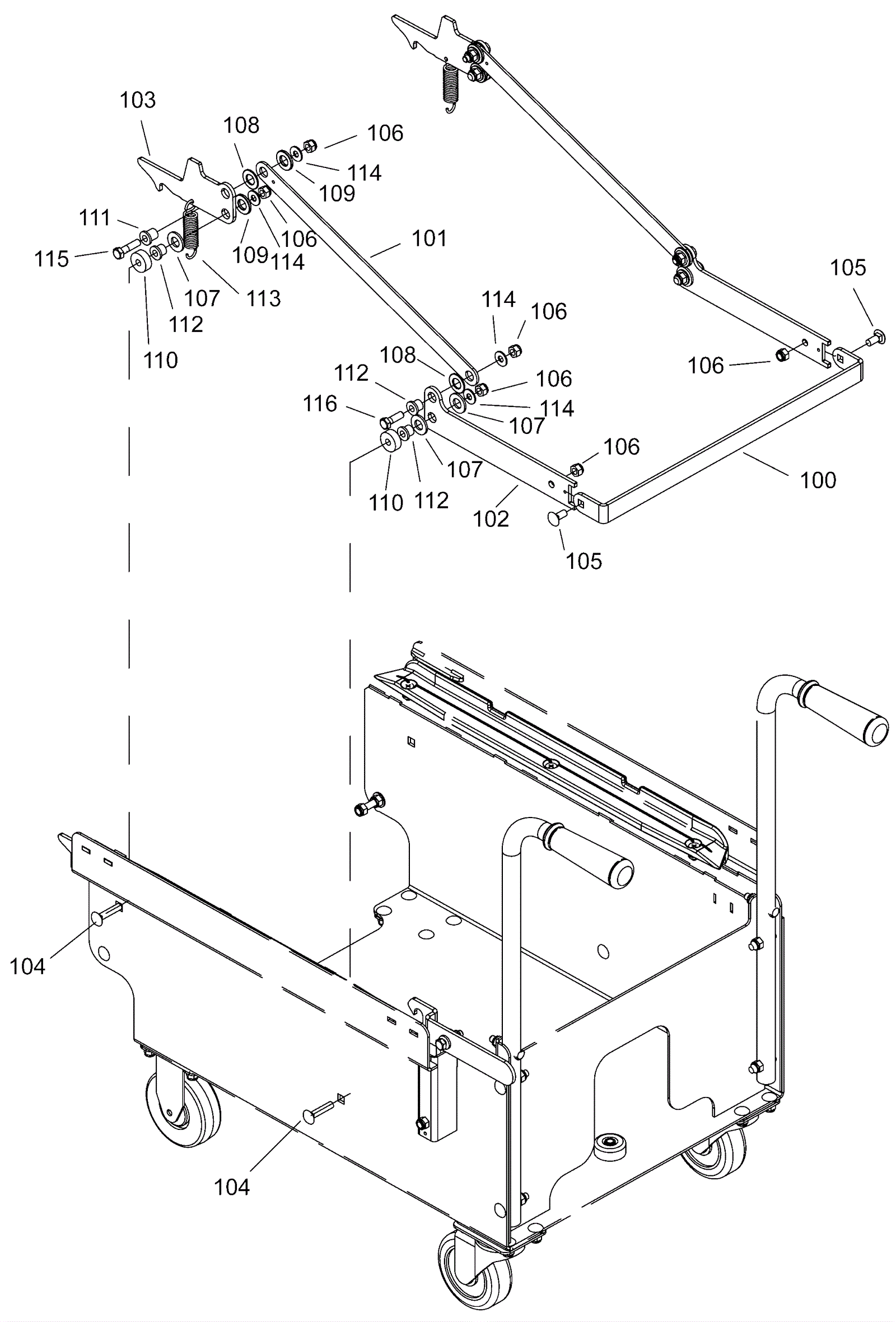

| # | Part | Description |
Req | Notes | Availability |
|---|
100 |
273-3406
|
Pedal bracket |
1 |
|
|
101 |
273-3407
|
Latch link plate |
2 |
|
|
102 |
273-3408
|
Pedal link plate |
2 |
|
|
103 |
273-3409
|
Latch plate |
2 |
|
|
104 |
173-5464
|
Screw 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
105 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
106 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
10 |
|
|
107 |
173-2815
|
Washer 33/64 x 1 thrust |
6 |
|
|
108 |
173-3964
|
Thrust washer |
4 |
|
|
109 |
173-3963
|
Washer 1/2 thrust |
4 |
|
|
110 |
173-5480
|
Spacer |
4 |
|
|
111 |
273-0024
|
Flanged bearing |
2 |
|
|
112 |
173-3116
|
Flanged bearing |
6 |
|
|
113 |
173-8442
|
Extension spring |
2 |
|
|
114 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
115 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
116 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
|
