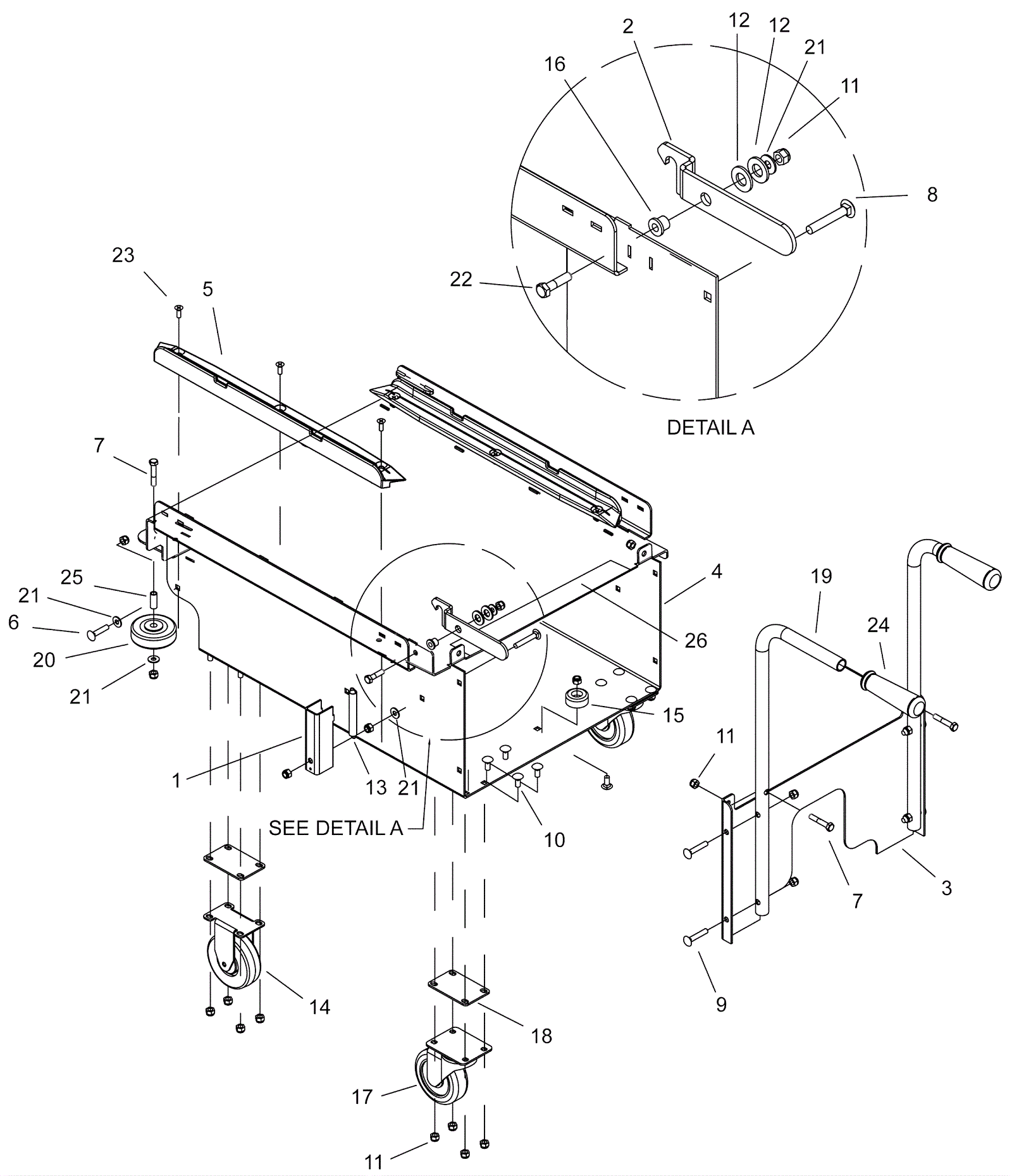

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-3410
|
Spring cover bracket |
1 |
|
|
2 |
273-3411
|
Tray catch bracket |
1 |
|
|
3 |
273-3412
|
Rear bracket |
1 |
|
|
4 |
273-3413
|
Battery cart frame assembly |
1 |
|
|
5 |
273-7253
|
Battery tray glide |
2 |
|
|
6 |
173-5464
|
Screw 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
|
7 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
4 |
|
|
8 |
999-0476
|
Screw 5/16-18 x 2 carriage head grade 5 zinc |
1 |
|
|
9 |
999-0404
|
Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc |
4 |
|
|
10 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
17 |
|
|
11 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
32 |
|
|
12 |
173-2815
|
Washer 33/64 x 1 thrust |
2 |
|
|
13 |
173-5617
|
Spring |
1 |
|
|
14 |
173-5622
|
4 inch caster wheel |
2 |
|
|
15 |
173-3703
|
Rubber bumper |
1 |
|
|
16 |
173-3116
|
Flanged bearing |
1 |
|
|
17 |
173-0557
|
4 inch swivel caster wheel |
2 |
|
|
18 |
173-5621
|
Spacer plate |
4 |
|
|
19 |
173-5620
|
Battery cart handle |
2 |
|
|
20 |
173-1630
|
3 inch rubber wheel |
2 |
|
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
22 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
23 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
6 |
|
|
24 |
173-0371
|
Handle grip |
2 |
|
|
25 |
173-1634
|
Bushing |
2 |
|
|
26 |
173-5629
|
Battery cart operation decal |
1 |
|
|
