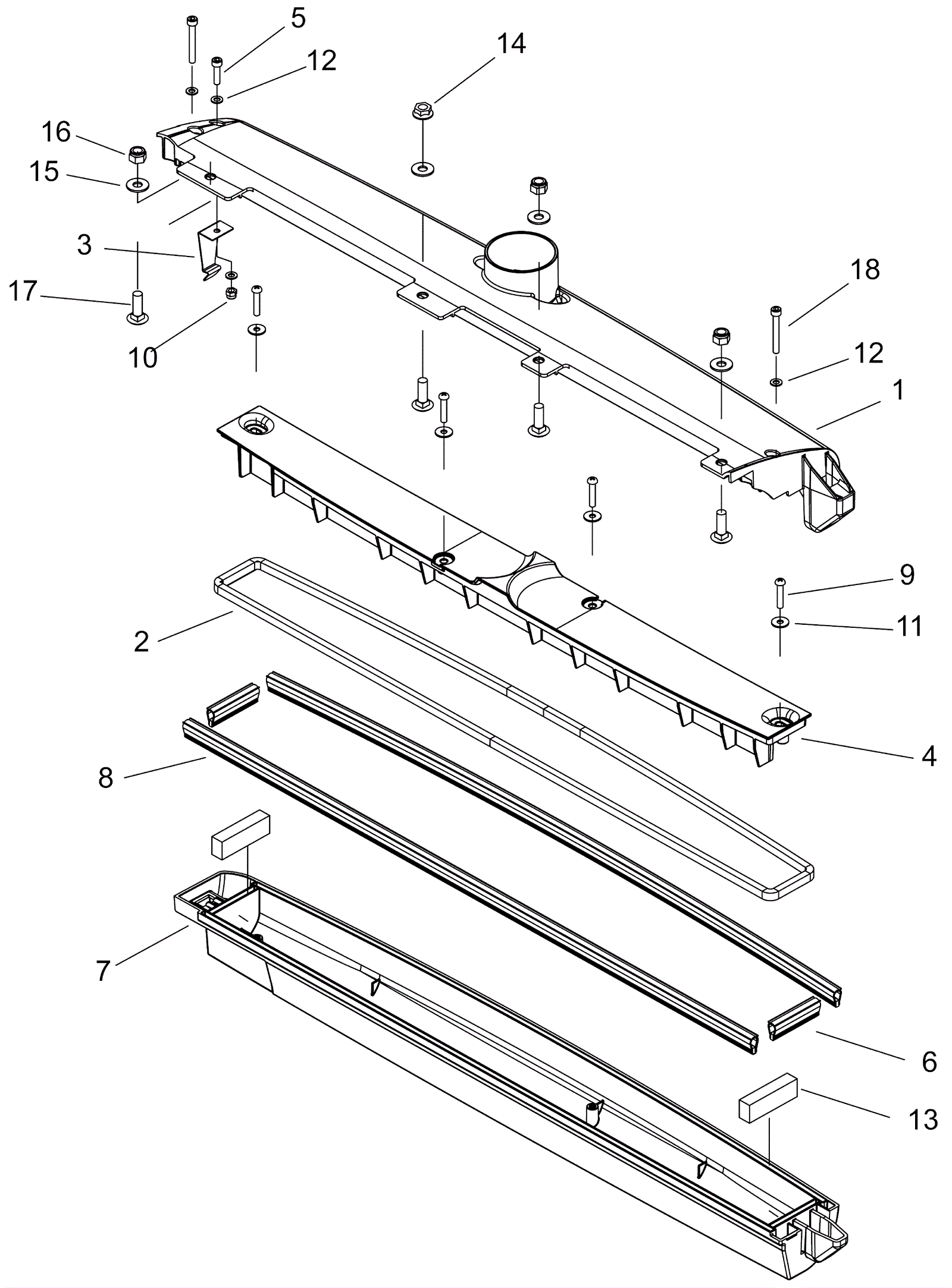

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-8704
|
Trimmed debris tray mount |
1 |
|
|
2 |
273-8705
|
Debris bin gasket |
2 |
|
|
3 |
273-7620
|
Debris tray spring clip |
1 |
|
|
4 |
273-8706
|
Debris bin insert |
1 |
|
|
5 |
273-5592
|
Screw M5-.8 x 20mm socket head cap stainless steel |
1 |
|
|
6 |
273-2056
|
Debris tray end gasket |
2 |
|
|
7 |
273-6535
|
28 inch debris tray |
1 |
|
|
8 |
273-6536
|
28 inch debris tray gasket |
2 |
|
|
9 |
273-5415
|
Screw KA50 x 25mm stainless steel |
4 |
|
|
10 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
1 |
|
|
11 |
273-5591
|
Washer M5 flat stainless steel |
4 |
|
|
12 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
13 |
273-8707
|
Debris tray gasket |
2 |
|
|
14 |
173-2465
|
Nut 5/16 external snap (OBSOLETE) |
1 |
|
|
15 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
16 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
17 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
4 |
|
|
18 |
999-1677
|
Screw M5-.8 x 40mm socket head stainless steel |
2 |
|
|
