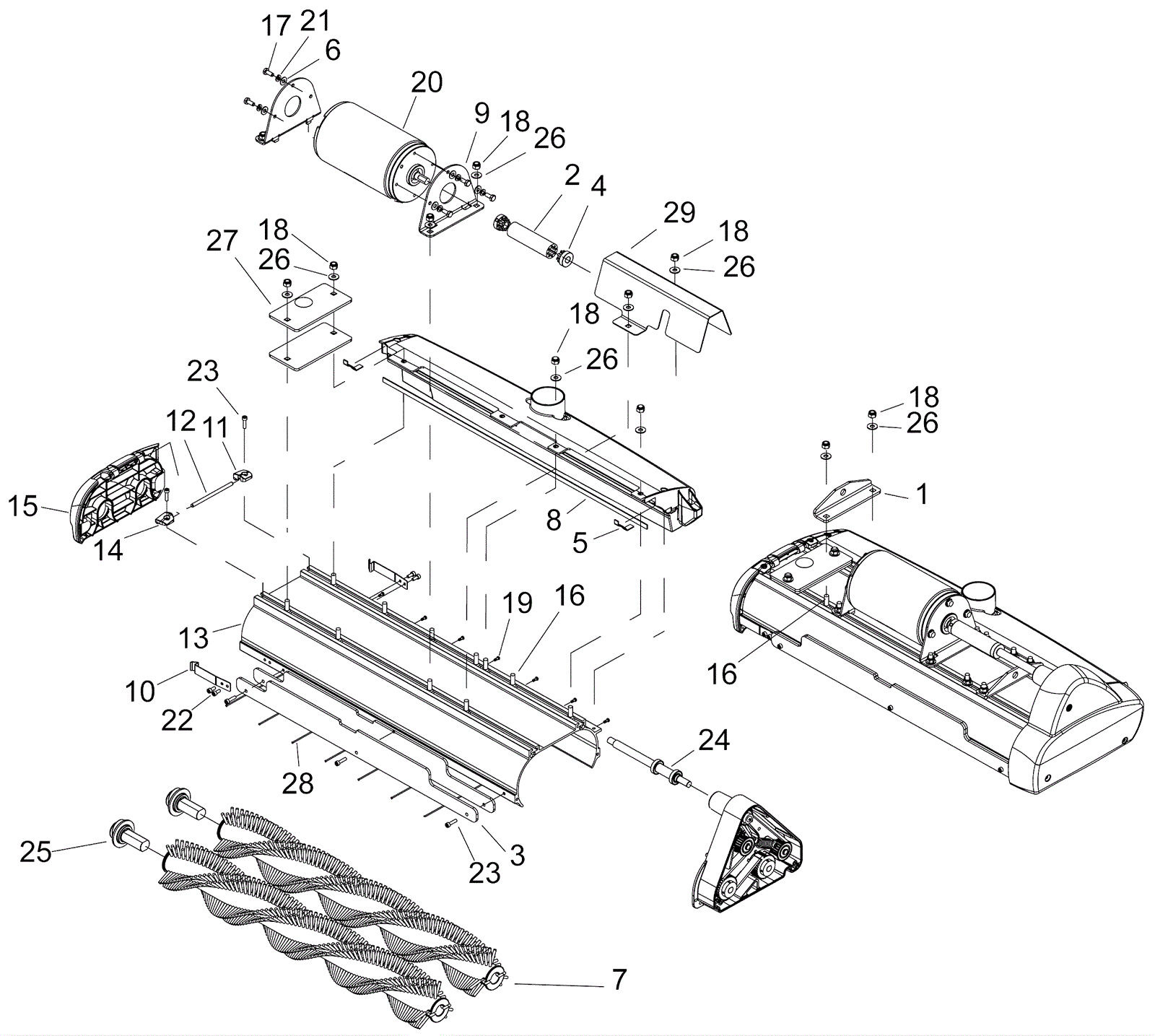

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-6566
|
Pivot bracket |
2 |
|
|
2 |
273-3182
|
Sleeve |
1 |
|
|
3 |
273-8696
|
Counterbalance plate |
2 |
|
|
4 |
273-3183
|
Coupling hub |
2 |
|
|
5 |
273-6546
|
Gasket |
2 |
|
|
6 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
7 |
273-2051
|
28 inch standard brush - CYLINDRICAL |
2 |
|
|
8 |
273-6547
|
Gasket |
1 |
|
|
9 |
273-6548
|
Motor mounting bracket |
2 |
|
|
10 |
273-6549
|
Spring clip |
2 |
|
|
11 |
273-6550
|
Rear hinge cap |
1 |
|
|
12 |
273-6551
|
Dowel pin |
1 |
|
|
13 |
273-6552
|
Brush extrusion |
1 |
|
|
14 |
273-6553
|
Front hinge cap |
1 |
|
|
15 |
273-6554
|
Brush release door |
1 |
|
|
16 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
11 |
|
|
17 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
6 |
|
|
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
11 |
|
|
19 |
273-6558
|
Guard nipple (OBSOLETE) |
7 |
|
|
20 |
173-1743
|
Brush motor |
1 |
|
|
21 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
22 |
273-5734
|
Screw M5-.8 x 12mm socket head cap stainless steel |
4 |
|
|
23 |
273-5592
|
Screw M5-.8 x 20mm socket head cap stainless steel |
5 |
|
|
24 |
273-6555
|
24 inch drive shaft assembly |
1 |
|
|
25 |
273-5587
|
Brush end cap shaft assembly |
2 |
|
|
26 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
11 |
|
|
27 |
273-6556
|
Weight plate |
2 |
|
|
28 |
273-6559
|
Guard rod (OBSOLETE) |
7 |
|
|
29 |
273-8698
|
Shaft cover bracket |
1 |
|
|
N/S |
273-8700
|
28 inch debris tray |
1 |
|
|
