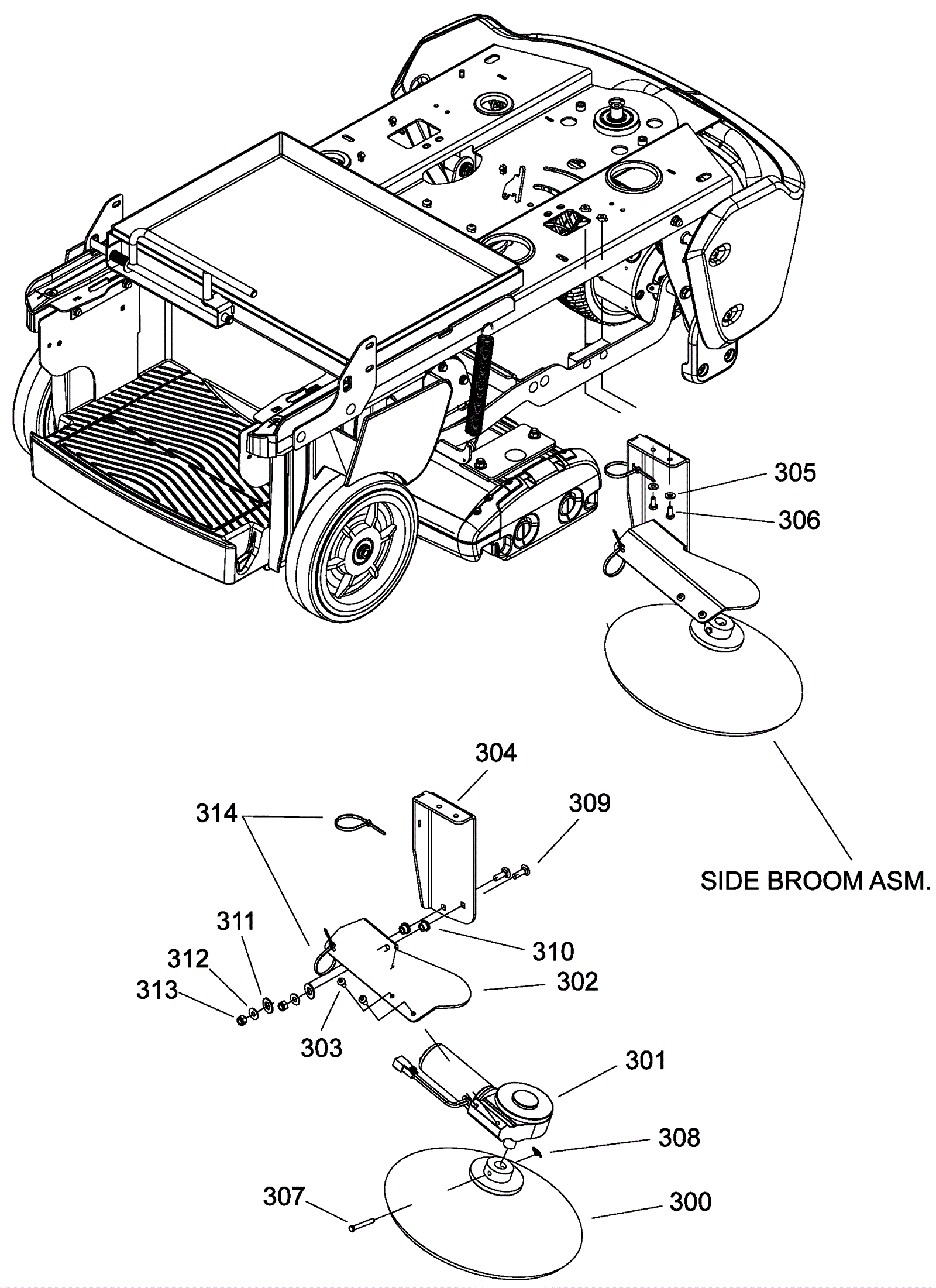

| # | Part | Description |
Req | Notes | Availability |
|---|
300 |
273-8691
|
13 inch nylon brush (black) |
1 |
|
|
301 |
273-6206
|
36vdc motor |
1 |
|
|
302 |
273-8692
|
Side broom mount bracket |
1 |
|
|
303 |
273-8693
|
Screw - #M6 x 1 x 16 steel zinc plated (black) |
2 |
|
|
304 |
273-8694
|
Side broom support bracket |
1 |
|
|
305 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
306 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
307 |
173-7261
|
Clevis pin |
1 |
|
|
308 |
173-1130
|
Cotter ring |
1 |
|
|
309 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
|
310 |
273-5628
|
Flanged bearing |
2 |
|
|
312 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
313 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
314 |
273-3820
|
11 inch cable tie |
2 |
|
|
