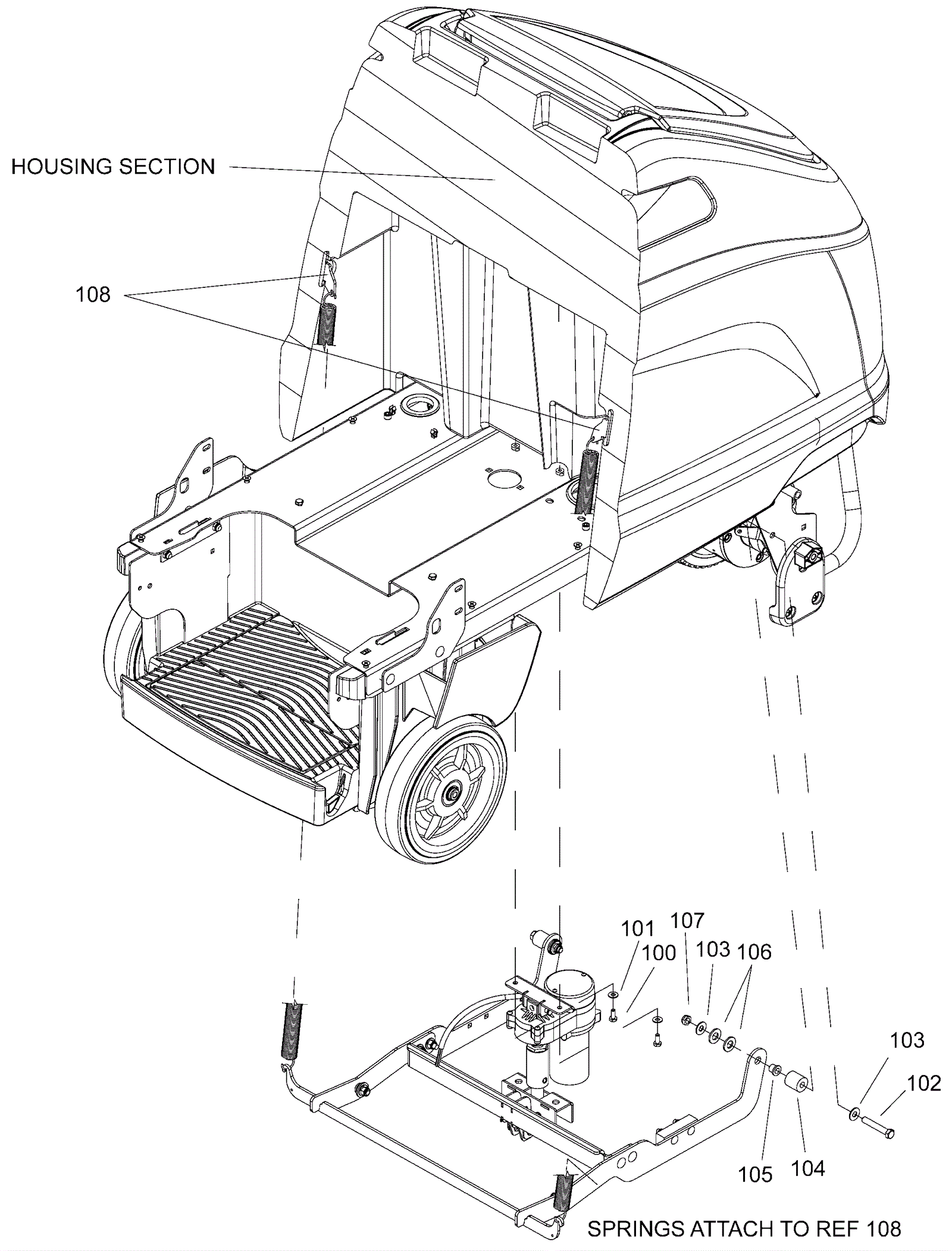

CHARIOT3 IVAC Deck Lift Assembly (Part 2)

#PartDescriptionPriceReqNotesAvailability
100 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.90 2 ships same day
101 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
102 999-9076 Screw 3/8 -16 x 2 1/4 hex head stainless steel $1.25 2 ships same day
103 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
104 273-5866 Spacer $28.60 2 usually ships 1-5 days
105 173-6064 Flanged bearing $12.10 2 usually ships 1-5 days
106 173-2815 Washer 33/64 x 1 thrust $7.81 4 usually ships 7-19 days
107 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $1.25 2 ships same day
108 273-6597 Upper bracket $11.90 2 usually ships 7-19 days
