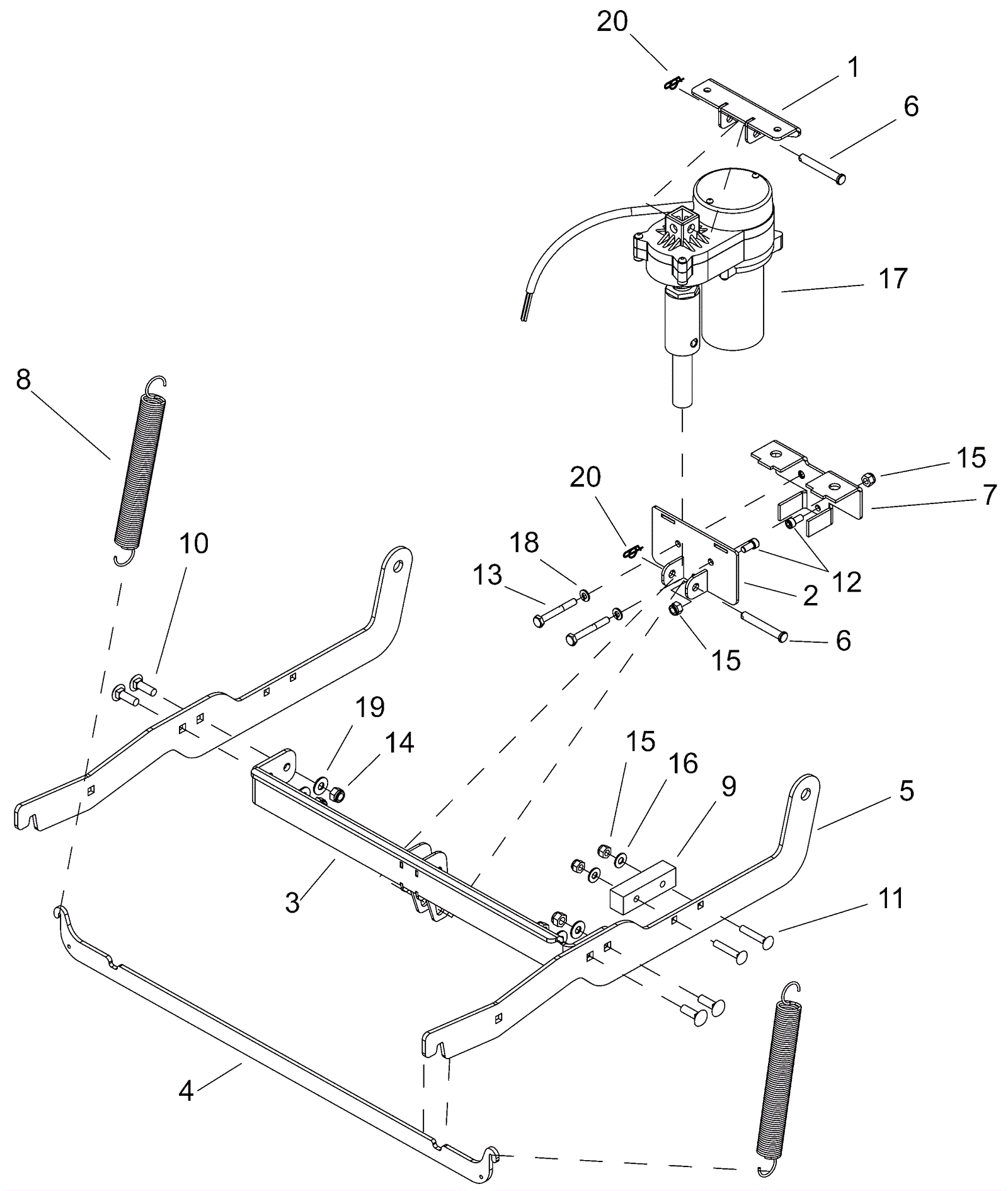

CHARIOT3 IVAC Deck Lift Assembly (Part 1)

#PartDescriptionPriceReqNotesAvailability
1 273-8686 Actuator mount bracket $42.00 1 usually ships 7-19 days
2 273-8687 Actuator mount $72.50 1 usually ships 7-19 days
3 273-8688 Deck crossbar bracket $114.00 1 usually ships 7-19 days
4 273-8689 Spring lift plate $58.50 1 usually ships 7-19 days
5 273-8690 Deck arm plate $86.50 2 usually ships 7-19 days
6 273-7280 Clevis pin $7.85 2 usually ships 1-5 days
7 273-7282 Actuator deck bracket $38.50 1 usually ships 7-19 days
8 273-6569 Extension spring $66.50 2 usually ships 7-19 days
9 273-2936 Motor lifter block $52.00 1 usually ships 7-19 days
10 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
11 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
12 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 2 ships same day
13 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $8.75 2 ships same day
14 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 2 usually ships 11-24 days
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
17 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
18 173-6056 36V actuator $682.13 1 usually ships 7-19 days
19 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
