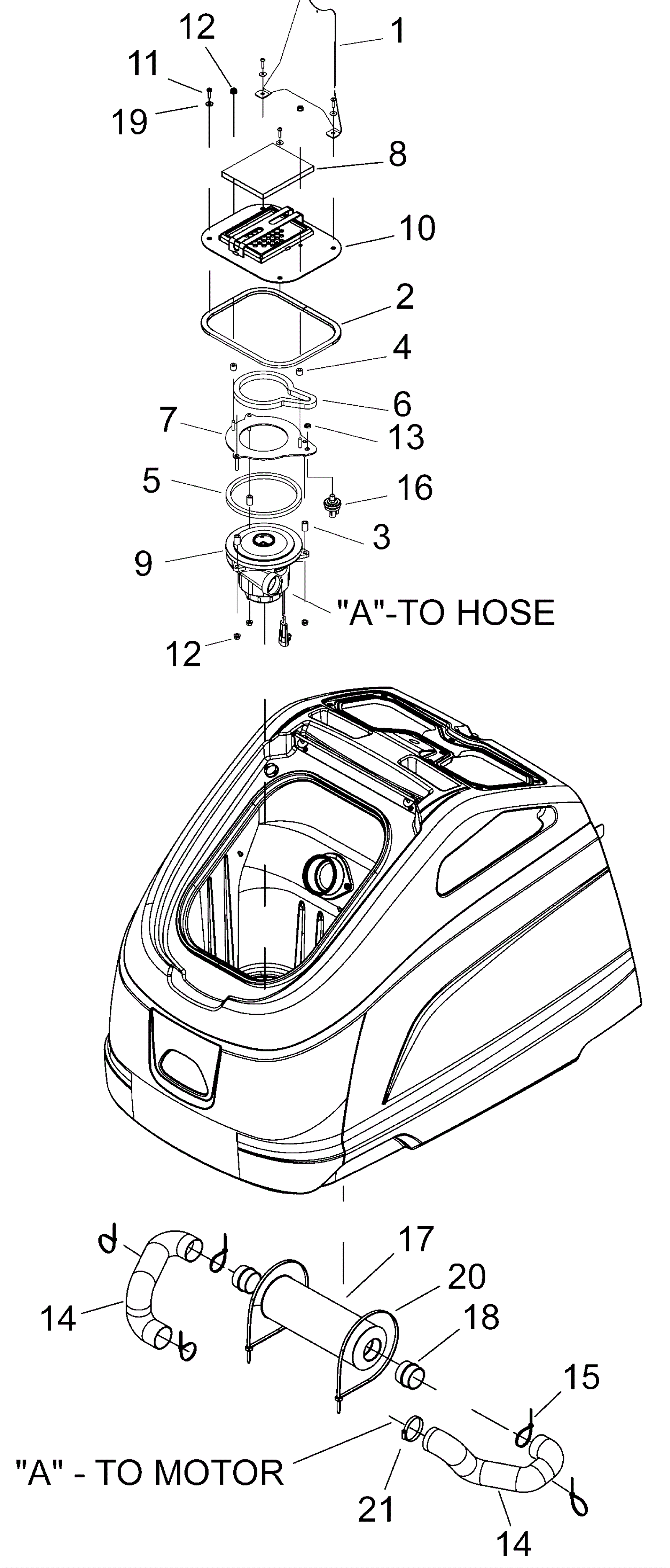

CHARIOT3 IVAC Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8658 Bag support bracket $48.51 1 usually ships 14-22 days
2 273-8659 Gasket 1/4 x 1/2 x 35 $7.87 1 usually ships 14-22 days
3 273-8660 Nylon spacer 1/4 x 3/4 x 1/2 inch $1.64 3 usually ships 14-22 days
4 273-8661 Nylon spacer 1/4 x 7/16 x 1/2 inch $1.52 2 usually ships 14-22 days
5 273-8662 Gasket 5 51/64 x 6 19/32 x 3/8 inches $19.58 1 usually ships 14-22 days
6 273-8663 Vacuum chamber gasket $35.97 1 usually ships 14-22 days
7 273-8664 Vacuum mount plate $67.10 1 usually ships 14-22 days
8 273-8665 Vacuum intake filter $56.10 1 usually ships 14-22 days
9 273-8666 Vacuum motor assembly (36vdc 1-stage) $218.90 1 usually ships 14-22 days
10 273-8667 Vacuum motor mount $117.70 1 usually ships 14-22 days
11 999-0973 Screw 10-32 x 1 truss head phillips zinc plated $0.99 4 ships same day
12 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 5 ships same day
13 273-2961 Nut 1/8 IPS brass $3.61 1 usually ships 1-5 days
14 173-0640 Vacuum exhaust hose 19 inches long $56.10 2 usually ships 1-5 days
15 273-3820 11 inch cable tie $0.41 5 ships same day
16 173-9856 Vacuum switch $214.53 1 usually ships 14-22 days
17 273-6226 Sound muffler $46.86 1 usually ships 14-22 days
18 273-6225 Muffler adapter fitting $6.16 2 usually ships 1-5 days
19 273-5591 Washer M5 flat stainless steel $1.82 4 usually ships 14-22 days
20 173-3305 Cable tie $11.66 2 usually ships 1-5 days
21 997-2007 Hose clamp $2.07 1 ships same day
