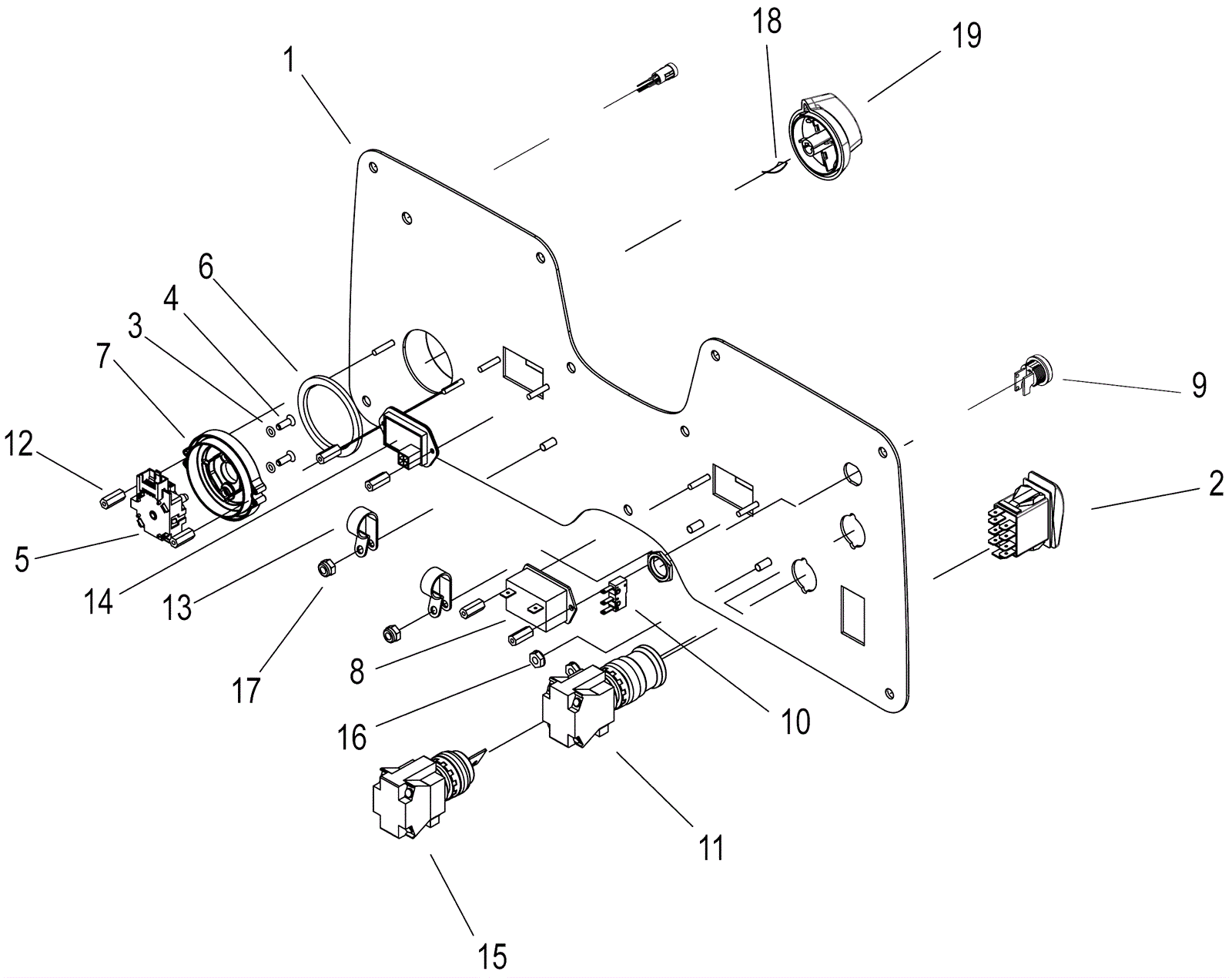

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-8654
|
Upper control panel (CV34) |
1 |
|
|
2 |
273-7150
|
3 position switch |
1 |
|
|
3 |
273-6635
|
O-ring |
2 |
|
|
4 |
999-1682
|
Screw M4-.7 x 12mm flat head stainless steel |
2 |
|
|
5 |
273-6631
|
Rotary switch |
1 |
|
|
6 |
273-6633
|
Gasket |
1 |
|
|
7 |
273-6632
|
Rotary switch (bezel) |
1 |
|
|
8 |
273-5769
|
Hour meter |
1 |
|
|
9 |
273-0914
|
Button assembly |
1 |
|
|
10 |
273-5780
|
Micro switch |
1 |
|
|
11 |
273-5774
|
Emergency stop switch |
1 |
|
|
12 |
173-1520
|
Nylon standoff |
6 |
|
|
13 |
173-1139
|
5/8 nylon clamp |
2 |
|
|
14 |
273-5772
|
36V battery meter |
1 |
|
|
15 |
173-8560
|
Master key switch |
1 |
|
|
16 |
173-2472
|
Nut 10-32 with star washer |
1 |
|
|
17 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
18 |
273-9368
|
Knob w/ spring clip |
1 |
|
|
19 |
273-6022
|
Knob |
1 |
|
|
