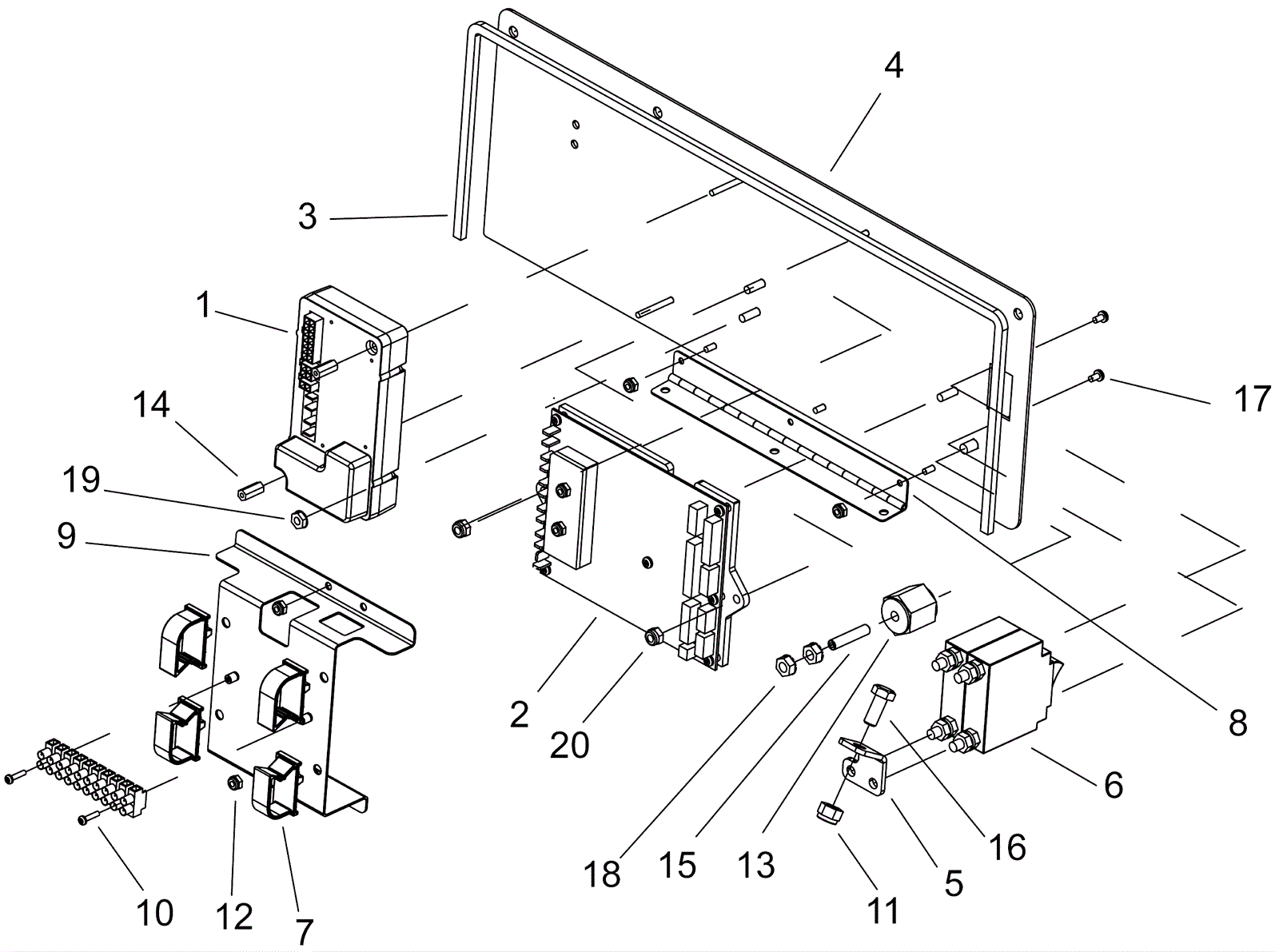

CHARIOT3 IVAC Lower Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8650 I-Drive controller $311.00 1 usually ships 7-19 days
2 273-8651 PCB replacement kit (CV86 telematics) $874.00 1 usually ships 7-19 days
3 273-8652 Gasket $6.85 1 usually ships 7-19 days
4 273-8653 Lower control panel (CV34) $60.00 1 usually ships 7-19 days
5 273-7231 Cable attachment bracket $19.90 1 usually ships 1-5 days
6 273-7230 60amp breaker $178.00 1 usually ships 7-19 days
7 273-7226 Cable entry clip $10.50 4 usually ships 1-5 days
8 273-7227 Panel hinge $49.60 1 usually ships 1-5 days
9 273-7229 Control board cover $84.00 1 usually ships 1-5 days
10 999-1330 Screw 4-40 x 1/2 pan head stainless steel $0.99 2 ships same day
11 999-0895 Nut 5/16-18 flex type lock cadmium plated $1.43 1 ships same day
12 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.14 4 usually ships 7-19 days
13 173-1145 Insulated stand-off $20.50 1 usually ships 7-19 days
14 173-1520 Nylon standoff $6.05 2 ships same day
15 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
16 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
17 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 2 ships same day
18 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
19 173-2472 Nut 10-32 with star washer $0.90 1 usually ships 1-5 days
20 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
