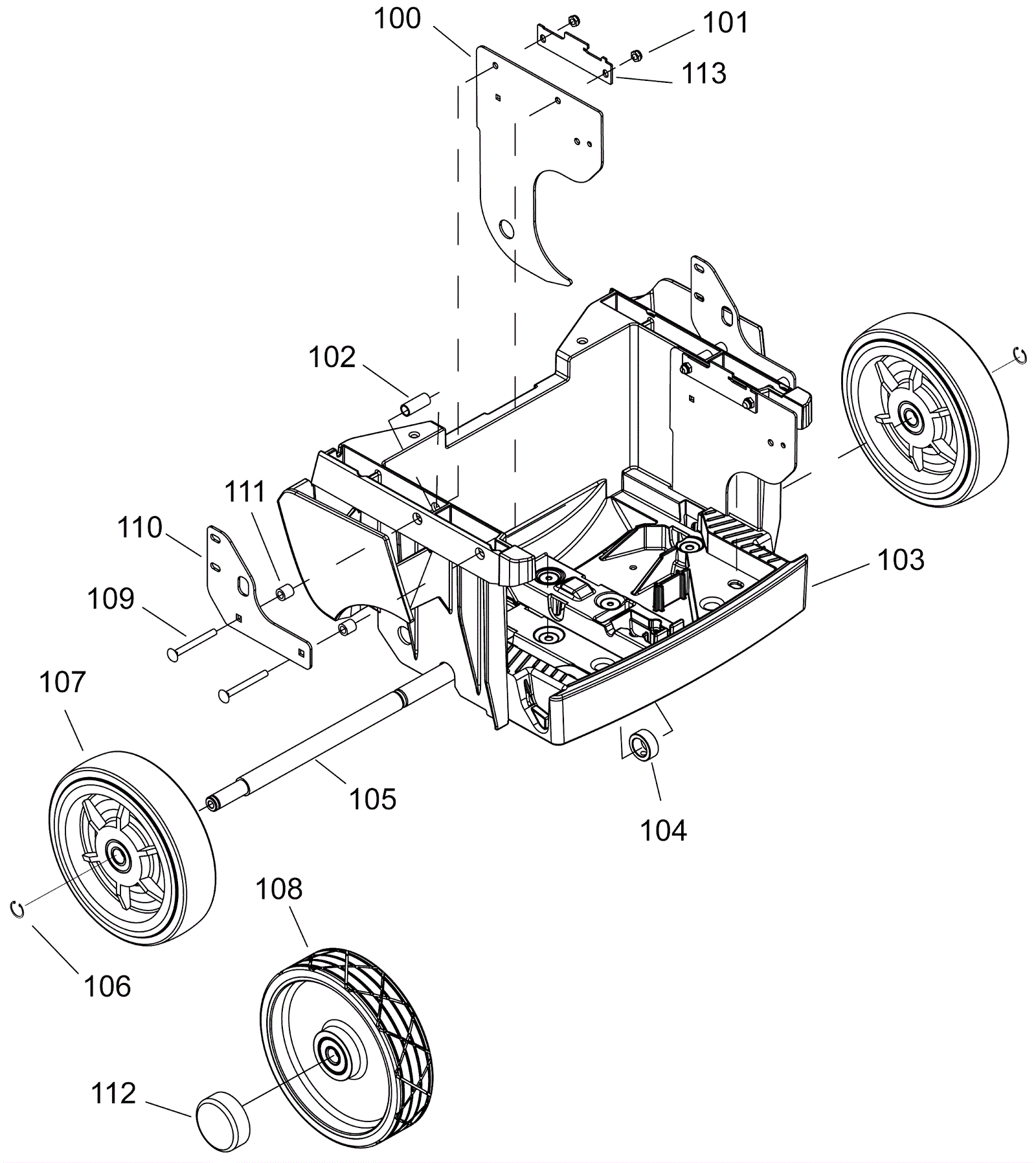

| # | Part | Description |
Req | Notes | Availability |
|---|
100 |
273-7263
|
Platform support plate |
2 |
|
|
101 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
102 |
273-7264
|
Spacer |
4 |
|
|
103 |
273-8649
|
Machined platform operator |
1 |
|
|
104 |
273-7266
|
Shaft collar |
1 |
|
|
105 |
273-7267
|
Rear axle |
1 |
|
|
106 |
173-3286
|
3/4 inch extended snap ring |
2 |
|
|
107 |
273-6213
|
Rear wheel |
2 |
|
|
108 |
273-7268
|
Plastic wheel with bearings |
2 |
|
|
109 |
999-1335
|
Bolt 5/16-18 x 3 round head carriage stainless steel |
4 |
|
|
110 |
273-7269
|
Tank support plate |
2 |
|
|
111 |
173-5559
|
Spacer |
4 |
|
|
112 |
273-0031
|
Vinyl cap (black) |
2 |
|
|
113 |
273-3428
|
Battery stop plate |
2 |
|
|
