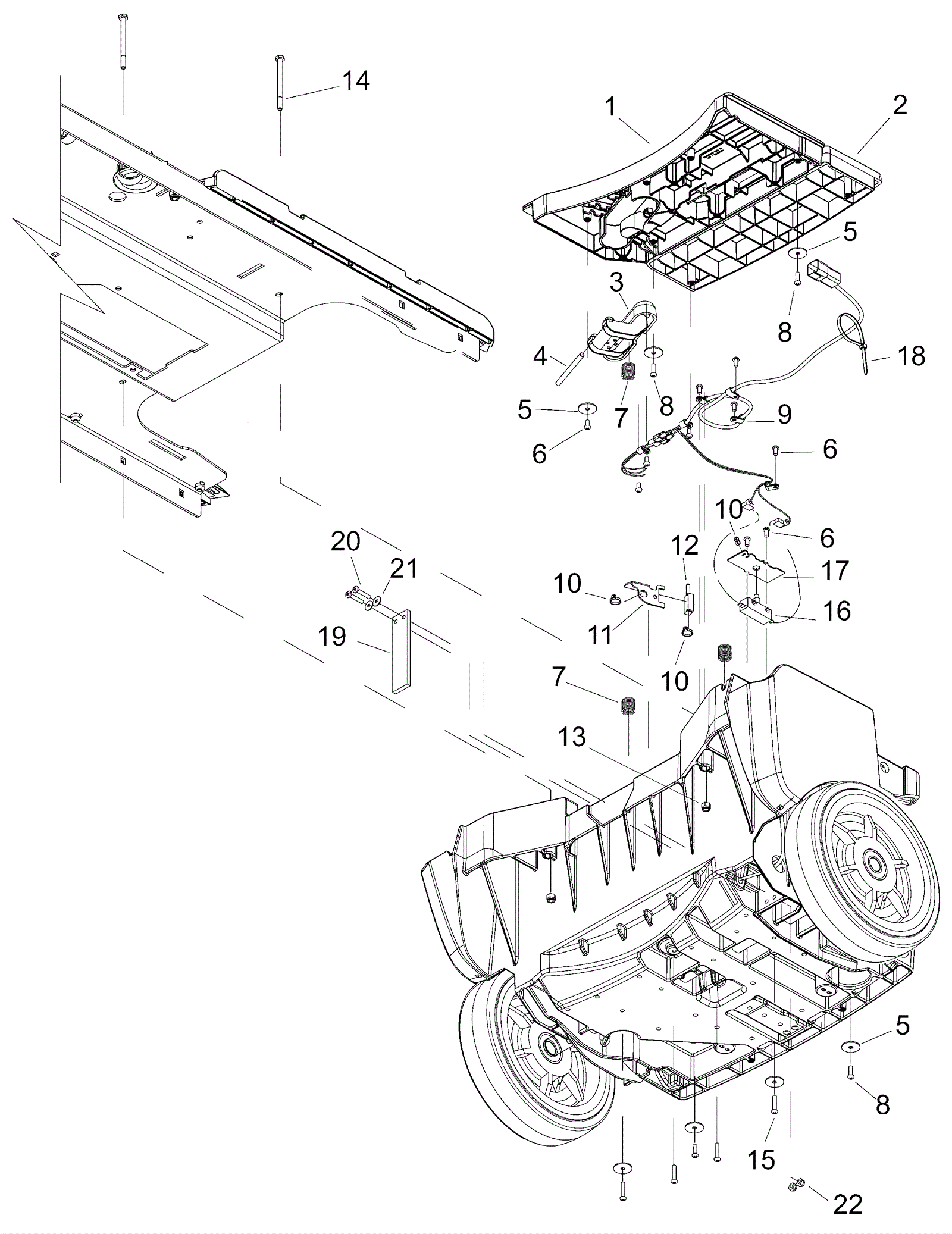

CHARIOT3 IVAC Platform Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7257 Operator platform (black) $90.75 1 usually ships 7-19 days
2 273-7258 Heel pedal (black) $101.75 1 ships same day
3 273-7259 Accelerator pedal (yellow) $69.30 1 usually ships 7-19 days
4 273-7260 Dowel pin .25D x 3.125 (OBSOLETE) $27.39 1 usually ships 7-19 days
5 273-0265 Washer #10 $0.99 7 usually ships 7-19 days
6 273-5604 Screw $0.99 10 ships same day
7 173-5493 Spring $10.62 3 usually ships 7-19 days
8 183-0281 Screw $1.35 4 usually ships 8-21 days
9 173-7218 Hose clamp (OBSOLETE) $0.99 6 usually ships 1-5 days
10 173-0822 Wire tie $0.99 3 usually ships 7-19 days
11 273-7261 Potentiometer bracket $26.73 1 ships same day
12 173-7217 Linear potentiometer assembly $135.30 1 usually ships 7-19 days
13 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
14 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
15 273-5415 Screw KA50 x 25mm stainless steel $4.84 4 ships same day
16 173-0378 25amp switch replacement $65.45 1 ships same day
17 273-7262 Switch cover plate $9.74 1 usually ships 1-5 days
18 273-3820 11 inch cable tie $0.41 1 ships same day
19 273-8648 Static strap $37.29 1 usually ships 7-19 days
20 173-2493 Screw 10-32 x 1 phillips head $0.99 2 usually ships 7-19 days
21 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
22 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
