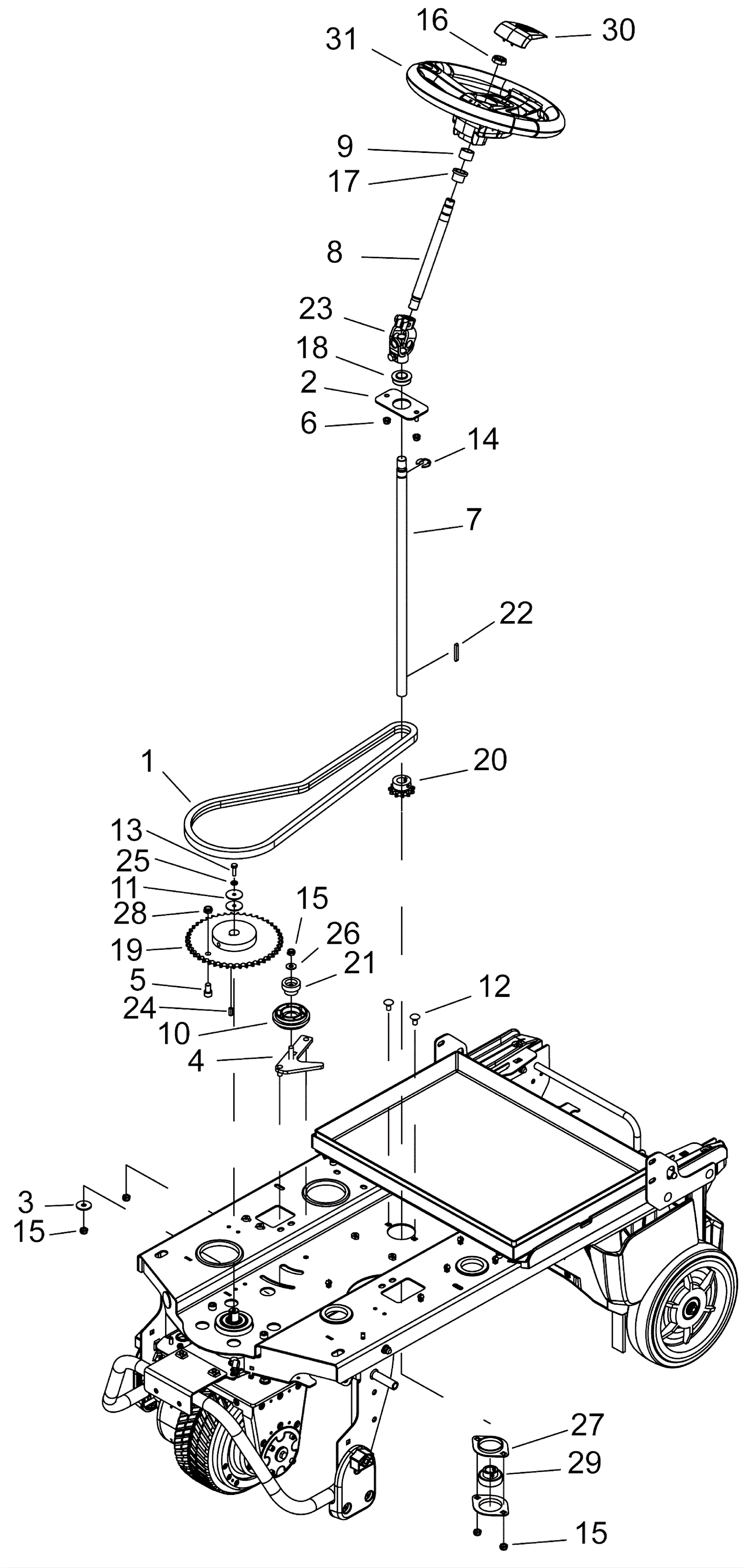

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-8646
|
12.7mm chain |
1 |
|
|
2 |
273-8647
|
Steering bracket |
1 |
|
|
3 |
273-7219
|
Washer |
1 |
|
|
4 |
273-3216
|
Tensioner plate assembly |
1 |
|
|
5 |
273-7255
|
Screw 3/8-16 x 5/8 cap socket head |
1 |
|
|
6 |
999-0595
|
Nut 1/4-20 flange lock serrated zinc plated |
2 |
|
|
7 |
273-3217
|
Lower steering shaft |
1 |
|
|
8 |
273-3218
|
Upper steering shaft |
1 |
|
|
9 |
273-7096
|
Bearing 3/4 x 1 |
1 |
|
|
10 |
173-5988
|
Chain tensioner |
1 |
|
|
11 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
12 |
273-0019
|
Screw 5/16-18 x 5/8 carriage stainless steel |
2 |
|
|
13 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
14 |
173-3445
|
Ring clip |
1 |
|
|
15 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
16 |
173-5057
|
Nut 5/8-16 elastic stop |
1 |
|
|
17 |
173-7161
|
Flanged bearing |
1 |
|
|
18 |
173-3446
|
Flanged bearing |
1 |
|
|
19 |
173-5560
|
Steering sprocket |
1 |
|
|
20 |
173-5557
|
Sprocket |
1 |
|
|
21 |
173-5291
|
Chain tensioner sleeve |
1 |
|
|
22 |
173-5556
|
Square keyway |
1 |
|
|
23 |
173-5554
|
Universal female joint |
1 |
|
|
24 |
173-9111
|
Square keyway |
1 |
|
|
25 |
999-1049
|
Washer 1/4 split lock zinc plated |
1 |
|
|
26 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
27 |
173-3536
|
Flanged bearing |
2 |
|
|
28 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
29 |
173-5558
|
3/4 inch ball bearing |
1 |
|
|
30 |
273-3220
|
Steering wheel cap |
1 |
|
|
31 |
273-7093
|
Steering wheel |
1 |
|
|
