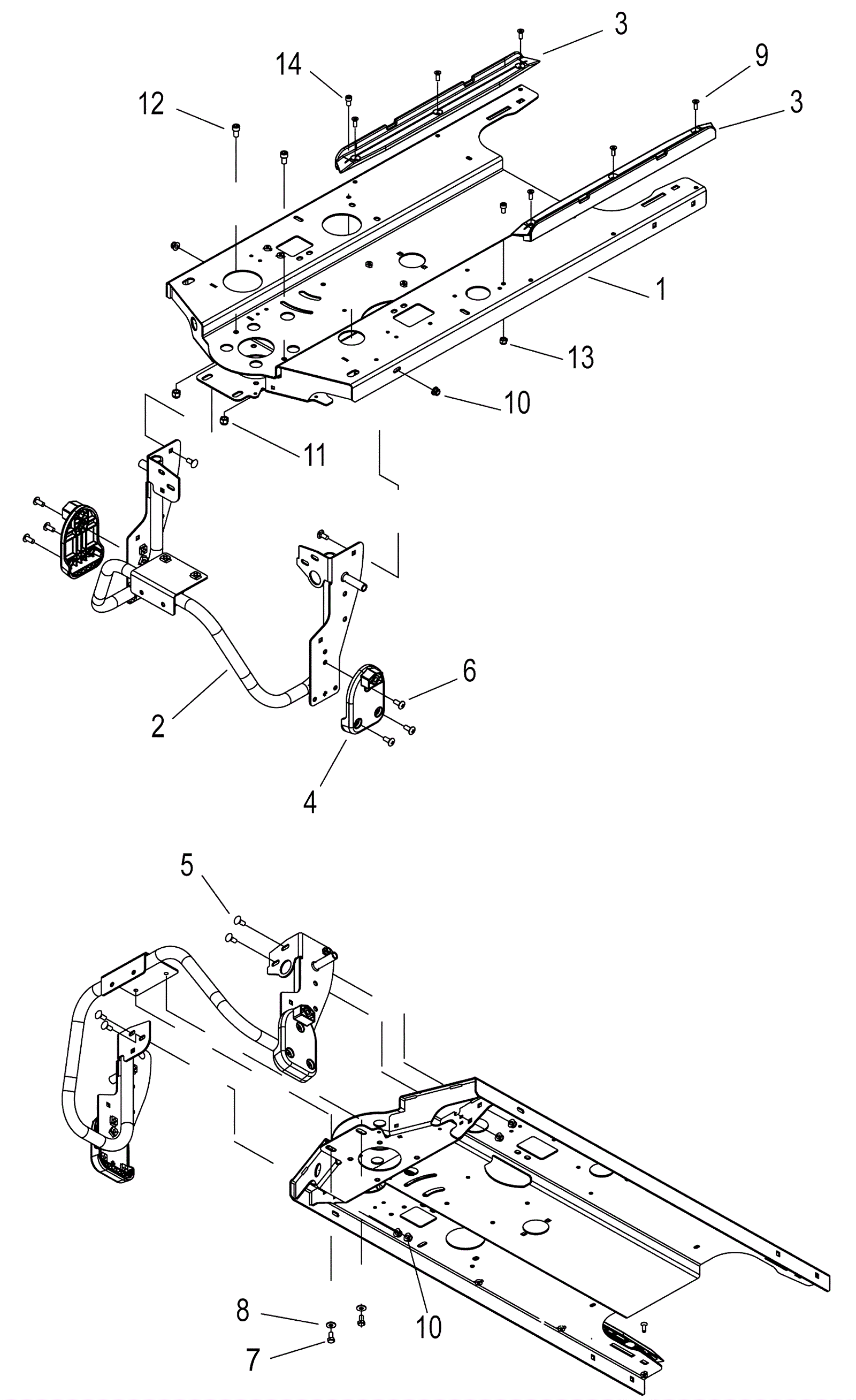

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-8645
|
CV86 Frame |
1 |
|
|
2 |
273-7252
|
Wheel guard assembly |
1 |
|
|
3 |
273-7253
|
Battery tray glide |
2 |
|
|
4 |
273-7254
|
Tip pad |
2 |
|
|
5 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
6 |
|
|
6 |
999-1146
|
Screw 5/16-18 x 3/4 truss head phillips stainless steel |
6 |
|
|
7 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
2 |
|
|
8 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
9 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
6 |
|
|
10 |
999-0525
|
Nut 5/16-18 flange lock serrated zinc plated |
6 |
|
|
11 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
2 |
|
|
12 |
273-7255
|
Screw 3/8-16 x 5/8 cap socket head |
2 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
14 |
999-0681
|
Screw 5/16-18 x 1/2 cup point square head set |
2 |
|
|
