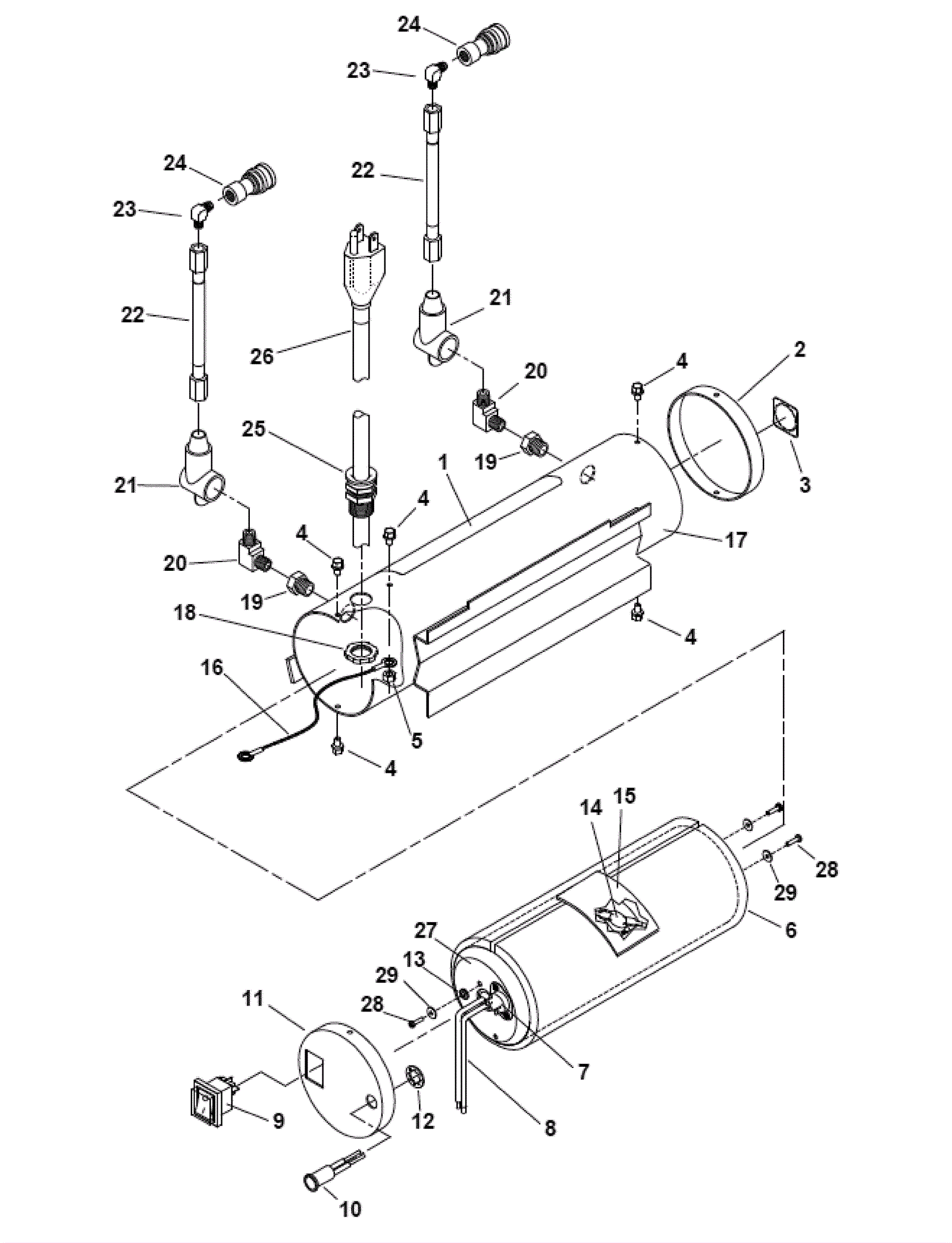

CHEYENNE 2 Heater Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7689 Heater warning decal $33.00 1 usually ships 11-16 days
2 273-7690 Outlet housing cap $108.88 1 usually ships 11-16 days
3 173-1282 For safety decal $10.30 1 usually ships 1-5 days
4 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.99 5 usually ships 11-16 days
5 173-2472 Nut 10-32 with star washer $0.99 1 usually ships 1-5 days
6 273-7691 Insulation $187.00 1 usually ships 11-16 days
7 273-6520 Thermostat reset $34.36 1 ships same day
8 N/A Not available Call for price 1 120v heating element(obsolete with no replacement) usually ships 3-26 days
9 273-7676 Rocker switch (OBSOLETE) $16.39 1 usually ships 11-16 days
10 173-9680 Neon indicator light 115V $28.60 1 usually ships 1-5 days
11 273-7693 Switch cap housing Call for price 1 usually ships 11-16 days
12 173-9156 Neon lamp clip $5.23 1 usually ships 11-16 days
13 173-2090 1/8 plug (OBSOLETE) $6.49 1 usually ships 11-16 days
14 273-6519 Thermostat with spade leads $22.59 1 usually ships 11-16 days
15 273-7694 Insulation paper $4.40 1 usually ships 11-16 days
16 173-0296 Green Wiring 4 inches $52.25 1 usually ships 1-5 days
17 273-7695 Heater housing port $314.60 1 usually ships 11-16 days
18 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.99 1 usually ships 11-16 days
19 273-6762 Bushing $6.55 2 usually ships 1-5 days
20 273-7696 Brass elbow $4.36 2 usually ships 11-16 days
21 173-3311 Insulated rubber terminal boot $4.30 2 usually ships 11-16 days
22 273-7697 Hose 3/16 x 14 1/4 inch $74.95 2 usually ships 11-16 days
23 273-7699 Brase elbow 1/4 p x 1/4 t $5.50 2 usually ships 11-16 days
24 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) $22.04 2 usually ships 14-17 days
25 173-0682 Strain relief $3.04 1 usually ships 11-16 days
26 173-7390 Power cord $83.57 1 usually ships 11-16 days
27 273-6901 Heater cartridge case $350.75 1 usually ships 1-5 days
28 999-1686 Screw 6-32 x 3/16 phillips head machine $0.99 3 usually ships 1-5 days
29 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
