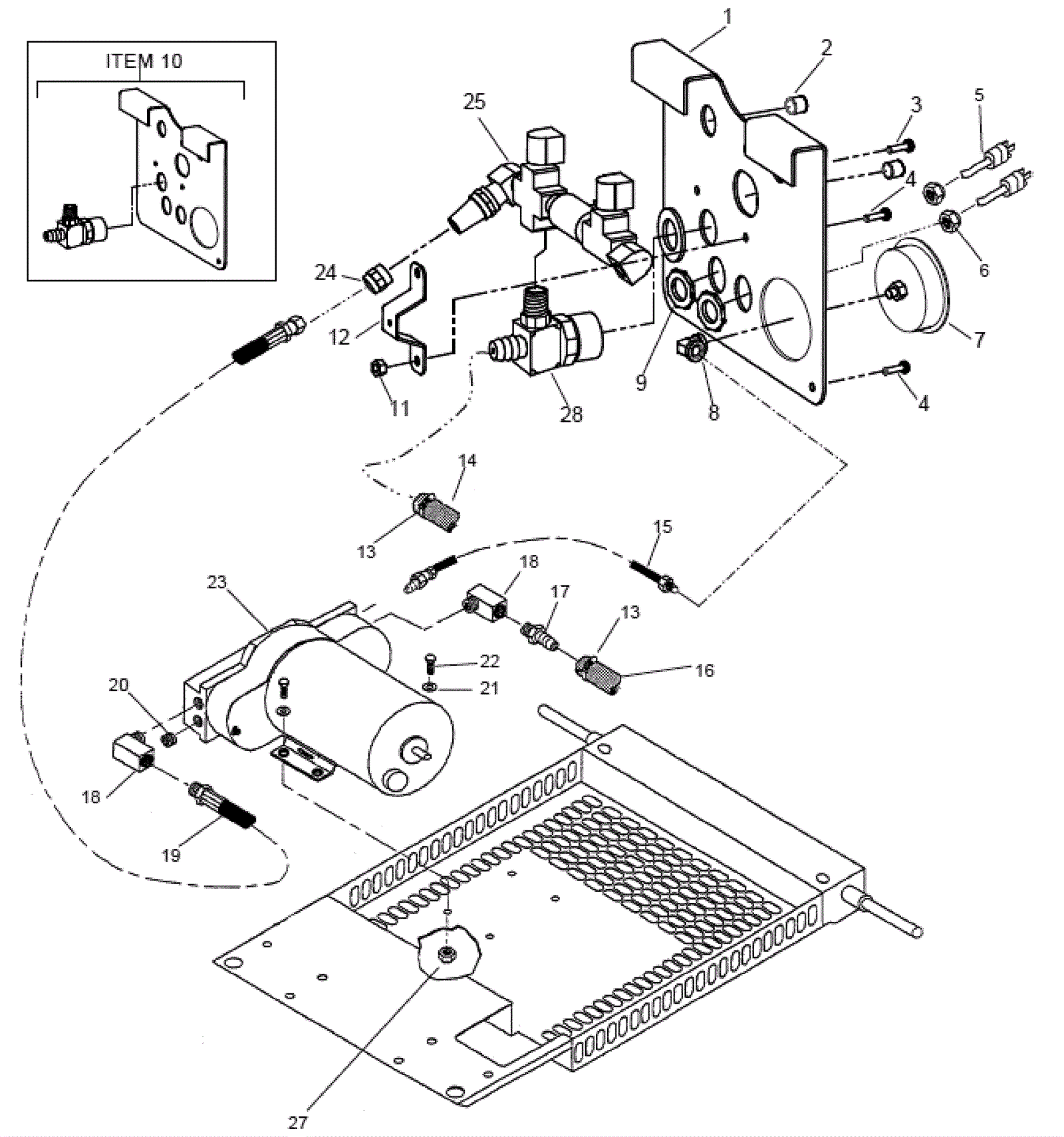

CHEYENNE HP 200psi Pump Assembly - Heated - 3 Stage Vacuum

#PartDescriptionPriceReqNotesAvailability
1 273-7669 Manifold plate $69.30 1 usually ships 7-19 days
2 173-9671 Brass pipe plug 1/4 inch $4.30 2 usually ships 1-5 days
3 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
4 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
6 173-0682 Strain relief $2.61 2 usually ships 7-19 days
7 273-7670 1000 psi pressure gauge (OBSOLETE) $49.61 1 usually ships 7-19 days
8 173-4943 Elbow 1/4 x 1/4 $15.51 1 usually ships 1-5 days
9 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.99 2 usually ships 7-19 days
10 273-7671 Valve Call for price 1 usually ships 7-19 days
11 173-2472 Nut 10-32 with star washer $0.99 2 usually ships 1-5 days
12 173-3048 valve mounting bracket $23.98 1 usually ships 1-5 days
13 173-1821 Hose clamp $6.39 4 ships same day
14 173-3175 20 inch hose $56.65 1 usually ships 1-5 days
15 273-7672 Nylonbrade hose 1/2 x 20 inch $87.08 1 usually ships 7-19 days
16 173-0641 Rubber hose 3/8 x 15 inches $4.07 1 usually ships 1-5 days
17 273-6214 Washer 1/4 x 1 1/2 fender plated $2.11 1 usually ships 1-5 days
18 173-8668 90D Long street 1/4 npt elbow $14.88 2 usually ships 1-5 days
19 273-7673 Pulse hose (OBSOLETE) $55.83 1 usually ships 7-19 days
20 173-9671 Brass pipe plug 1/4 inch $4.30 1 usually ships 1-5 days
21 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
22 273-7664 Screw 10-32 x 1 1/8 pan head phillips stainless steel $3.82 2 usually ships 7-19 days
23 173-9797 200 PSI pump and motor assembly $766.70 1 usually ships 7-19 days
24 173-0934 Coupler 1/4 hex $10.78 1 usually ships 1-5 days
25 273-7665 Manifold assembly $162.25 1 usually ships 7-19 days
26 173-2569 Washer .77 x 1.31 flat stainless steel $7.32 1 usually ships 7-19 days
27 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
28 273-7674 200 psi brass valve (OBSOLETE) $134.20 1 usually ships 7-19 days
