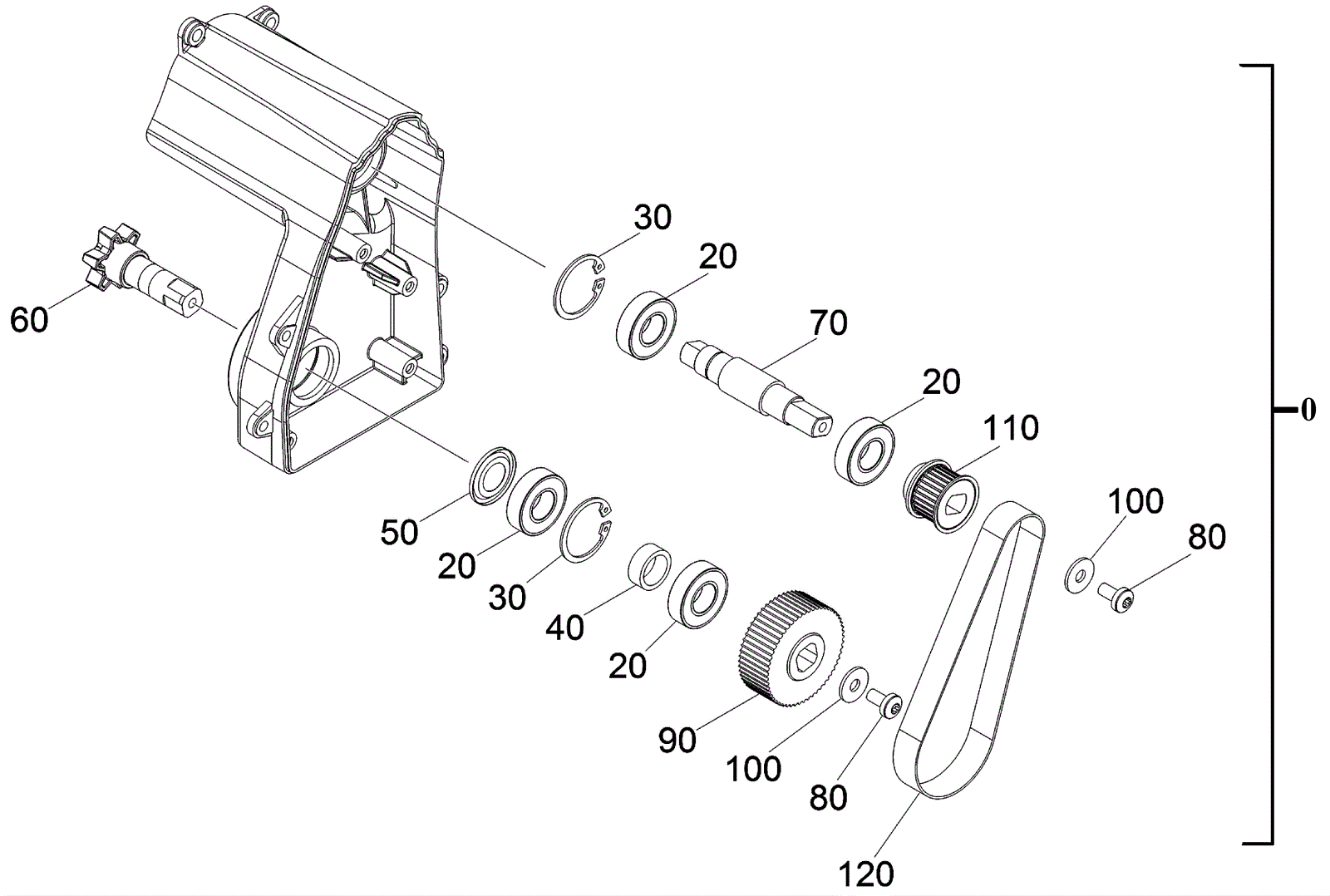

BR 35/12 Gear Case Replacement Assembly

#PartDescriptionPriceReqNotesAvailability
0 273-8457 Gear case $646.00 1 (includes 20,30,40,50,60,70,80,90,100,110,and 120) usually ships 7-19 days
20 273-5827 Ball bearing $32.50 4 usually ships 7-19 days
30 273-5828 Locking ring $2.46 2 usually ships 7-19 days
40 173-6284 Spacer sleeve $10.40 1 usually ships 7-19 days
50 173-6283 Joint ring $4.73 1 usually ships 7-19 days
60 173-6282 Driveshaft $85.51 1 usually ships 7-19 days
70 273-9060 Gear shaft $89.50 1 usually ships 7-19 days
80 273-9061 Screw M6 x 12-A2/70-ISO7045 $28.30 2 usually ships 7-19 days
90 173-6285 Belt pulley $40.20 1 usually ships 7-19 days
100 173-5899 Washer $0.90 2 usually ships 7-19 days
110 273-9062 Belt pulley $65.50 1 usually ships 7-19 days
120 273-8466 Belt $74.51 1 usually ships 7-19 days
