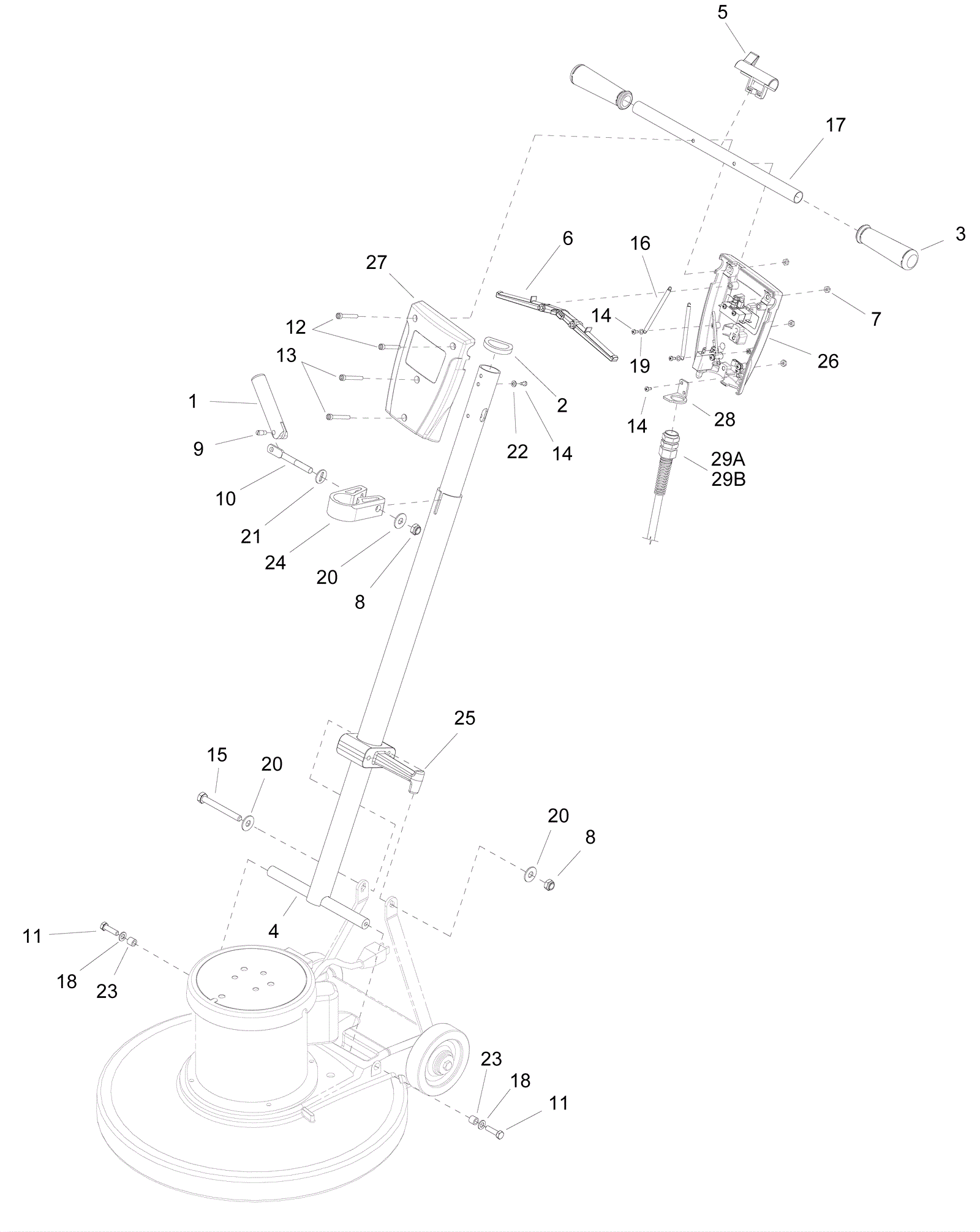

Bolt 20 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4685 Handle adjustment bar $59.95 1 usually ships 7-19 days
2 273-4044 Bumper $9.02 1 usually ships 7-19 days
3 173-0371 Handle grip $12.56 2 usually ships 7-19 days
4 173-2781 Handle (OBSOLETE) $184.80 1 usually ships 7-19 days
5 173-4689 Safety handle lock $20.35 1 usually ships 7-19 days
6 173-4690 Switch lever $19.58 2 usually ships 7-19 days
7 999-0950 Nut M6-1 hex aluminum $1.32 4 ships same day
8 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
9 173-4693 Pivot pin $4.36 1 usually ships 7-19 days
10 173-4694 Handle adjustment rod $4.95 1 ships same day
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
12 999-1336 Screw M6-1 x 45mm socket head $0.99 3 ships same day
13 999-1337 Screw M6 x 50mm socket head $0.99 2 ships same day
14 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.00 4 ships same day
15 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 1 ships same day
16 173-4699 Spring $17.82 2 usually ships 7-19 days
17 173-4700 Handle grip tube $37.07 1 usually ships 7-19 days
18 999-1267 Washer M8 flat zinc $0.99 2 ships same day
19 173-7429 Washer M4 flat $0.99 2 usually ships 1-5 days
20 173-2548 Washer M10 x 30mm plated $3.70 3 ships same day
21 173-4701 Bearing washer (OBSOLETE) $2.12 1 usually ships 7-19 days
22 173-4706 Washer M5 shakeproof $1.39 1 usually ships 7-19 days
23 173-4095 Spacer (OBSOLETE) $0.99 2 usually ships 7-19 days
24 173-7430 Handle clamp $89.10 1 usually ships 7-19 days
26 273-4045 Rear handle housing $61.60 1 usually ships 7-19 days
27 273-4046 Front handle housing $59.95 1 usually ships 7-19 days
28 273-4047 Strain relief bracket (OBSOLETE) $9.90 1 usually ships 7-19 days
29A 273-4048 Strain relief $67.66 1 (120V ONLY) usually ships 7-19 days
29B 273-5011 Small metal strain relief $70.95 1 (230V ONLY) usually ships 7-19 days
