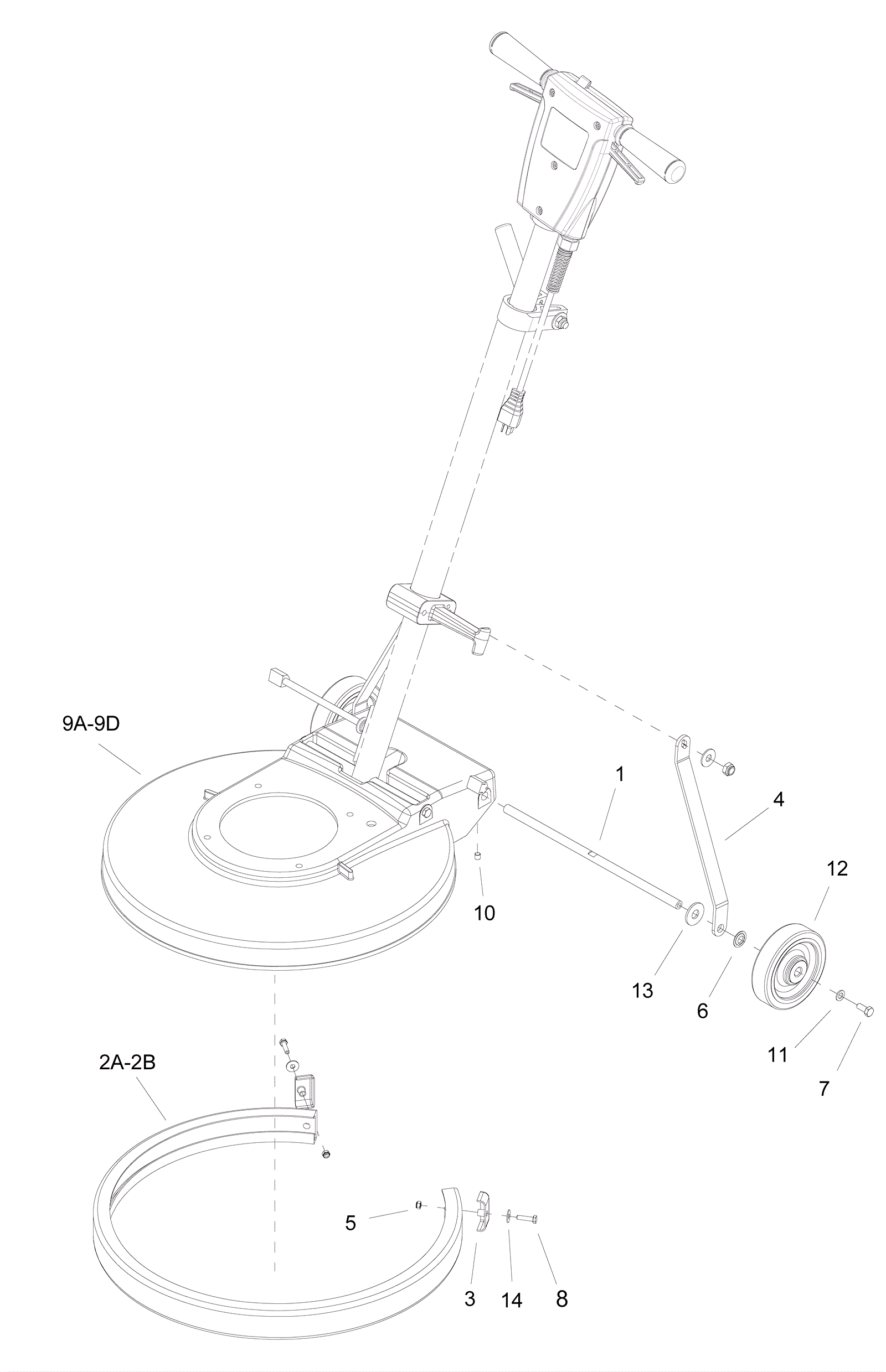

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
173-2829
|
Main axle |
$35.20
|
1 |
|
usually ships 7-19 days |
2A |
173-2832
|
17 inch extrusion bumper (OBSOLETE) |
$99.00
|
|
(BP17X, BPD17X, U17X)
U17X) |
usually ships 7-19 days |
2B |
173-2833
|
20 inch extrusion bumper (OBSOLETE) |
$121.00
|
|
(BP20X, UDS20X, BPD20X, U20X, SPT20X) |
usually ships 7-19 days |
3 |
173-2836
|
Fixing ram protection |
$13.64
|
2 |
|
usually ships 7-19 days |
4 |
173-2841
|
Handle adjustment link |
$17.63
|
2 |
|
usually ships 7-19 days |
5 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
2 |
|
ships same day |
6 |
173-2834
|
Nut 1/2 flat push |
$11.33
|
2 |
|
usually ships 7-19 days |
7 |
273-4041
|
Screw M8 1.25 x 20mm |
$7.37
|
2 |
|
usually ships 7-19 days |
8 |
273-4042
|
Screw M6 1 x 22mm |
$0.99
|
2 |
|
usually ships 7-19 days |
9B |
273-7708
|
17 inch deck (gray) |
$297.00
|
1 |
(U17X) |
usually ships 7-19 days |
9C |
273-4043
|
20 inch deck (blue) |
$204.13
|
1 |
(SPT20X, BP20X, BPD20X)
BPD20X) |
usually ships 7-19 days |
9D |
273-7743
|
20 inch deck (gray) |
$124.30
|
1 |
(U20X, UDS20X) |
usually ships 7-19 days |
10 |
999-1339
|
Screw M8-1.25 x 8mm set cup point |
$0.99
|
1 |
|
ships same day |
11 |
999-1267
|
Washer M8 flat zinc |
$0.99
|
2 |
|
ships same day |
12 |
173-4664
|
Wheel (gray) |
$37.40
|
2 |
|
usually ships 7-19 days |
13 |
999-0972
|
Washer M14 flat |
$2.75
|
2 |
|
ships same day |
14 |
999-1261
|
Washer M6 flat stainless steel |
$0.99
|
2 |
|
ships same day |
