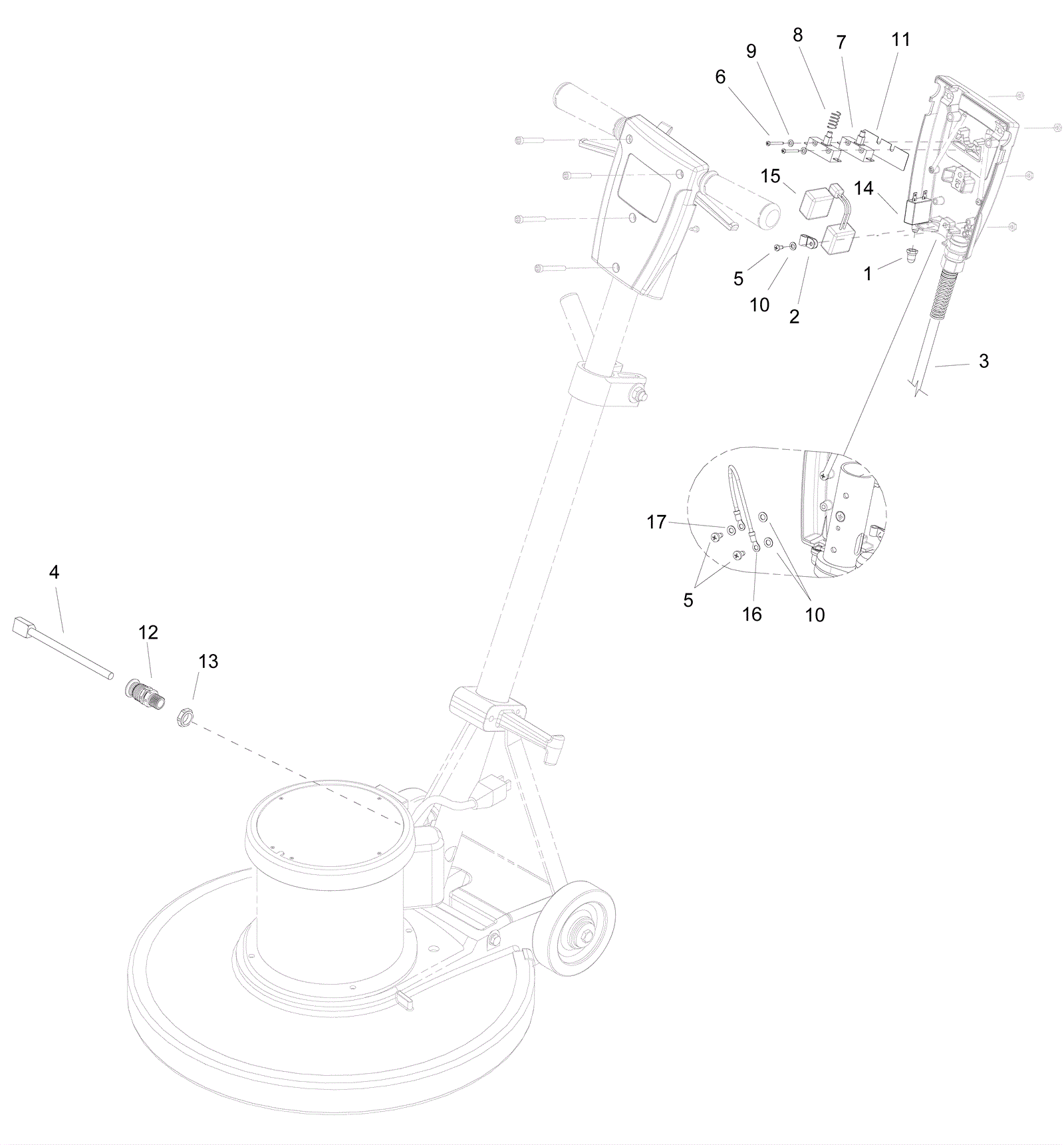

Bolt 20 Electrical-230V Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
2 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 1 usually ships 7-19 days
4 173-2835 Interconnect cord (OBSOLETE) $47.52 1 usually ships 7-19 days
5 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.00 3 ships same day
6 173-4704 Screw M3-.5 x 40mm pan head thread forming $7.26 2 usually ships 7-19 days
7 173-6460 25amp switch SPDT service kit $63.81 2 usually ships 7-19 days
8 173-0923 Spring $2.00 1 usually ships 7-19 days
9 173-4705 Washer M4 shakeproof $1.21 2 usually ships 7-19 days
10 173-4706 Washer M5 shakeproof $1.39 3 usually ships 7-19 days
11 173-4765 Barrier sheet $3.15 1 usually ships 7-19 days
12 173-2845 Strain relief $20.35 1 usually ships 7-19 days
13 173-2846 Spacer $4.36 1 usually ships 7-19 days
15 173-9861 Filter assembly $67.10 1 usually ships 1-5 days
16 173-9862 Wire $7.21 1 usually ships 1-5 days
17 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
18 273-4047 Strain relief bracket (OBSOLETE) $9.90 1 usually ships 7-19 days
19 273-5011 Small metal strain relief $70.95 1 usually ships 7-19 days
