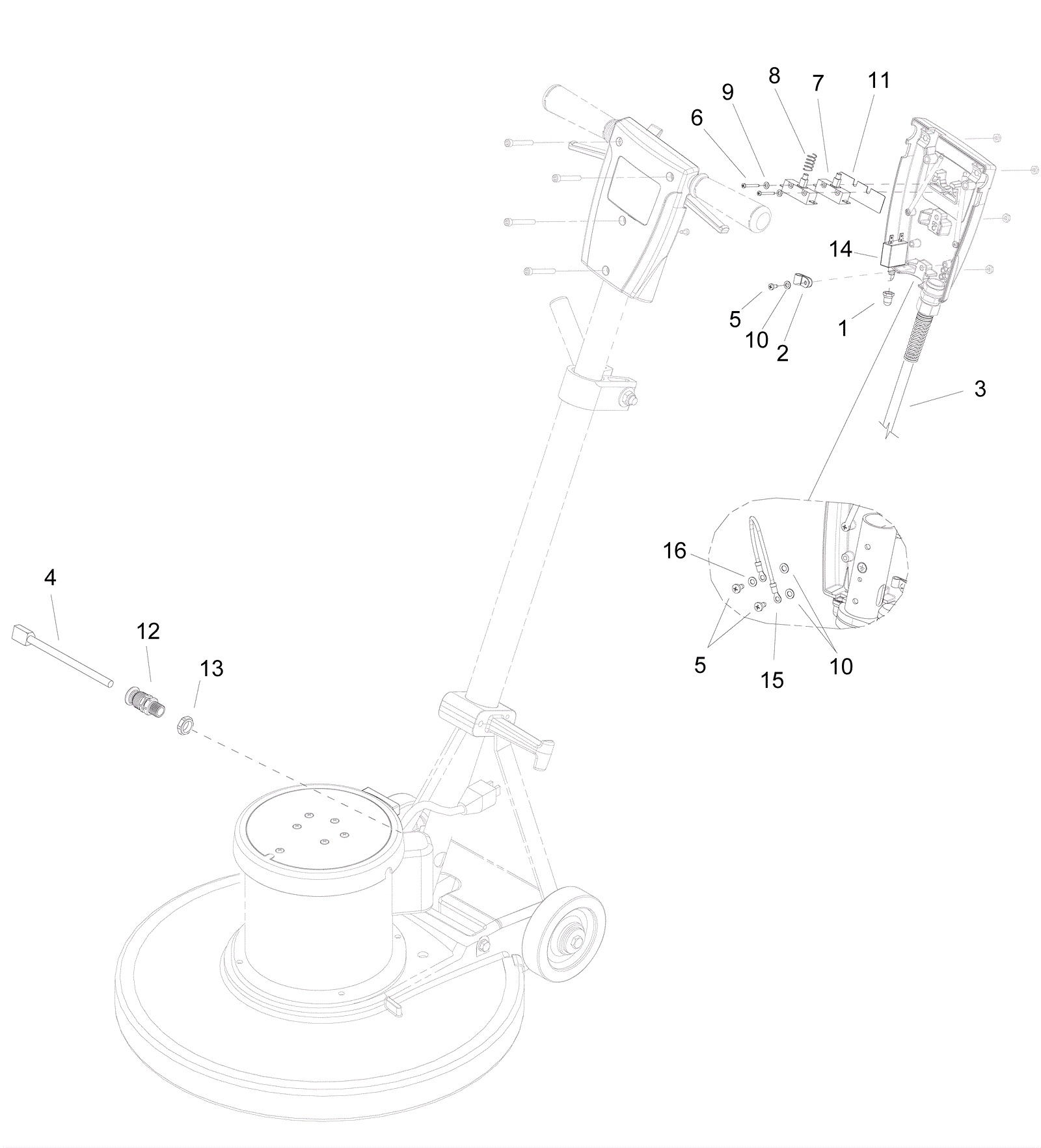

Bolt 20 Electrical-120V Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 12-17 days
2 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 1 usually ships 11-15 days
3 273-0290 50 foot cord set (yellow) $338.98 1 usually ships 11-15 days
4 173-2835 Interconnect cord (OBSOLETE) $47.52 1 usually ships 11-15 days
5 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.33 3 ships same day
6 173-4704 Screw M3-.5 x 40mm pan head thread forming $7.77 2 usually ships 11-15 days
7 173-6460 25amp switch SPDT service kit $68.27 2 usually ships 11-15 days
8 173-0923 Spring (OBSOLETE) $2.00 1 usually ships 11-15 days
9 173-4705 Washer M4 shakeproof $1.41 2 usually ships 11-15 days
10 173-4706 Washer M5 shakeproof $1.39 3 usually ships 11-15 days
11 173-4765 Barrier sheet $3.67 1 usually ships 11-15 days
12 173-2845 Strain relief $21.78 1 usually ships 11-15 days
13 173-2846 Spacer $5.08 1 usually ships 11-15 days
14 173-7427 14amp circuit breaker $49.43 1 usually ships 11-15 days
15 173-9862 Wire $7.71 1 usually ships 1-5 days
16 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
