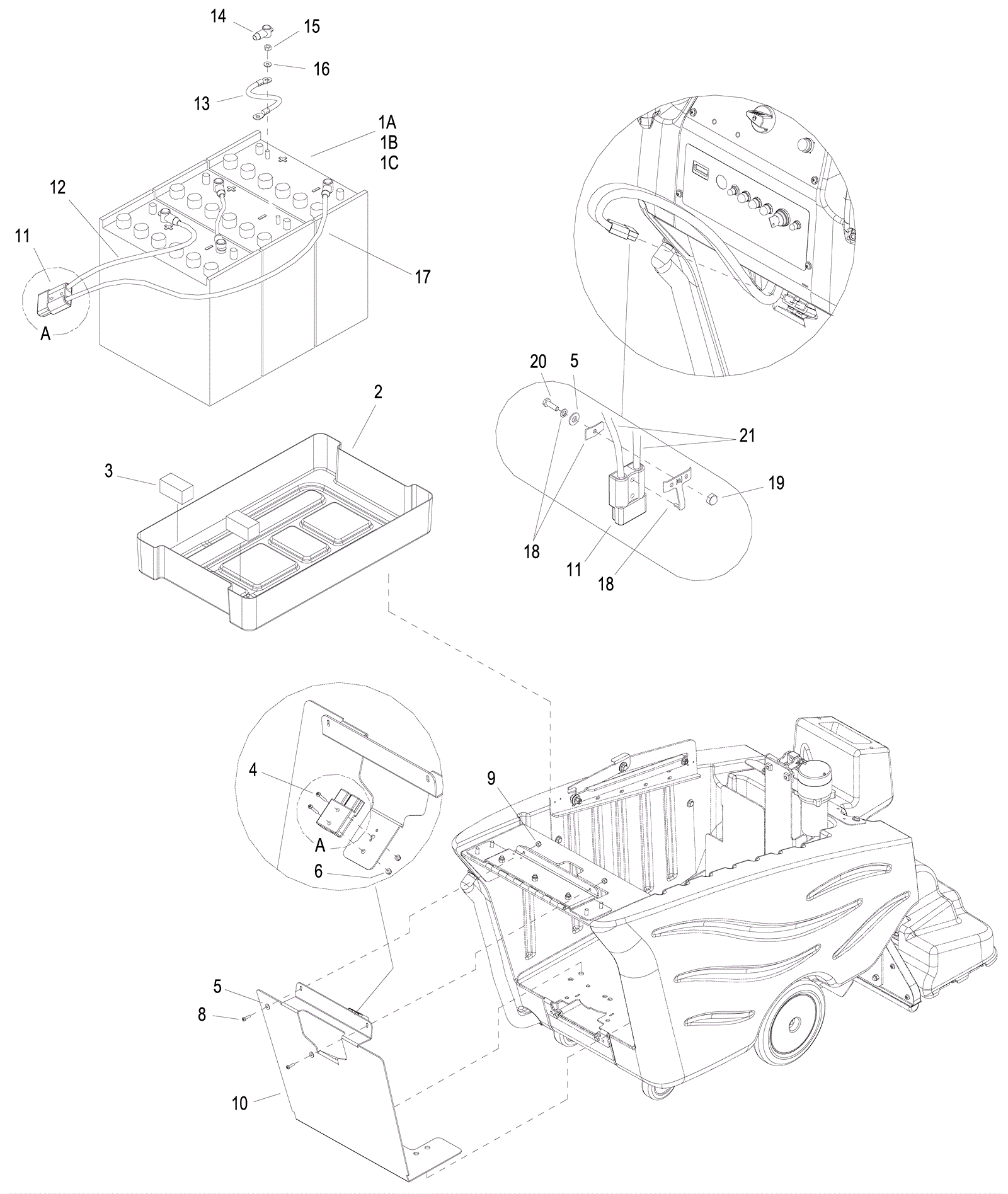

Commodore Duo (Gray) Wiring Battery-Deluxe Assembly

#PartDescriptionPriceReqNotesAvailability
1a 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
1b 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
1c 162-0047 12V 215Ah AGM battery (Group J185) $907.50 3 ships same day
2 273-6859 Battery tray $454.30 1 usually ships 1-5 days
3 273-6860 Battery block $25.85 2 usually ships 1-5 days
4 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
5 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
8 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
9 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
10 273-6861 Battery back plate $172.70 1 usually ships 1-5 days
11 173-1537 Adjustment bumper $53.79 2 usually ships 1-5 days
12 273-5992 Wire 4 x 25 inch ring style (red) $62.70 1 usually ships 7-19 days
13 273-5764 Ring style jumper cable (black) $9.90 2 usually ships 7-19 days
14 173-3311 Insulated rubber terminal boot $3.70 6 usually ships 7-19 days
15 999-0895 Nut 5/16-18 flex type lock cadmium plated $1.43 6 ships same day
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
17 273-5993 Wire 4 x 30 inch ring style (black) $78.65 1 usually ships 7-19 days
18 273-0049 Cable clamp kit $10.40 1 usually ships 7-19 days
19 999-0961 Nut 10-32 acorn nickel plated $0.99 1 ships same day
20 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
21 173-3237 4 GA black wire 40 inch $79.20 2 usually ships 1-5 days
N/S 993-0438 36V 25 AMPS SMART CHARGER,50A GRAY PLUG $695.00 1 (NOT SHOWN FOR WET CELL BATTERIES) usually ships 1-3 days
N/S 273-5995 36V 21amp battery charger for AGM batteries $719.54 1 (NOT SHOWN FOR AGM BATTERIES) ships same day
