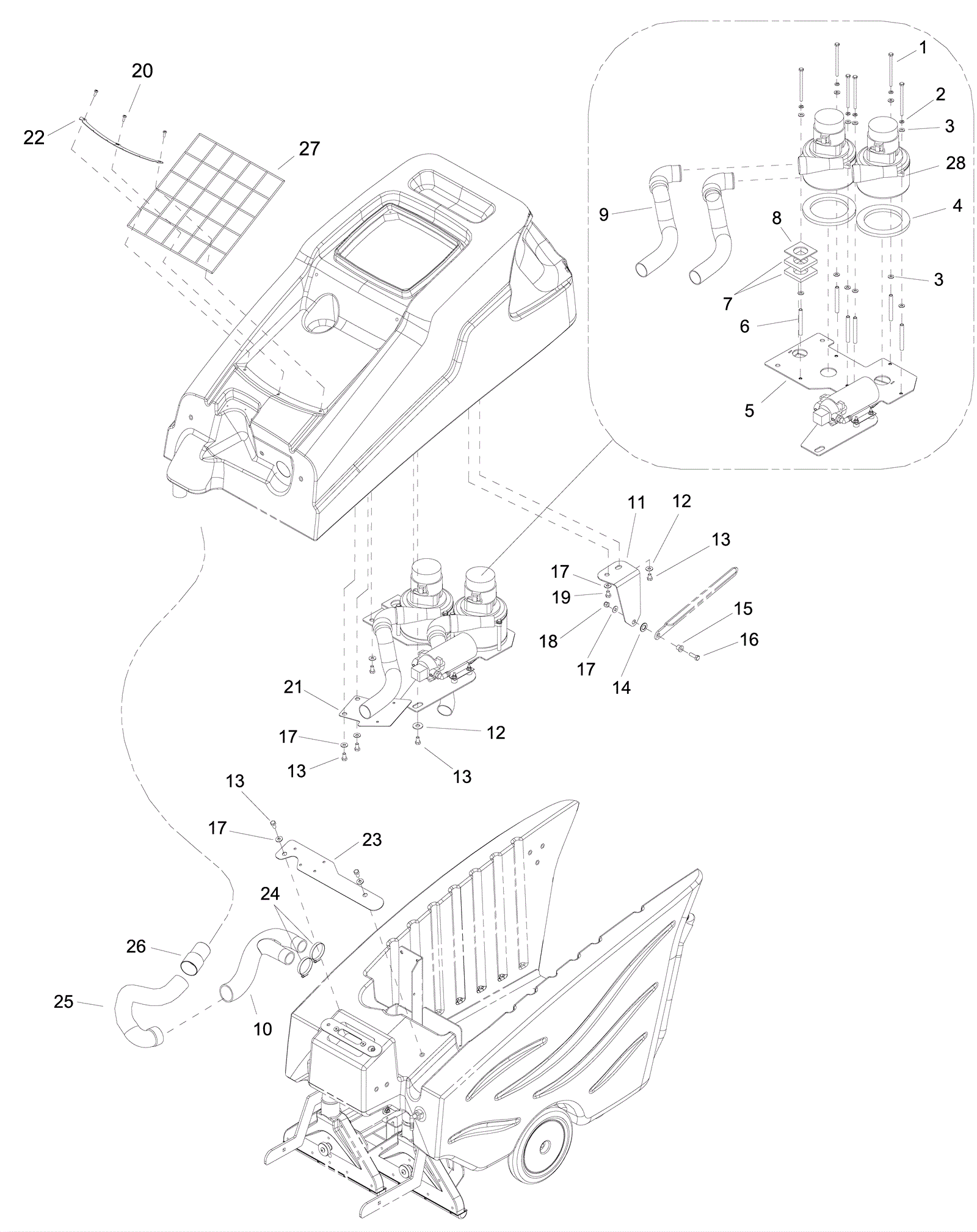

Commodore Duo (Gray) Deluxe Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0249 Screw 1/4-20 x 4 1/4 hex head cap $5.35 6 usually ships 1-5 days
2 999-1049 Washer 1/4 split lock zinc plated $0.99 6 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 12 ships same day
4 173-5227 Vacuum motor gasket $6.53 2 usually ships 14-22 days
5 273-0250 Pump bracket $258.94 1 usually ships 1-5 days
6 273-0251 Spacer $28.60 6 usually ships 1-5 days
7 273-0252 Vacuum plate gasket $11.19 2 usually ships 14-22 days
8 273-0253 Vacuum containment plate $12.12 1 usually ships 14-22 days
9 173-5335 Vacuum hose 1 1/2 x 14 inch $86.52 2 usually ships 14-22 days
10 273-0245 Coupler $161.25 1 usually ships 1-5 days
11 273-0248 Pivot bracket $28.60 1 usually ships 1-5 days
12 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
13 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 7 ships same day
14 173-3964 Thrust washer $6.89 1 ships same day
15 173-3116 Flanged bearing $9.06 1 usually ships 14-22 days
16 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 ships same day
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
19 999-1207 Screw 5/16-18 x 2 1/2 hex head stainless steel $2.42 1 ships same day
20 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
21 273-0243 Vacuum exhaust bracket $26.51 1 usually ships 1-5 days
22 273-0247 Net bracket $25.08 1 usually ships 1-5 days
23 273-4799 BRKT, VACUUM JUNCTION C $51.15 1 usually ships 14-22 days
24 189-0329 Hose clamp $31.44 2 usually ships 1-5 days
25 273-6839 Vacuum hose assembly black $62.38 1 usually ships 1-5 days
26 173-1256 1 1/2 inch vacuum hose cuff (black) $6.66 1 ships same day
27 173-8237 Cargo net with hooks $98.87 1 usually ships 14-22 days
28a 173-0403 36V 3 stage vacuum motor $208.33 2 usually ships 14-22 days
28b 173-4105 Carbon brush $13.07 1 usually ships 14-22 days
