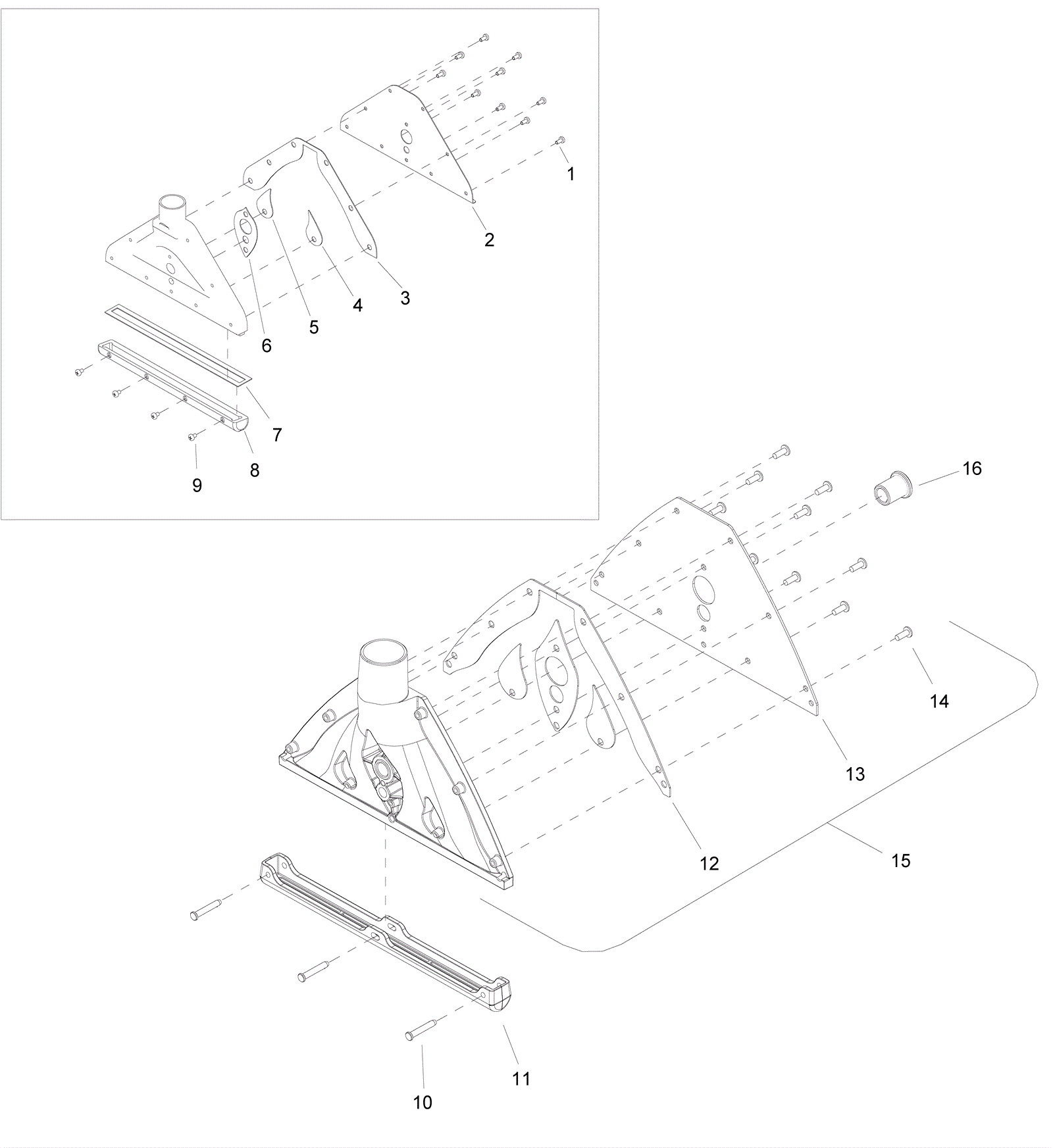

Commodore Duo (Gray) Vaccum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 ships same day
2 273-6253 Vacuum shoe cover (OBSOLETE) $60.13 usually ships 1-5 days
3 273-6254 Gasket $43.78 usually ships 7-19 days
4 273-6255 Gasket $10.95 usually ships 7-19 days
5 273-6256 Gasket $10.95 ships same day
6 273-5267 Gasket $24.20 usually ships 7-19 days
7 273-6258 Gasket $19.58 usually ships 7-19 days
8 173-6137 Vacuum shoe wiper $172.70 usually ships 1-5 days
9 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel $0.99 ships same day
10 273-5736 Clevis pin $11.33 (COMDU: 10086120000126 COMXDU: 10086140000168) ships same day
11 273-6471 13 inch wiper with gasket (OBSOLETE) $128.70 (COMDU: 10086120000126 COMXDU: 10086140000168) usually ships 7-19 days
12 273-0224 Gasket assembly $80.30 (COMDU: 10086120000126 COMXDU: 10086140000168) usually ships 7-19 days
13 N/A Not available Call for price (COMDU: 10086120000126 COMXDU: 10086140000168) usually ships 3-26 days
14 273-0225 Screw M6 x 16mm pan head stainless steel $0.99 (COMDU: 10086120000126 COMXDU: 10086140000168) usually ships 1-5 days
15 273-6268 13 inch vacuum shoe $489.50 (COMDU: 10086120000126 COMXDU: 10086140000168) usually ships 7-19 days
16 273-6529 Bronze bushing $46.75 usually ships 7-19 days
