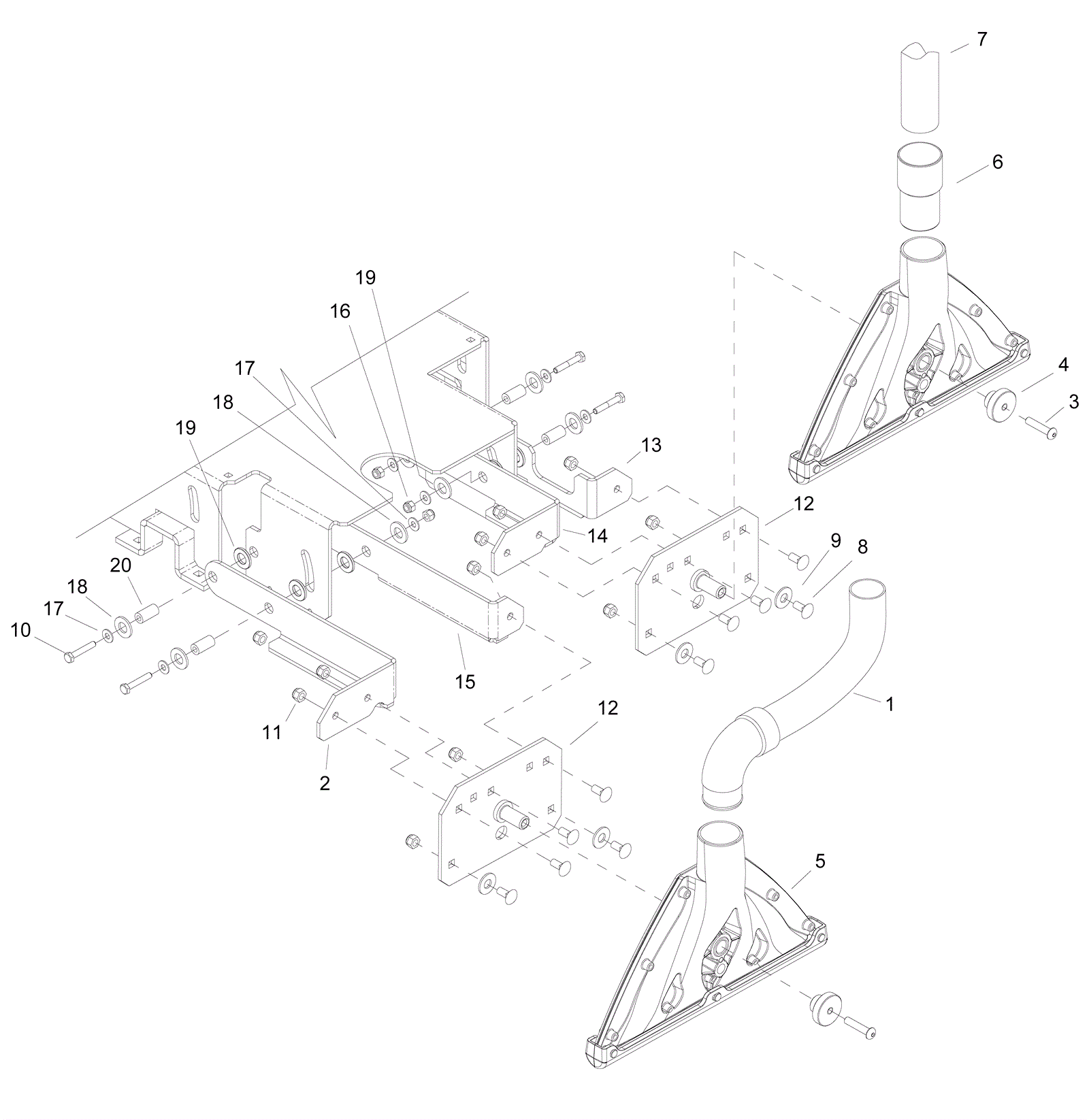

Commodore Duo (Gray) Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5428 Vacuum hose $85.92 1 usually ships 14-22 days
2 273-0218 Right hand outer bracket $59.44 1 usually ships 1-5 days
3 173-3967 Bolt 5/16-18 x 1 1/2 shoulder cap $8.47 2 usually ships 14-22 days
4 173-3184 Knob $51.67 2 ships same day
5 273-0219 13 inch vac shoe with wiper $688.55 2 usually ships 14-22 days
6 173-1256 1 1/2 inch vacuum hose cuff (black) $6.66 1 ships same day
7 273-0220 22 inch hose $46.02 1 usually ships 14-22 days
8 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 10 ships same day
9 173-3985 Washer 7/16 flat stainless steel $1.41 4 usually ships 14-22 days
10 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 4 ships same day
11 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 10 ships same day
12 273-6460 Vacuum mounting plate $142.42 2 usually ships 14-22 days
13 273-0221 Left hand outer bracket $39.44 1 usually ships 1-5 days
14 273-0222 Left hand inner bracket $50.84 1 usually ships 1-5 days
15 273-0223 Right hand inner bracket $52.73 1 usually ships 1-5 days
16 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
17 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
18 173-2815 Washer 33/64 x 1 thrust $8.36 8 usually ships 14-22 days
19 173-3963 Washer 1/2 thrust $7.83 8 usually ships 14-22 days
20 173-8299 Bearing $11.19 4 usually ships 1-5 days
