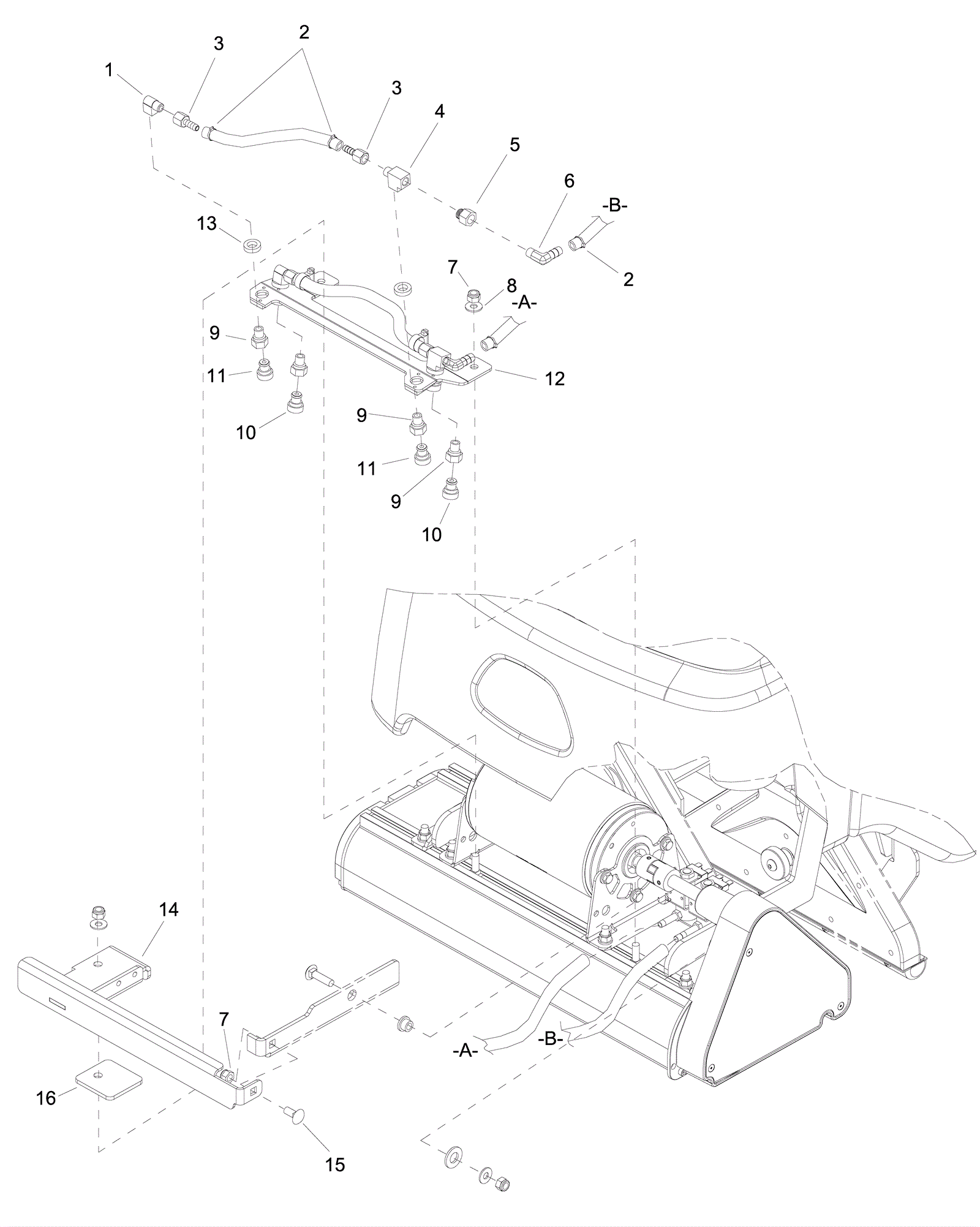

Commodore Duo (Gray) Spray Jets Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2223 90 degree elbow $20.13 2 usually ships 14-22 days
2 173-2741 Hose clamp $2.76 6 usually ships 14-22 days
3 173-9751 Hosebarb 1/8 x 1/4 inch $17.53 4 usually ships 14-22 days
4 273-5716 1/8 inch street run tee nickel plated thread $12.24 2 usually ships 14-22 days
5 173-2672 Adapter 1/8 x 1/8 $8.36 1 usually ships 14-22 days
6 273-5715 Hosebarb 1/8 x 1/4 inch $20.01 2 usually ships 14-22 days
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
8 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
9 173-2210 Jet body $9.24 4 ships same day
10 173-5419 Spray nozzle (rear) $56.02 2 ships same day
11 173-8641 Promax jet 11001 $23.07 2 ships same day
12 273-0210 Dual bracket $120.05 1 usually ships 1-5 days
13 173-2555 Washer 7/16 x 3/16 inch rubber $17.66 4 usually ships 14-22 days
14 273-0211 Bumper bracket $93.50 1 usually ships 1-5 days
15 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 1 ships same day
16 273-0212 Spacer plate $12.24 1 usually ships 1-5 days
