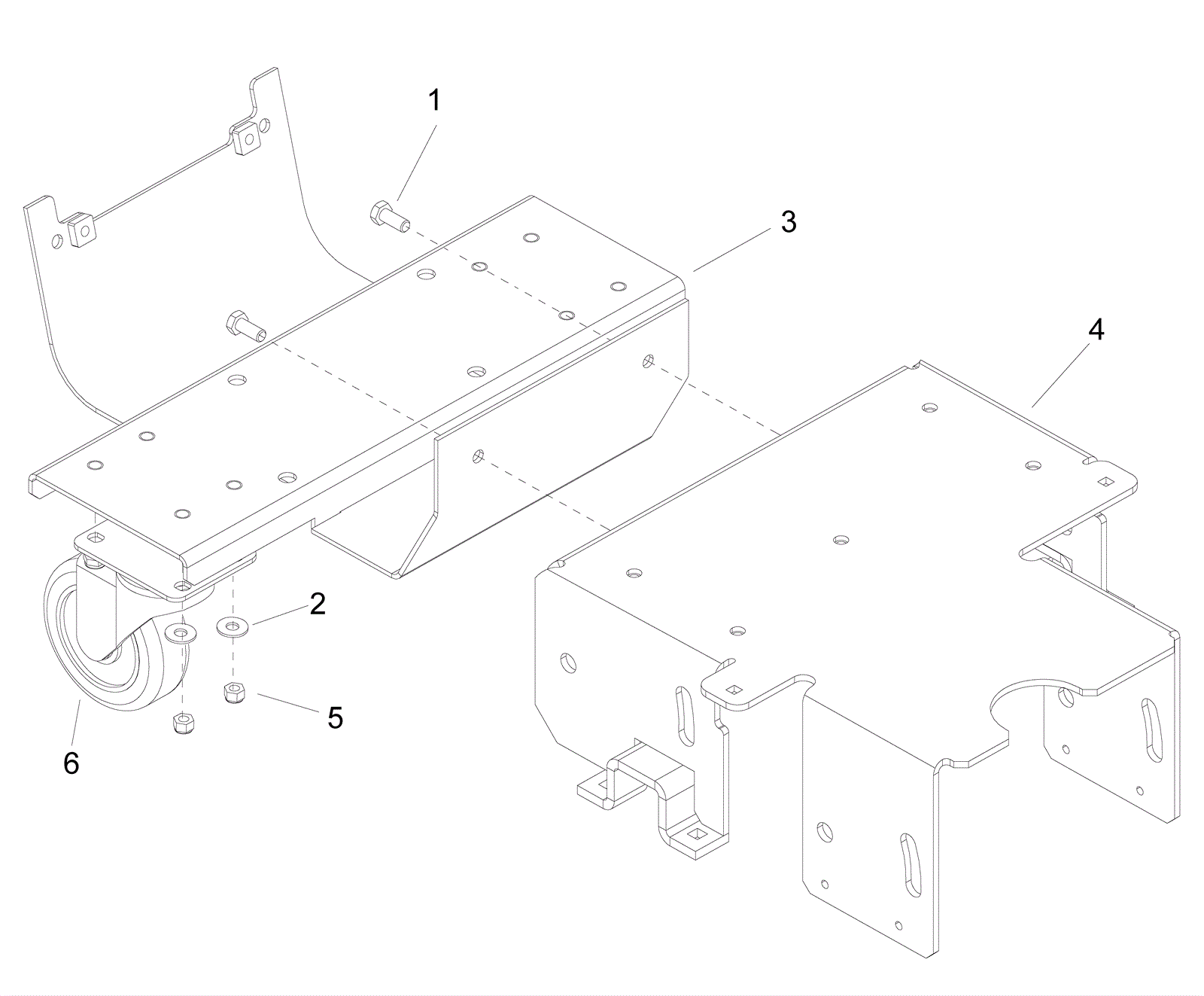

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
8 |
|
ships same day |
3 |
273-0163
|
Caster frame mount bracket |
$207.90
|
1 |
|
usually ships 1-5 days |
4 |
273-0164
|
Transaxle frame |
$309.10
|
1 |
|
usually ships 1-5 days |
5 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
8 |
|
ships same day |
6 |
273-0165
|
4 inch swivel caster |
$91.81
|
2 |
|
usually ships 11-15 days |
