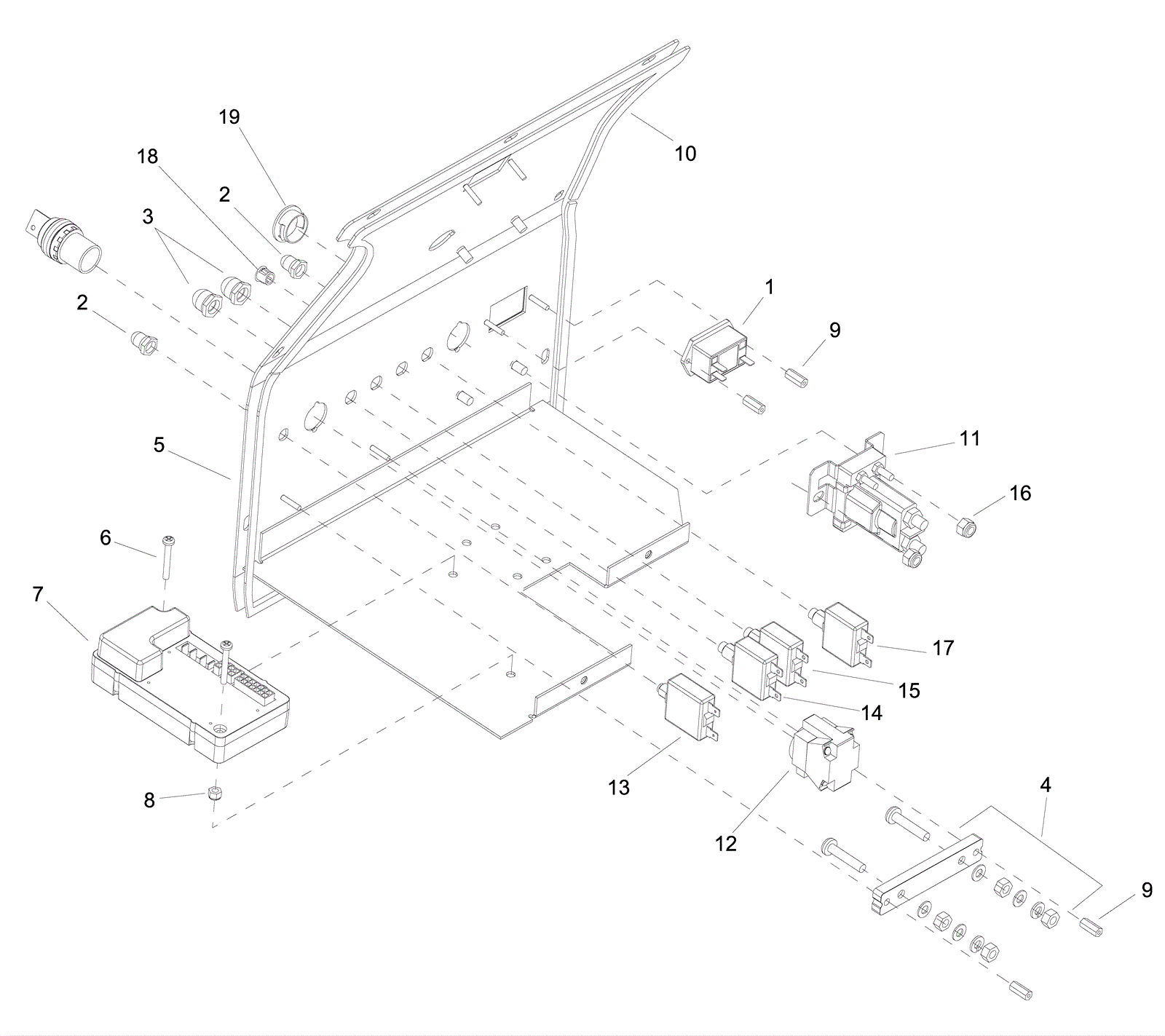

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1160
|
LED hour meter |
1 |
|
|
2 |
189-0312
|
3/8 inch circuit breaker boot |
2 |
|
|
3 |
173-1522
|
3/8 inch circuit breaker boot |
2 |
|
|
4 |
173-4647
|
Shunt mounting block |
1 |
|
|
5 |
273-0258
|
Control panel |
1 |
|
|
6 |
173-0407
|
Screw 8-32 X 1.12 pan head machine |
2 |
|
|
7 |
273-1132
|
I drive controller |
1 |
|
|
8 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
2 |
|
|
9 |
173-1520
|
Nylon standoff |
4 |
|
|
10 |
173-4650
|
Gasket |
3 |
|
|
11 |
173-1872
|
100amp relay |
1 |
|
|
12 |
173-8560
|
Master key switch |
1 |
|
|
13 |
991-1624
|
3amp circuit breaker |
1 |
|
|
14 |
991-1632
|
25amp circuit breaker |
1 |
|
|
15 |
991-1629
|
35amp circuit breaker |
1 |
|
|
16 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
17 |
273-6190
|
22amp breaker |
1 |
|
|
18 |
273-6189
|
Dome plug |
1 |
|
|
19 |
173-1514
|
Hole plug |
1 |
|
|
