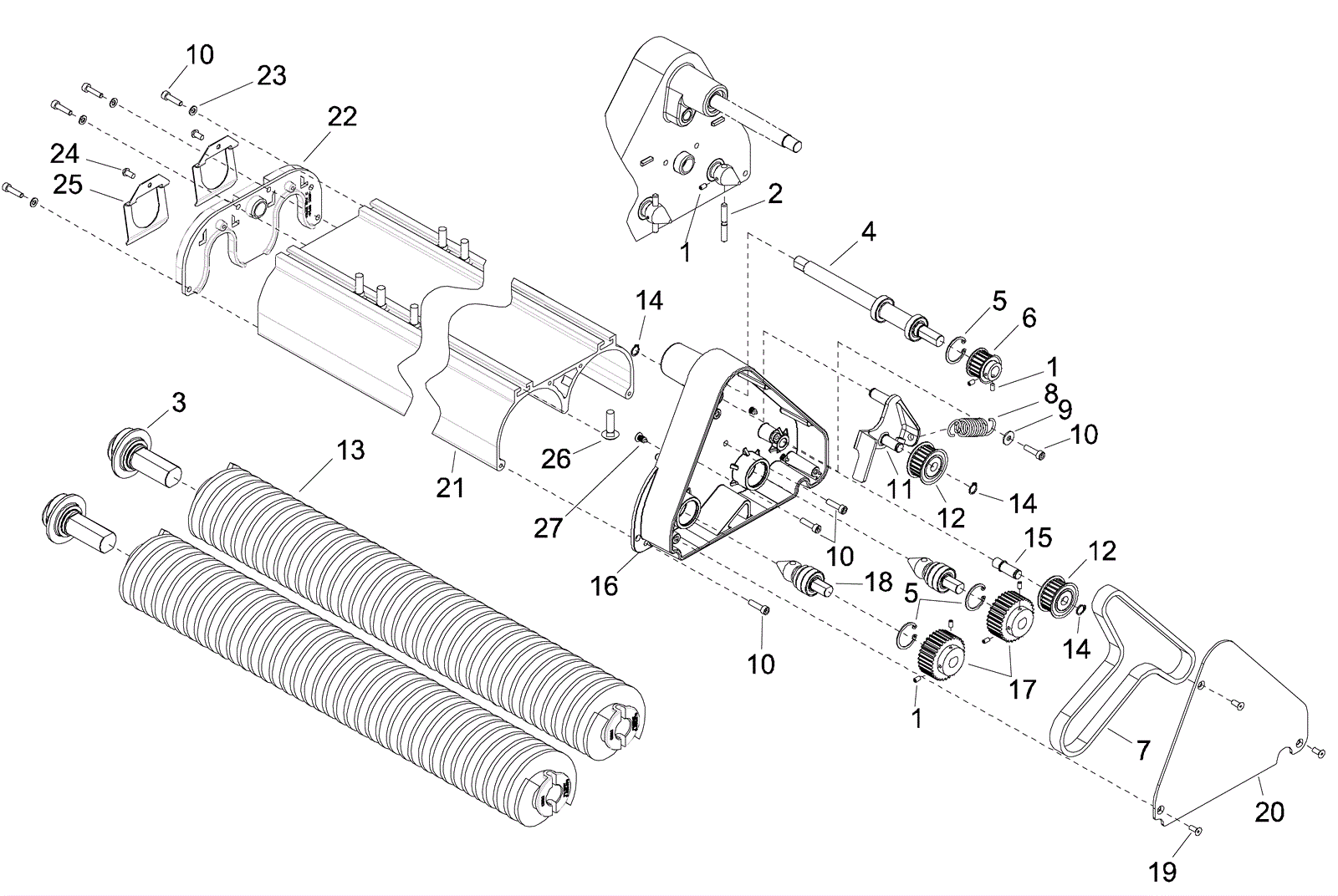

Commodore Duo (Gray) Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5518 Screw M4-.7 x 8mm set cup point $1.43 8 ships same day
2 273-5586 Brush drive shaft $8.58 2 ships same day
3 273-5587 Brush end cap shaft assembly $75.36 2 ships same day
4 273-4768 Shaft asm, drive 20" $157.30 1 usually ships 7-19 days
5 173-4181 Snap ring $8.03 3 usually ships 7-19 days
6 273-5589 Pulley $41.03 1 usually ships 7-19 days
7 173-1026 Belt 2S 5MM HTD $80.30 1 ships same day
8 273-5590 Tensioner spring $13.09 1 usually ships 7-19 days
9 273-5591 Washer M5 flat stainless steel $1.82 1 usually ships 7-19 days
10 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $4.24 4 ships same day
11 273-5593 Tensioner arm bracket $44.22 1 usually ships 7-19 days
12 273-5594 Pulley assembly $128.70 2 usually ships 7-19 days
13 173-5427 20 inch brush $194.73 2 usually ships 7-19 days
14 173-8999 External snap ring $1.10 3 usually ships 7-19 days
15 273-5596 Tensioner shaft $23.76 1 usually ships 7-19 days
16 273-6537 Brush drive housing assembly $157.30 1 usually ships 7-19 days
17 273-6275 Pulley $78.65 2 usually ships 7-19 days
18 273-5599 Brush drive shaft assembly $92.96 2 ships same day
19 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel $0.99 4 ships same day
20 273-5600 Brush drive cover plate $104.71 1 usually ships 7-19 days
21 273-6276 Brush clip housing $336.60 1 usually ships 1-5 days
22 273-5602 Brush clip housing $84.70 1 usually ships 1-5 days
23 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
24 273-5604 Screw $0.99 2 ships same day
25 273-6748 Brush spring clip $14.63 2 usually ships 7-19 days
26 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 10 ships same day
27 273-0141 Plug $5.20 3 usually ships 1-5 days
