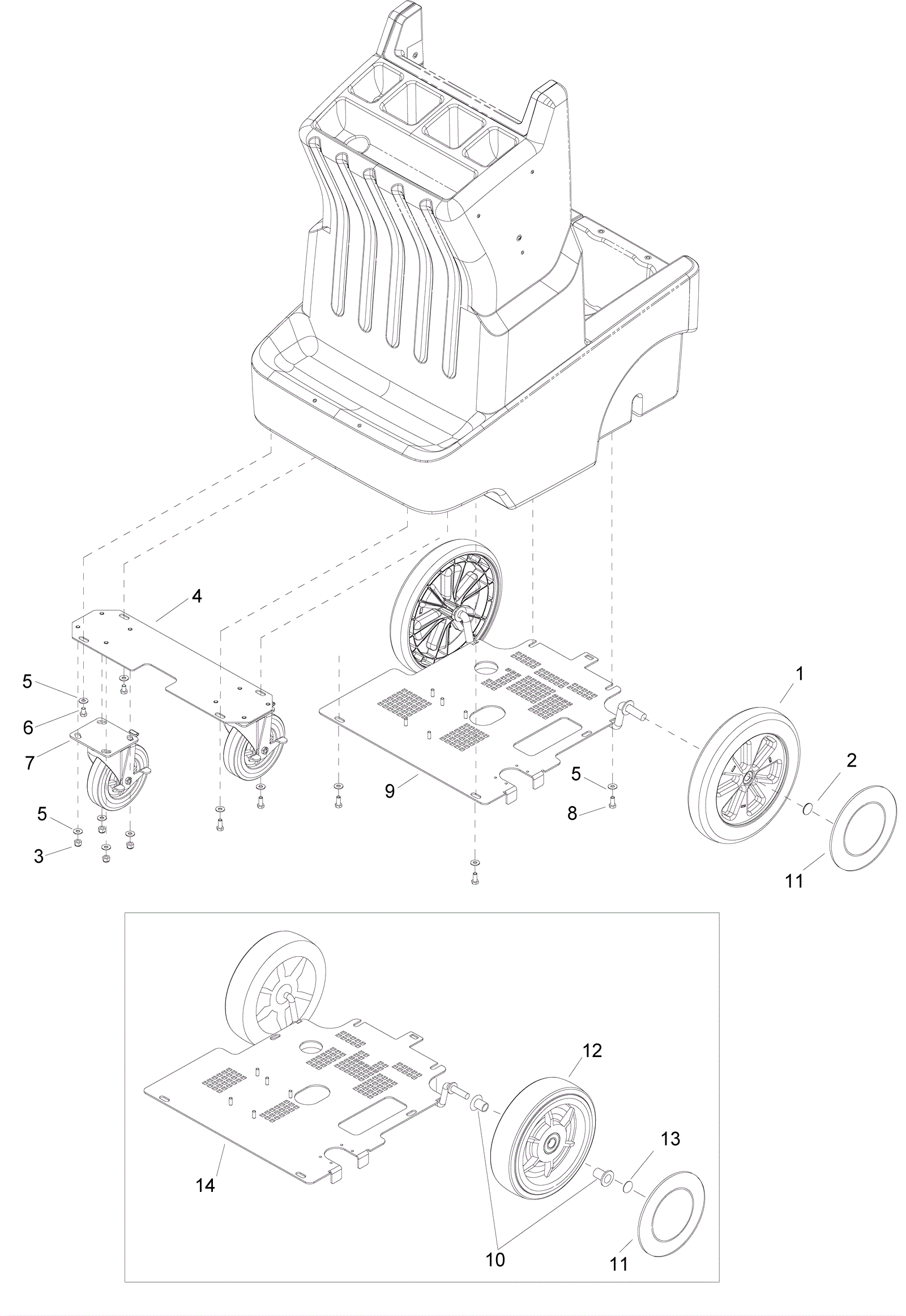

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5308
|
12 inch wheel |
2 |
(10070800000036) |
|
2 |
173-2064
|
Axle cap |
2 |
(10070800000036) |
|
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
4 |
173-5699
|
Caster mounting plate |
1 |
|
|
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
16 |
|
|
6 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
7 |
273-3089
|
CASTER, 6" DIA. 4.5 SWVL, YLW (OBSOLETE) |
2 |
|
|
8 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
4 |
|
|
9 |
273-3090
|
Frame pump wheels |
1 |
(10070800000036) |
|
10 |
173-5701
|
Flanged bushing |
4 |
|
|
11 |
273-3529
|
Hubcap (black) |
2 |
|
|
12 |
173-5308
|
12 inch wheel |
2 |
|
|
13 |
173-2667
|
Nut 1/2 starlock push-on |
2 |
|
|
14 |
173-5700
|
Mounting frame |
1 |
|
|
