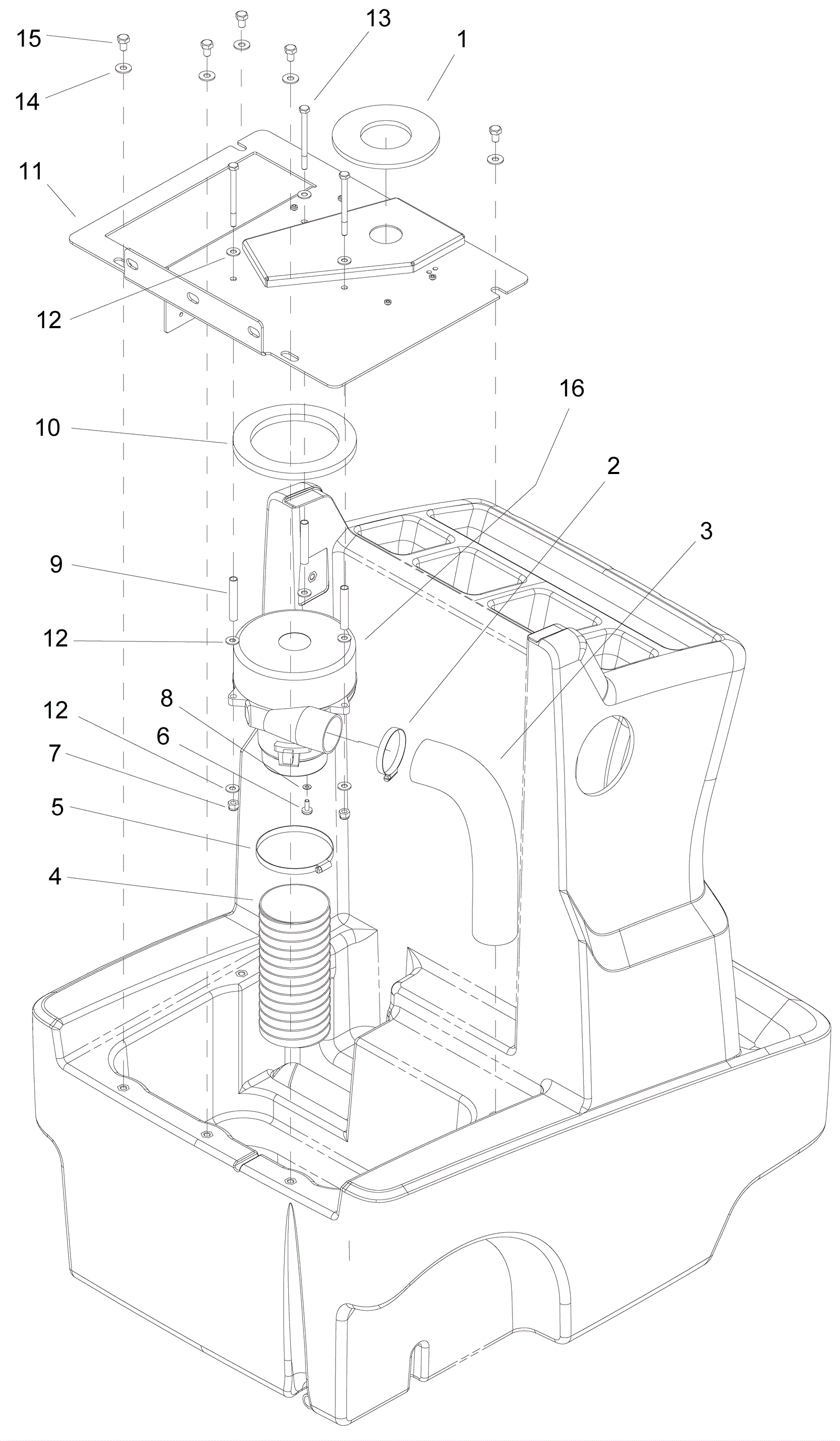

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5694
|
Gasket |
1 |
|
|
2 |
997-2007
|
Hose clamp |
1 |
|
|
3 |
173-4854
|
17 inch vacuum exhaust hose |
1 |
|
|
4 |
173-5695
|
7 inch vent hose |
1 |
|
|
5 |
173-2242
|
Hose clamp |
1 |
|
|
6 |
173-2711
|
Screw 10-32 x 1/2 ground |
1 |
|
|
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
8 |
999-0311
|
Washer #10 external star lock zinc plated |
1 |
|
|
9 |
173-5696
|
Spacer |
3 |
|
|
10 |
173-5227
|
Vacuum motor gasket |
1 |
|
|
11 |
173-5697
|
Vacuum motor cover |
1 |
|
|
12 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
9 |
|
|
13 |
999-0362
|
Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated |
3 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
15 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
5 |
|
|
16 |
173-5698
|
120V vacuum motor |
1 |
|
|
N/S |
273-4028
|
Carbon brush set (OBSOLETE) |
4 |
|
|
