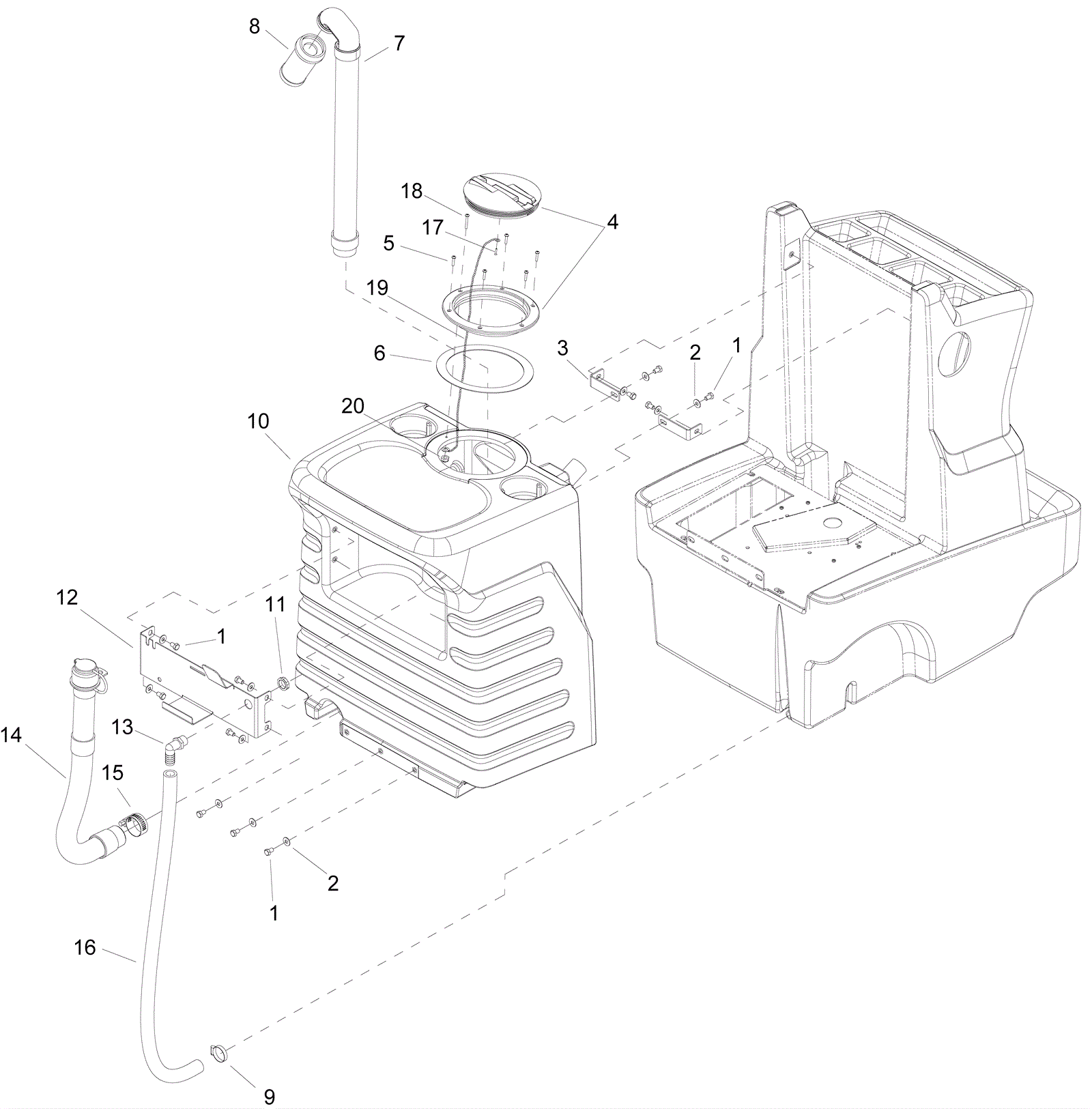

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
11 |
|
|
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
11 |
|
|
3 |
173-5688
|
Tank mount bracket |
1 |
|
|
5 |
999-1141
|
Screw 8 x 3/4 pan head phillips zinc plated |
5 |
|
|
6 |
173-8585
|
Tank lid gasket |
1 |
|
|
7 |
173-5689
|
Stand pipe assembly |
1 |
|
|
8 |
173-5336
|
Float cage assembly |
1 |
|
|
9 |
173-1079
|
Hose clamp (OBSOLETE) |
1 |
|
|
10 |
273-0928
|
TANK, REC EURO BLK |
1 |
|
|
11 |
173-5691
|
Nut 1/2 nickel plated thread plastic |
1 |
|
|
12 |
173-5692
|
Utility mounting bracket |
1 |
|
|
13 |
173-5693
|
90 degree hosebarb 1/2 MPT x 3/4 |
1 |
|
|
14 |
273-3535
|
Drain hose (yellow) |
1 |
|
|
15 |
997-2007
|
Hose clamp |
1 |
|
|
16 |
173-5660
|
Clear hose 3/4 ID x 30 inch |
1 |
|
|
17 |
173-6099
|
Screw 6 x 1/2 sheet metal stainless steel |
1 |
|
|
18 |
999-1603
|
Screw 8-32 x 1 flat head phillips SS |
1 |
|
|
19 |
173-9162
|
Stainless steel bead chain #10 x 10 inch |
1 |
|
|
20 |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
1 |
|
|
