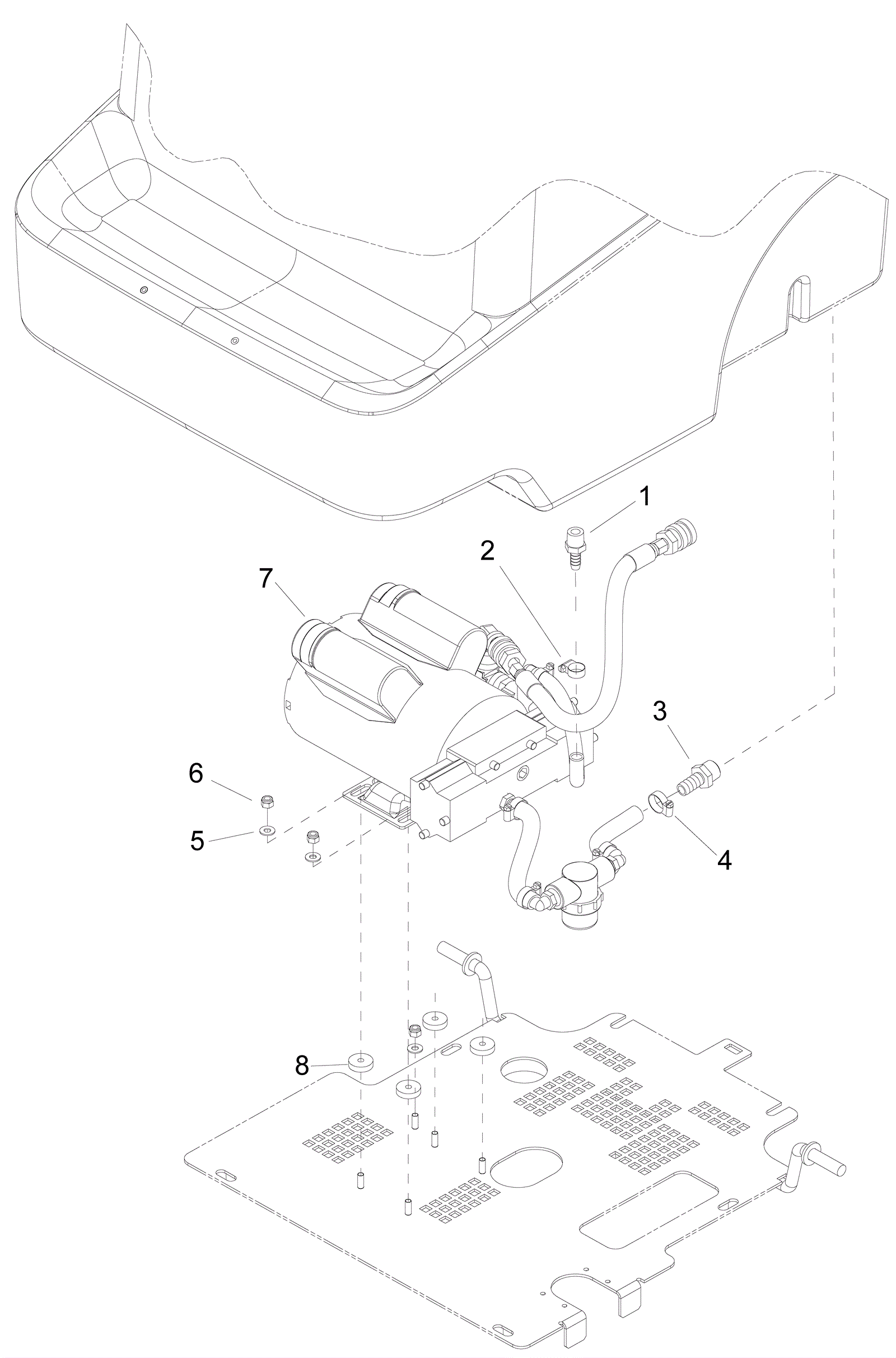

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-9160
|
Nylon hosebarb |
1 |
|
|
2 |
173-2741
|
Hose clamp |
1 |
|
|
3 |
173-3396
|
Hosebarb |
1 |
|
|
4 |
173-1821
|
Hose clamp |
1 |
|
|
5 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
5 |
|
|
6 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
|
7 |
173-5686
|
115V 700PSI pump assembly |
1 |
(COMPLETE) |
|
8 |
273-0639
|
Washer |
4 |
|
|
