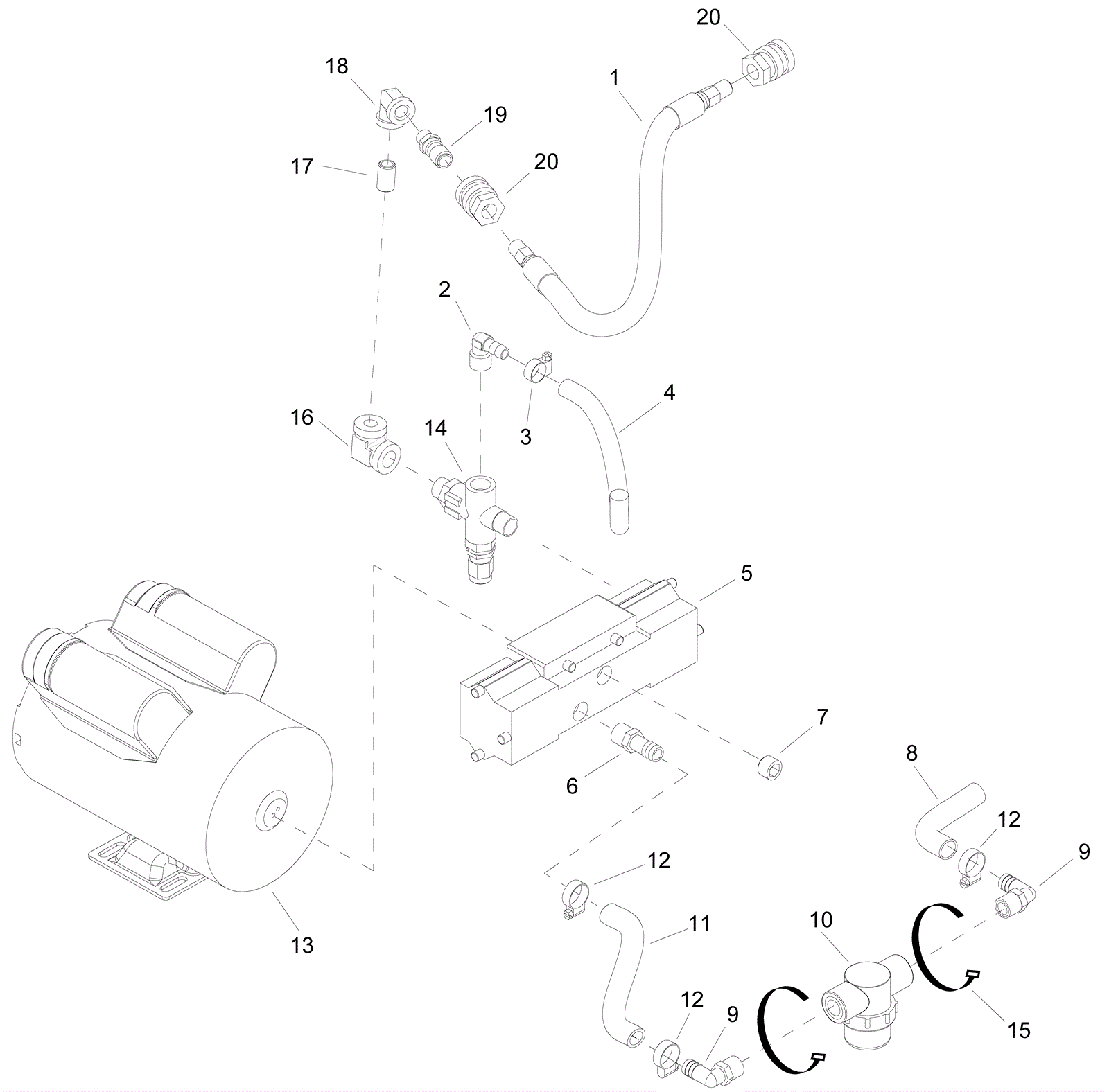

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5674
|
30 inch pulse hose |
1 |
|
|
2 |
204-0041
|
Fitting |
1 |
|
|
3 |
173-2741
|
Hose clamp |
1 |
|
|
4 |
173-5680
|
Braided hose 3/8 ID x 16 inch |
1 |
|
|
5 |
173-5302
|
Pump |
1 |
|
|
6 |
173-3056
|
Hosebarb 3/8 x 1/2 inch |
1 |
|
|
7 |
173-5681
|
3/8 socket head plug |
4 |
|
|
8 |
173-5682
|
Braided hose 1/2 ID x 14 inch |
1 |
|
|
9 |
173-1072
|
Hosebarb 3/8 x 1/2 inch |
2 |
|
|
10 |
173-5305
|
Screen filter |
1 |
|
|
11 |
173-5683
|
Braided hose 1/2 ID x 4-3/4 inch |
1 |
|
|
12 |
173-1821
|
Hose clamp |
3 |
|
|
13 |
173-5684
|
115V 700PSI motor (OBSOLETE) |
1 |
|
|
14 |
173-5685
|
700PSI unloader |
1 |
|
|
15 |
273-3820
|
11 inch cable tie |
5 |
|
|
16 |
173-0933
|
Elbow 3/8 x 1/4 |
1 |
|
|
17 |
189-4213
|
1/4 inch nipple |
1 |
|
|
18 |
173-4943
|
Elbow 1/4 x 1/4 |
1 |
|
|
19 |
173-5648
|
Quick disconnect nipple |
1 |
|
|
20 |
173-5663
|
Quick disconnect coupler |
2 |
|
|
