| # | Part | Description |
Req | Notes | Availability |
|---|

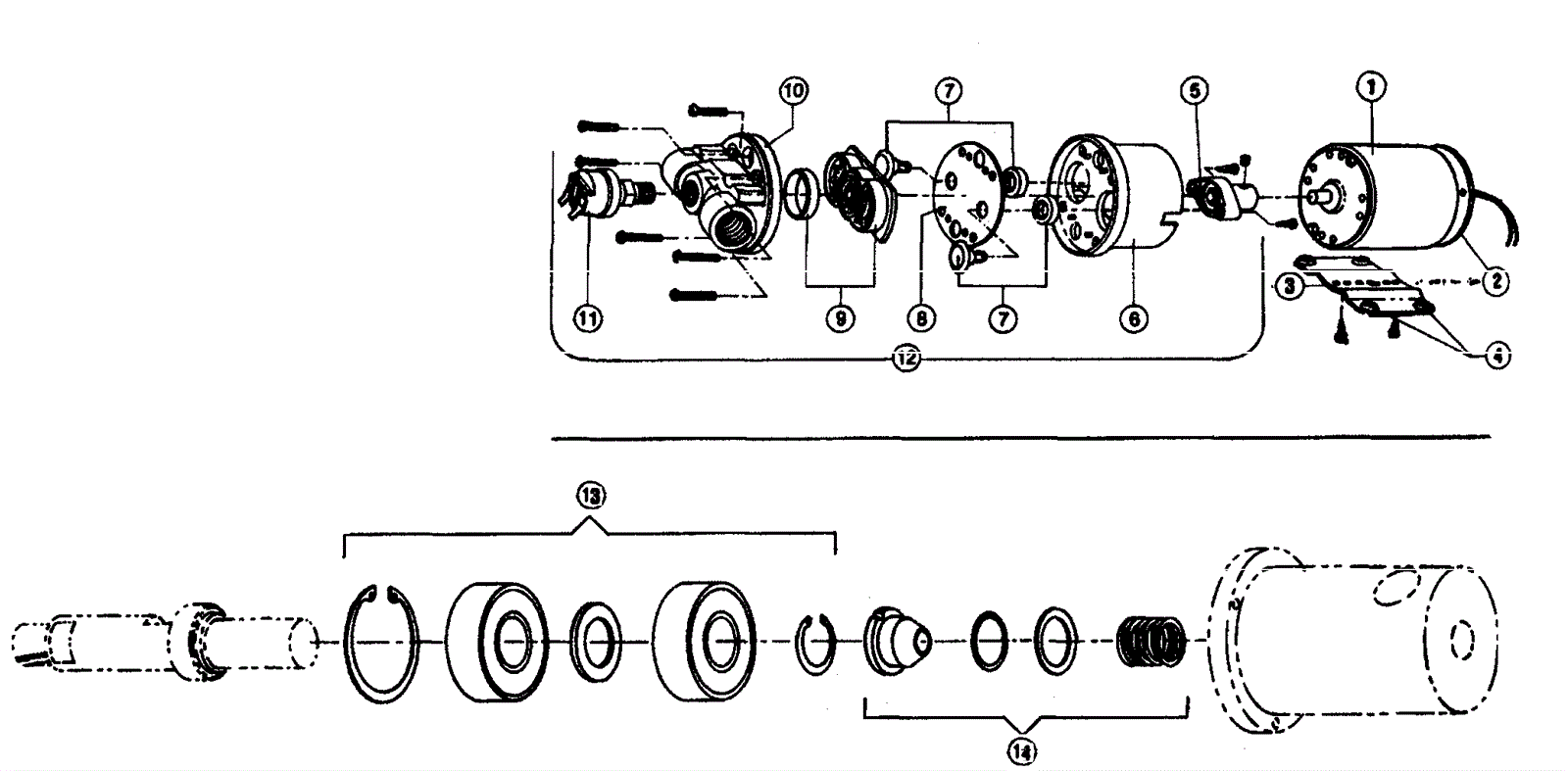

1 |
173-2886
|
Flojet pump motor 115V |
1 |
|
usually ships 1-5 days |
2 |
173-4345
|
End bell rectifier (OBSOLETE) |
1 |
|
usually ships 1-5 days |
3 |
373-1561
|
Bracket |
1 |
|
usually ships 14-20 days |
4 |
173-4931
|
Pump base grommet (set) |
1 |
|
usually ships 1-5 days |
5 |
N/A
|
Not available |
1 |
(parts not available seperatly) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
1 |
(parts not available seperatly) |
usually ships 3-26 days |
7 |
N/A
|
Not available |
1 |
(parts not available seperatly) |
usually ships 3-26 days |
8 |
N/A
|
Not available |
1 |
(parts not available seperatly) |
usually ships 3-26 days |
9 |
N/A
|
Not available |
1 |
(parts not available seperatly) |
usually ships 3-26 days |
10 |
173-9024
|
Pump housing (OBSOLETE) |
1 |
|
usually ships 1-5 days |
11 |
173-9025
|
Pressure switch |
1 |
(includes 5-11) |
usually ships 1-5 days |
12 |
173-9026
|
Pump |
1 |
|
usually ships 1-5 days |
13 |
373-1562
|
Bearing assembly |
1 |
|
usually ships 14-20 days |
14 |
373-1563
|
Spring assembly |
1 |
|
usually ships 14-20 days |
