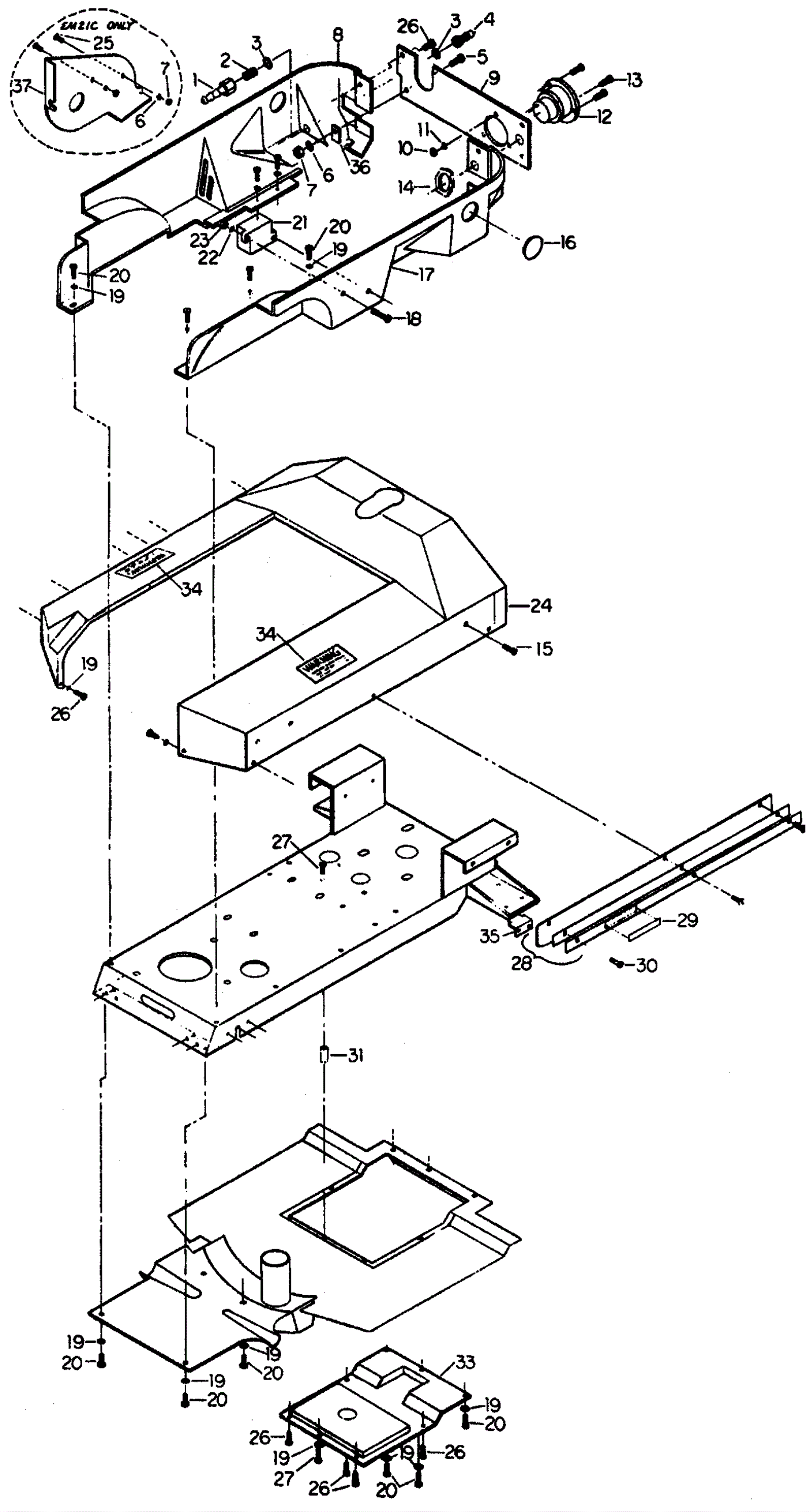

ELECTRA-MATIC Lower Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
1 373-1564 Fitting Call for price 1 usually ships 7-19 days
2 189-4213 1/4 inch nipple $10.95 1 ships same day
3 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
4 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $8.75 1 ships same day
5 173-3883 Bolt 10-32 x 3/4 hex head $0.99 1 usually ships 1-5 days
6 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
7 999-0679 Nut 10-32 hex stainless steel $0.99 2 ships same day
8 373-1565 Right hand panel Call for price 1 usually ships 7-19 days
9 373-1566 Hour meter panel Call for price 1 usually ships 7-19 days
10 999-0195 Nut 6-32 hex plain $0.99 4 ships same day
11 999-0148 Washer #6 external star lock zinc plated $0.99 4 ships same day
12 173-4963 Hour meter 115v $121.24 1 usually ships 1-5 days
13 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
14 N/A Not available Call for price 1 usually ships 3-26 days
15 173-4967 Screw 10-32 x 5/8 flat head (OBSOLETE) $3.11 4 usually ships 1-5 days
16 173-0944 Hole plug 1 1/2 diameter $2.75 1 usually ships 1-5 days
17 373-1567 Left hand panel Call for price 1 usually ships 7-19 days
18 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
19 999-0998 Washer #10 flat stainless steel $0.99 9 ships same day
20 173-4965 Screw 10-32 x 1/2 phan head standard stainless steel $0.99 9 usually ships 1-5 days
21 173-0957 115 Volt terminal block (OBSOLETE) Call for price 1 usually ships 1-5 days
23 999-0308 Nut 8-32 plain $0.99 4 ships same day
24 373-1568 Base Call for price 1 usually ships 7-19 days
25 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 2 ships same day
26 173-2454 Screw 10-3/4 polyfast $1.40 4 ships same day
27 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
28 373-1569 Splash guard assembly Call for price 1 usually ships 7-19 days
29 373-1570 Decal Call for price 1 usually ships 7-19 days
30 173-4964 Screw 1/4-20 x 1 truss head phillips (OBSOLETE) $3.91 3 usually ships 1-5 days
31 373-1571 Spacer Call for price 1 usually ships 7-19 days
32 373-1572 Deflector Call for price 1 usually ships 7-19 days
33 373-1573 Access plate Call for price 1 usually ships 7-19 days
34 373-1574 Warning decal Call for price 2 usually ships 7-19 days
35 373-1575 Lower skirt bracket Call for price 2 usually ships 7-19 days
36 373-1576 Manifold clip Call for price 1 usually ships 7-19 days
37 373-1577 Chain guard Call for price 1 usually ships 7-19 days
