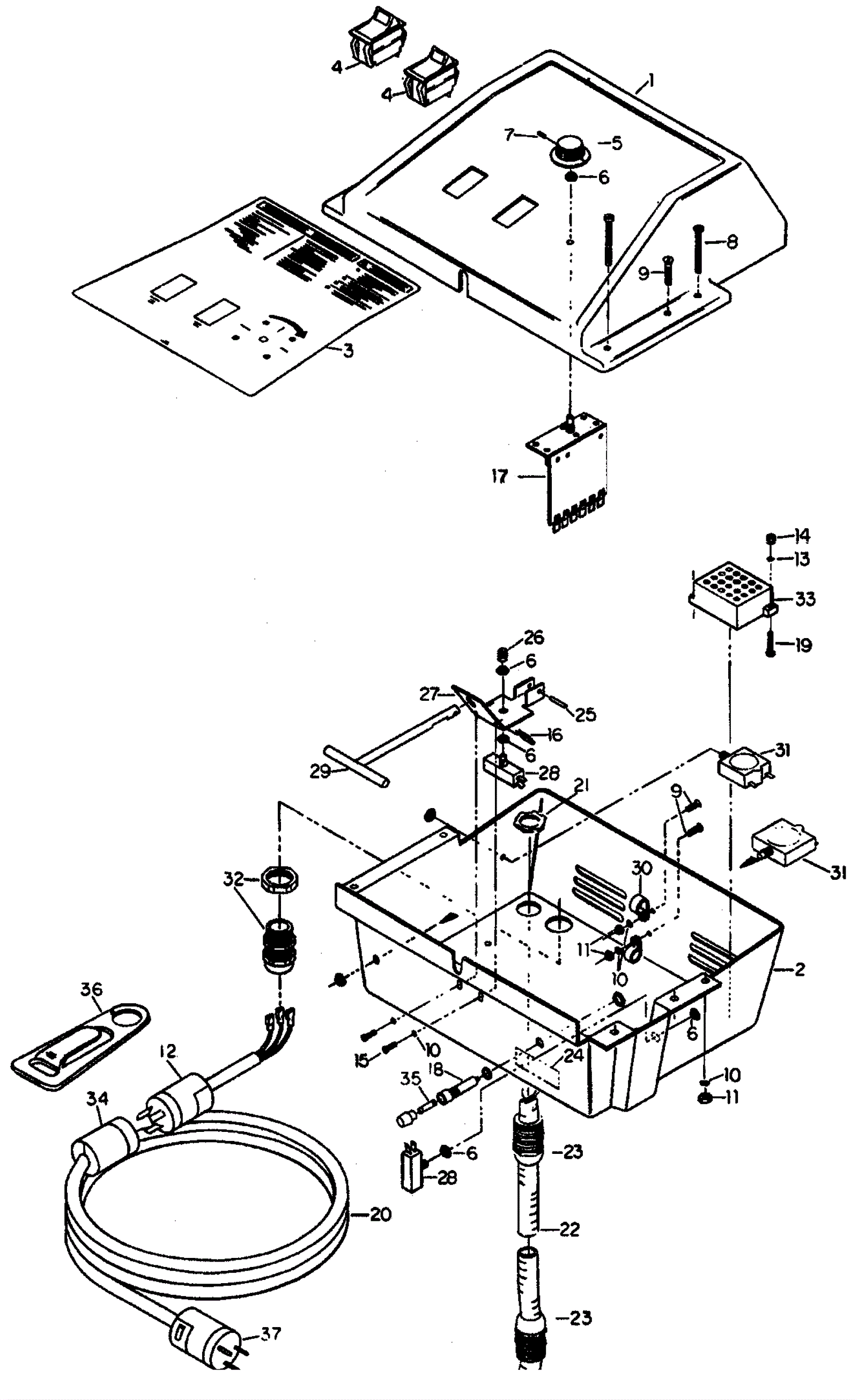

ELECTRA-MATIC Dart PC Control Board

#PartDescriptionPriceReqNotesAvailability
1 373-1578 Top control panel Call for price 1 usually ships 7-19 days
2 373-1579 Bottom control panel Call for price 1 usually ships 7-19 days
3 373-1580 Decal Call for price 1 usually ships 7-19 days
4 173-0703 Illuminated rocker switch 115 volt (OBSOLETE) $47.52 2 usually ships 7-19 days
5 173-4891 Speed control knob $24.24 1 usually ships 1-5 days
6 373-1581 Nut Call for price 1 usually ships 7-19 days
7 173-3898 Screw 8-32 x 1/8 knurled cap $1.39 1 usually ships 1-5 days
8 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel $0.99 4 usually ships 1-5 days
9 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated $0.99 2 ships same day
10 999-0311 Washer #10 external star lock zinc plated $0.99 6 ships same day
11 999-0679 Nut 10-32 hex stainless steel $0.99 4 ships same day
12 373-1582 115V cord Call for price 1 usually ships 7-19 days
14 999-0308 Nut 8-32 plain $0.99 1 ships same day
15 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
16 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 1 usually ships 7-19 days
17 173-4883 Speed control knob 115v $218.90 1 usually ships 1-5 days
18 373-1583 Fuse holder Call for price 1 usually ships 7-19 days
19 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 1 usually ships 1-5 days
20 173-7012 12/3 locking extension cord 75 foot $797.30 1 usually ships 11-24 days
21 N/A Not available Call for price 1 usually ships 3-26 days
22 373-1584 Cord assembly Call for price 1 usually ships 7-19 days
23 373-1585 Strain relief Call for price 2 usually ships 7-19 days
24 173-4876 Replacement label (OBSOLETE) $10.18 1 usually ships 1-5 days
25 173-4876 Replacement label (OBSOLETE) $10.18 1 usually ships 1-5 days
26 373-1586 Compression spring Call for price 1 usually ships 7-19 days
27 373-1587 Handle bracket Call for price 1 usually ships 7-19 days
28 173-2007 SPDT 20A snap action switch $53.68 1 usually ships 7-19 days
29 373-1588 T handle Call for price 1 usually ships 7-19 days
30 173-2099 P clamp (OBSOLETE) $1.39 1 usually ships 7-19 days
31 N/A Not available Call for price 2 usually ships 3-26 days
32 173-1875 strain relief (OBSOLETE) $15.46 1 usually ships 1-5 days
33 173-0957 115 Volt terminal block (OBSOLETE) Call for price 1 usually ships 1-5 days
34 173-2058 cord end $133.10 1 usually ships 1-5 days
35 173-4878 2 amp type MDA fuse $14.41 1 usually ships 1-5 days
37 173-2060 cord end $79.75 1 usually ships 1-5 days
