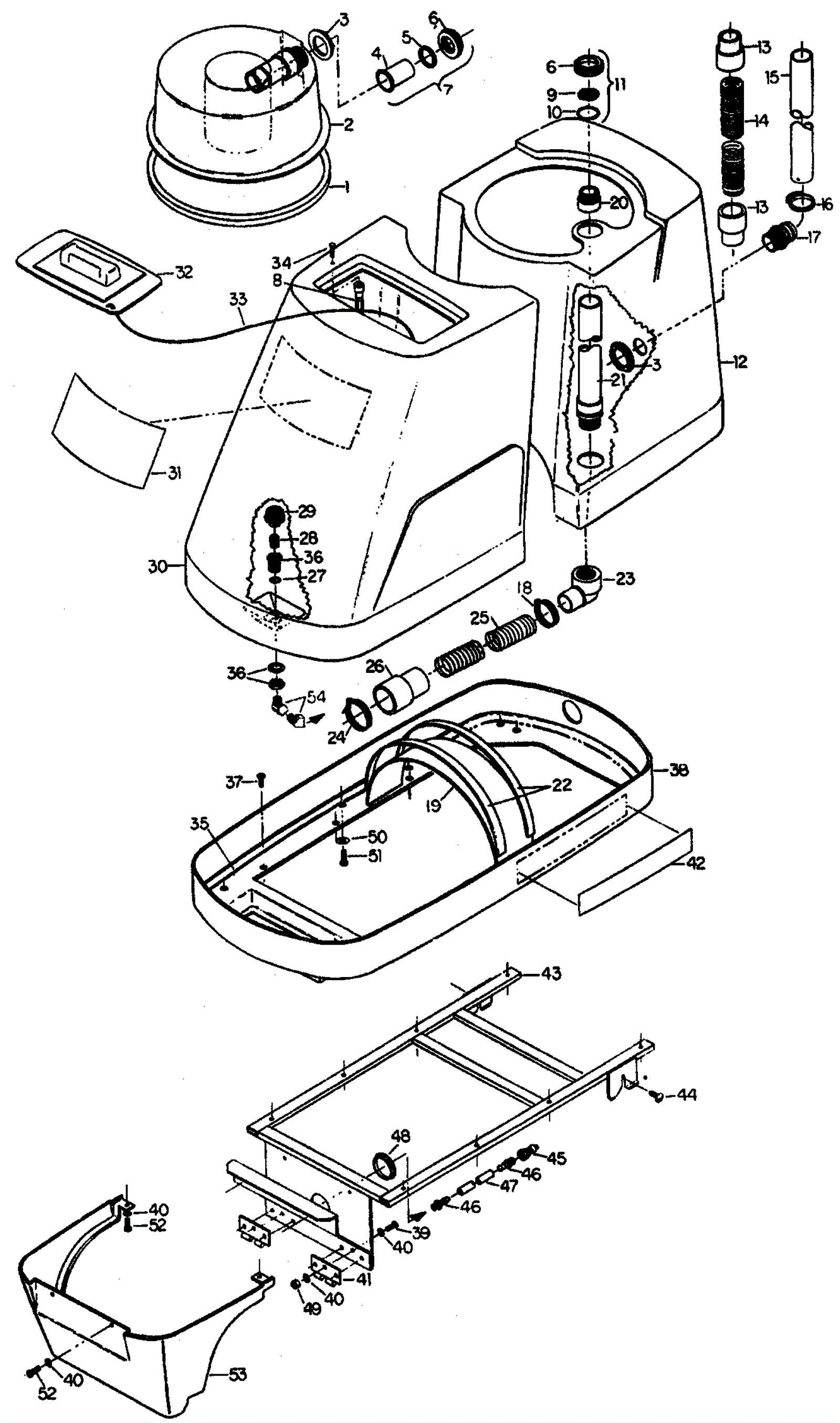

ELECTRA-MATIC Solution and Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4977 Dome gasket $40.15 1 usually ships 14-22 days
2 173-4978 Dome with gasket assembly (OBSOLETE) $445.50 1 usually ships 14-22 days
3 173-2527 Nut 1 1/2 nickel plated thread flange $10.84 1 usually ships 1-5 days
4 173-1643 Vacuum hose intake tube $40.70 1 usually ships 1-5 days
5 173-4979 Intake tube gasket $6.01 1 usually ships 1-5 days
6 273-6836 Slip joint nut $9.35 1 ships same day
7 173-4980 Vacuum hose intake tube assembly $86.90 1 usually ships 1-5 days
8 373-1593 Tank scale Call for price 1 usually ships 14-22 days
9 173-0993 Intake screen (OBSOLETE) $4.16 1 usually ships 1-5 days
10 173-0992 O-ring (OBSOLETE) $4.85 1 usually ships 1-5 days
11 173-0997 Recovery bucket filter assembly (OBSOLETE) $19.13 1 usually ships 1-5 days
12 373-1594 Recovery tank Call for price 2 usually ships 14-22 days
13 373-1595 1 1/2 inch hose cuff Call for price 1 usually ships 14-22 days
14 373-1596 Vacuum shoe hose Call for price 1 usually ships 14-22 days
15 373-1597 Drain hose $14.41 1 usually ships 14-22 days
16 189-4122 Hose clamp $10.84 1 usually ships 14-22 days
17 373-1598 Hosebarb Call for price 1 usually ships 14-22 days
18 273-5693 Hose clamp $2.84 1 ships same day
19 373-1599 Tank drip guard Call for price 1 usually ships 14-22 days
20 173-0586 Adapter $9.08 1 usually ships 1-5 days
21 373-1600 Vacuum stack tube assembly Call for price 2 usually ships 14-22 days
22 173-4969 Solution/recovery seal gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
23 373-1601 Adapter Call for price 1 usually ships 14-22 days
24 173-0988 2 inch hose clamp $13.09 1 usually ships 14-22 days
25 373-1602 Valve intake hose Call for price 1 usually ships 14-22 days
26 173-0143 Pile adjustment axle $27.39 1 usually ships 14-22 days
28 173-4973 Close nipple 3/8 (OBSOLETE) $5.50 1 usually ships 1-5 days
29 173-4974 Mesh strainer 3/8 (OBSOLETE) $14.21 1 usually ships 14-22 days
30 373-1604 Solution tank Call for price 1 usually ships 14-22 days
31 373-1605 Decal Call for price 1 usually ships 14-22 days
32 373-1606 Solution tank lid Call for price 1 usually ships 14-22 days
33 173-0694 Tank lid cord $4.62 1 usually ships 1-5 days
34 173-2454 Screw 10-3/4 polyfast $1.40 3 ships same day
35 173-4966 Solution/recovery tank pan gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
36 173-4972 Bush with nut 3/8 x 1 (OBSOLETE) $27.79 3 usually ships 1-5 days
37 173-4967 Screw 10-32 x 5/8 flat head (OBSOLETE) $3.11 6 usually ships 1-5 days
38 373-1607 Pan Call for price 1 usually ships 14-22 days
39 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
40 999-0998 Washer #10 flat stainless steel $0.99 9 ships same day
41 373-1608 Buff hinge Call for price 2 usually ships 14-22 days
42 373-1609 Decal Call for price 1 usually ships 14-22 days
43 373-1610 Frame Call for price 1 usually ships 14-22 days
44 173-4964 Screw 1/4-20 x 1 truss head phillips (OBSOLETE) $3.91 2 usually ships 1-5 days
45 173-4970 Nipple 3/8 $19.25 1 usually ships 1-5 days
46 373-1611 Push-on hose barb Call for price 2 usually ships 14-22 days
47 373-1612 Solution tank hose Call for price 2 usually ships 14-22 days
48 173-2110 1.63 snap bushing $25.63 1 usually ships 14-22 days
49 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 6 ships same day
50 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
51 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
52 173-4965 Screw 10-32 x 1/2 phan head standard stainless steel $0.99 3 usually ships 1-5 days
53 373-1613 Front skirt Call for price 1 usually ships 14-22 days
54 373-1614 Elbow Call for price 2 usually ships 14-22 days
