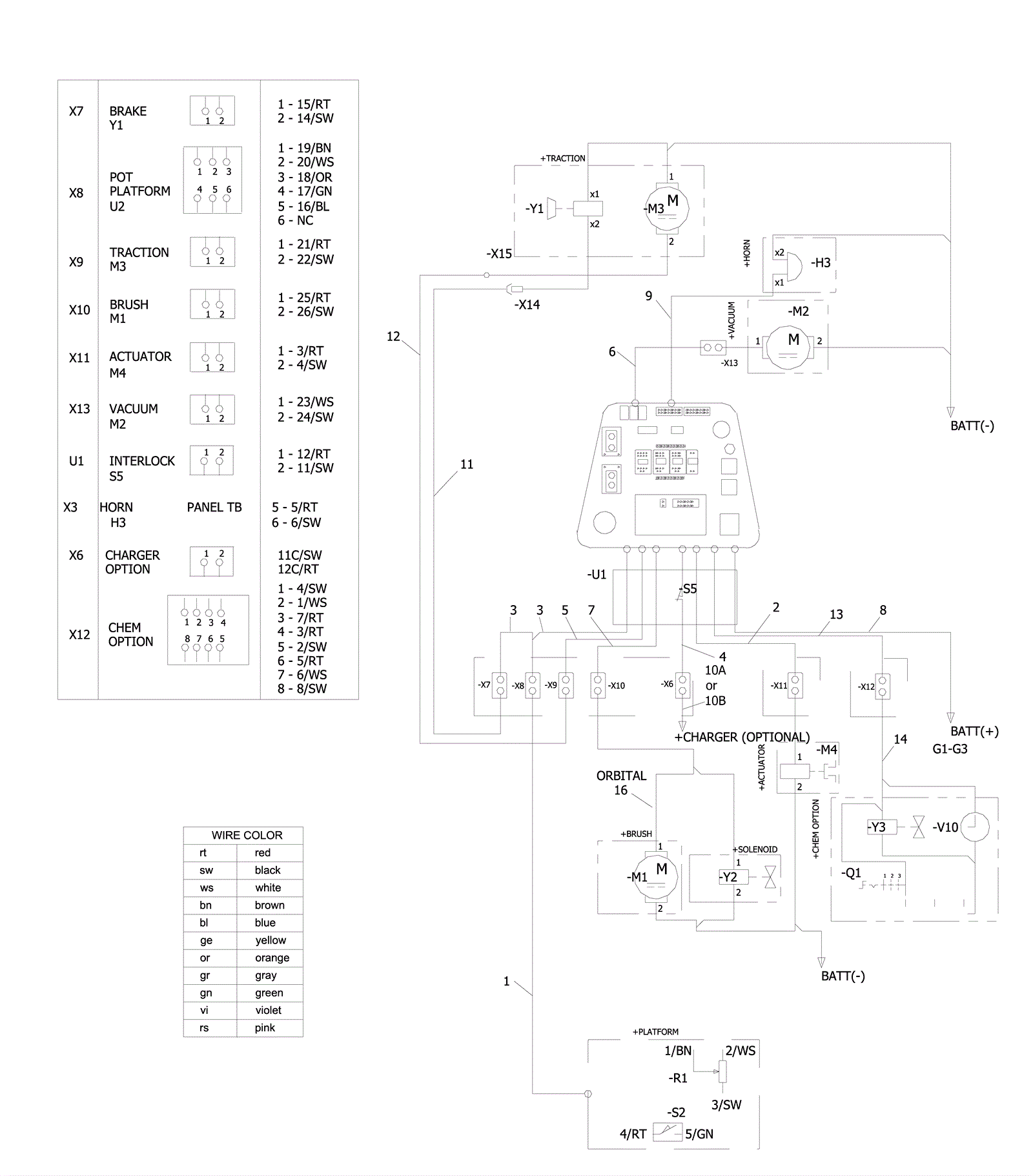

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-6671
|
Operator platform harness |
$111.10
|
1 |
|
usually ships 1-5 days |
2 |
273-6673
|
Main actuator harness |
$80.30
|
1 |
|
usually ships 1-5 days |
3 |
173-7300
|
Main potentiometer and brake harness |
$195.80
|
1 |
|
usually ships 7-19 days |
4 |
173-7301
|
Main charger harness |
$136.40
|
1 |
|
usually ships 7-19 days |
5 |
173-7302
|
Main traction harness |
$104.50
|
1 |
|
usually ships 7-19 days |
6 |
173-7303
|
Main vacuum harness |
$68.20
|
1 |
|
usually ships 1-5 days |
7 |
173-7304
|
Main brush harness |
$90.75
|
1 |
|
usually ships 1-5 days |
8 |
173-7305
|
Main power harness |
$195.80
|
1 |
|
usually ships 7-19 days |
9 |
173-7306
|
Main horn harness |
$50.05
|
1 |
|
usually ships 1-5 days |
10a |
173-7307
|
Charger inhibit jumper |
$30.47
|
1 |
|
usually ships 7-19 days |
10b |
273-7098
|
Charger jumper harness |
$105.05
|
1 |
|
usually ships 7-19 days |
11a |
273-8932
|
Lower traction cable set |
$38.39
|
1 |
(for models 10061250, 10061300, 10061330, 10061340, 10061370,
10061380, 10061700,10061710, 10061720, 10061730,
10061810, 10061830, 10061840) |
usually ships 7-19 days |
11b |
273-6684
|
Lower brake harness |
$66.55
|
1 |
|
usually ships 7-19 days |
12b |
273-6685
|
Lower traction harness |
$82.50
|
1 |
|
usually ships 7-19 days |
13 |
273-4385
|
Lower harness |
$187.00
|
1 |
(for models 10061700,10061710,10061720,10061730) |
usually ships 7-19 days |
14 |
273-4386
|
Upper harness |
$133.10
|
1 |
(for models 10061700,10061710,10061720,10061730) |
usually ships 7-19 days |
15 |
273-4387
|
Panel harness |
$13.09
|
1 |
(for models 10061700,10061710,10061720,10061730) |
usually ships 7-19 days |
16 |
273-4388
|
Solenoid harness |
$59.95
|
1 |
(for models 10061810,10061820,10061830,10061840) |
usually ships 7-19 days |
