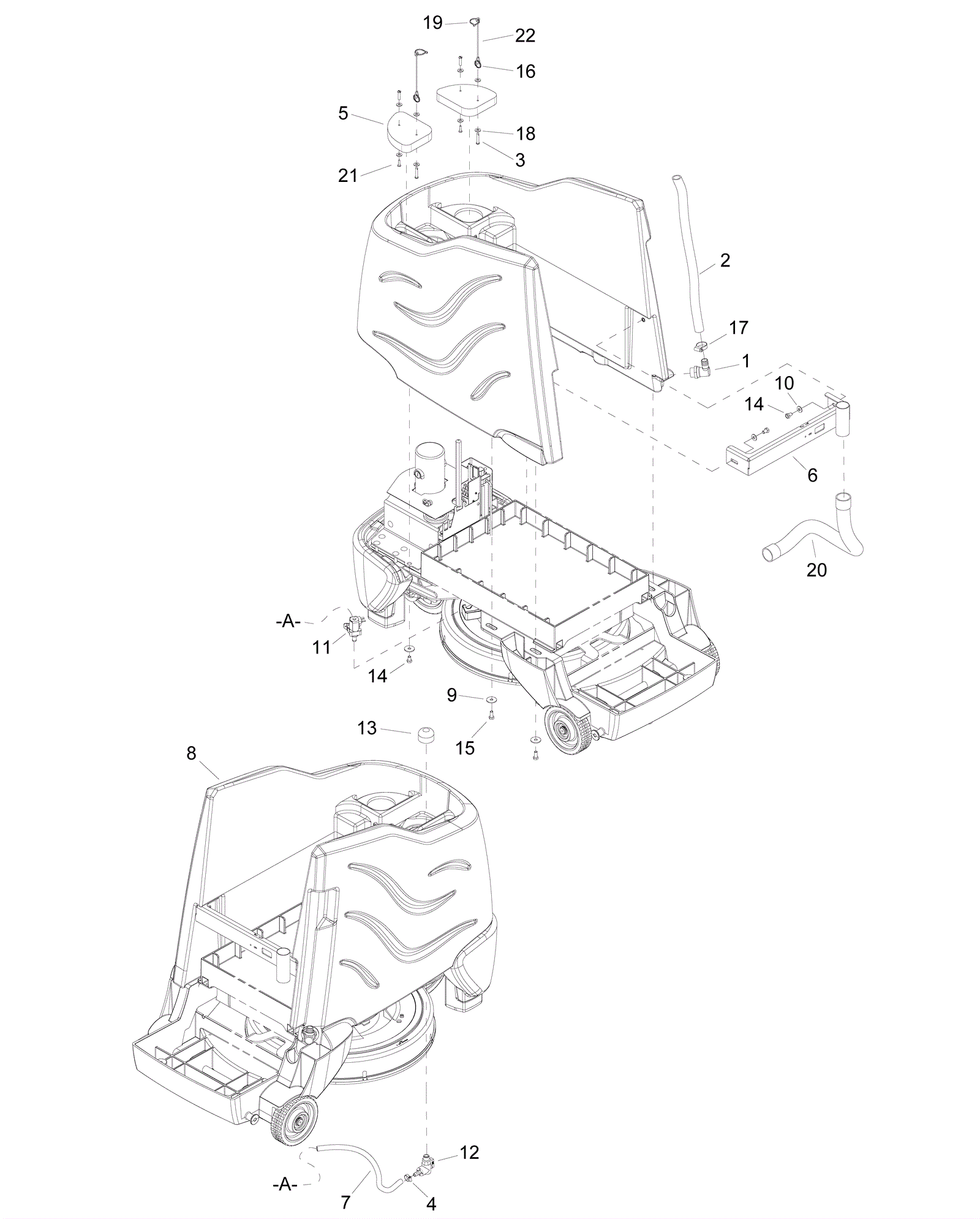

Chariot2 Iscrub20D (Gray) Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7266 Elbow $66.55 1 usually ships 7-19 days
2 173-7267 Hose 3/4 x 20 inch (clear) $18.04 1 usually ships 7-19 days
3 273-7059 Clevis pin $25.08 2 usually ships 1-5 days
4 173-1821 Hose clamp $6.39 1 ships same day
5 273-7060 Solution fill plug $15.73 2 usually ships 7-19 days
6 173-7271 Tank brace bracket $112.20 1 usually ships 7-19 days
7 173-7272 Hose 3/8 x 18 inch wirebound $24.20 1 usually ships 7-19 days
8 273-7604 Solution tank (gray) $797.50 1 usually ships 7-19 days
9 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 5 ships same day
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
11 273-1142 36V solution solenoid valve $56.65 1 usually ships 7-19 days
12 273-6530 Ball valve $48.61 1 usually ships 7-19 days
13 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
14 173-3962 Bolt 5/16-18 x 1/2 hex head $3.33 4 usually ships 1-5 days
15 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
16 273-7063 Split ring $5.61 2 usually ships 7-19 days
17 173-1079 Hose clamp (OBSOLETE) $2.06 1 usually ships 7-19 days
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
19 173-0822 Wire tie $0.99 2 usually ships 7-19 days
20 173-7220 Hose assembly 1.25 x 18 inch $86.35 1 ships same day
21 273-7062 1/4 x 1 inch plastic screw post $3.21 2 usually ships 1-5 days
22 273-0006 Strap $5.94 2 usually ships 7-19 days
