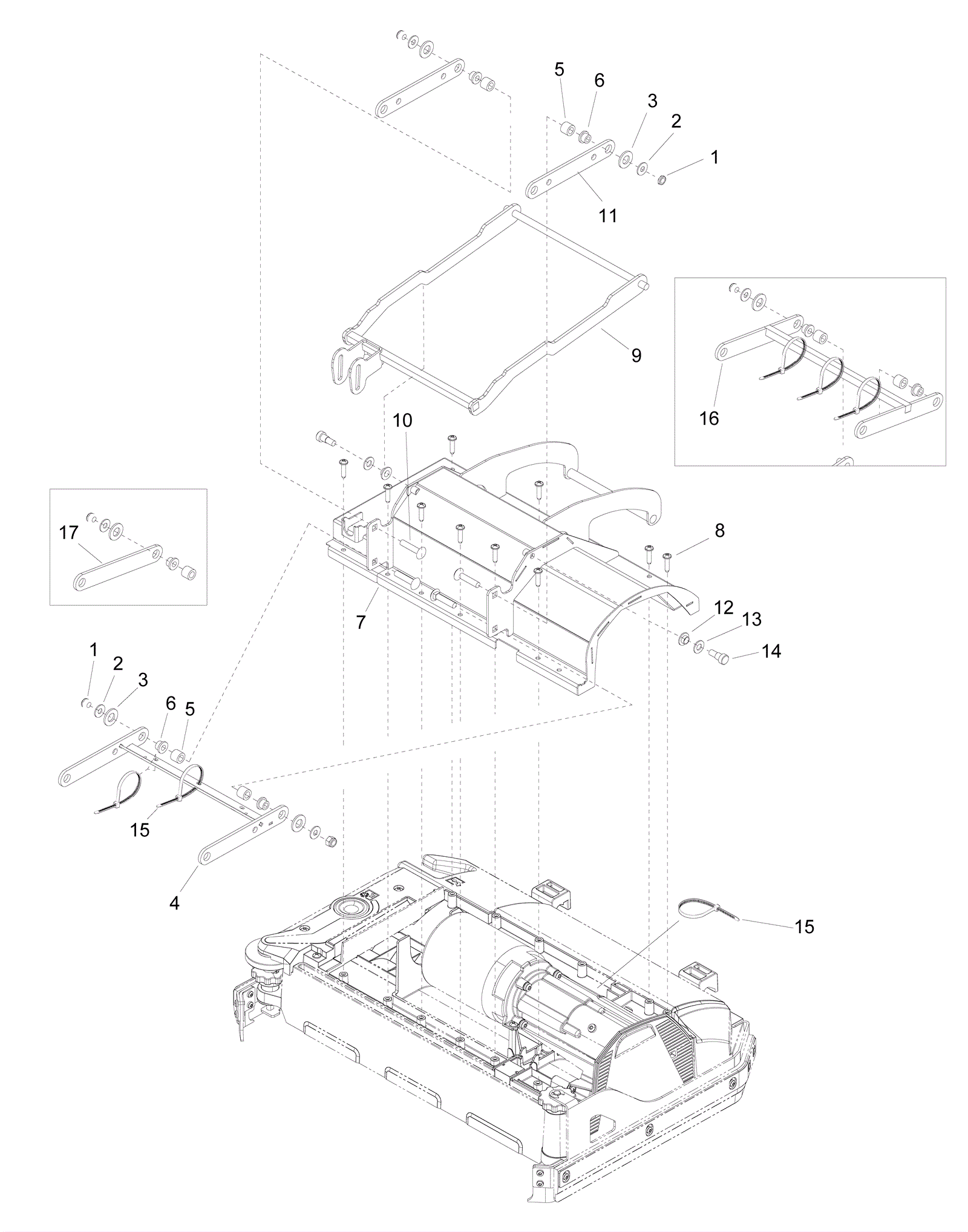

Chariot2 Iscrub20D (Gray) Brush Deck Linkage Assembly- Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
3 173-3964 Thrust washer $6.44 4 ships same day
4 273-7898 Bottom linkage bracket $112.22 1 (for models 10061250, 10061300, 10061330, 10061340, 10061370, 10061380, 10061700,10061710, 10061720, 10061730, 10061810, 10061830, 10061840) usually ships 7-19 days
5 273-7051 Spacer $5.20 4 usually ships 1-5 days
6 273-5628 Flanged bearing $5.50 4 ships same day
7 273-7052 Deck cover $500.50 1 usually ships 1-5 days
8 273-6049 Screw 6-10.9 x 25mm $3.39 13 usually ships 1-5 days
9 273-7053 Lift arm frame $203.50 1 usually ships 1-5 days
10 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 4 usually ships 1-5 days
11 273-7899 Top arm linkage $14.30 2 (for models 10061250, 10061300, 10061330, 10061340, 10061370, 10061380, 10061700,10061710, 10061720, 10061730, 10061810, 10061830, 10061840) usually ships 7-19 days
12 273-7055 Nylon flanged bearing $1.40 2 usually ships 1-5 days
13 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
14 173-1545 Shoulder bolt $28.93 2 usually ships 7-19 days
15 173-3169 Wire tie $1.03 3 (for models 10061250, 10061300, 10061330, 10061340, 10061370, 10061380, 10061700,10061710, 10061720, 10061730, 10061810, 10061830, 10061840)(qty was 4) usually ships 1-5 days
16 273-7054 Upper linkage bracket $94.60 1 usually ships 1-5 days
17 273-7050 Lower linkage bracket $20.35 2 usually ships 1-5 days
