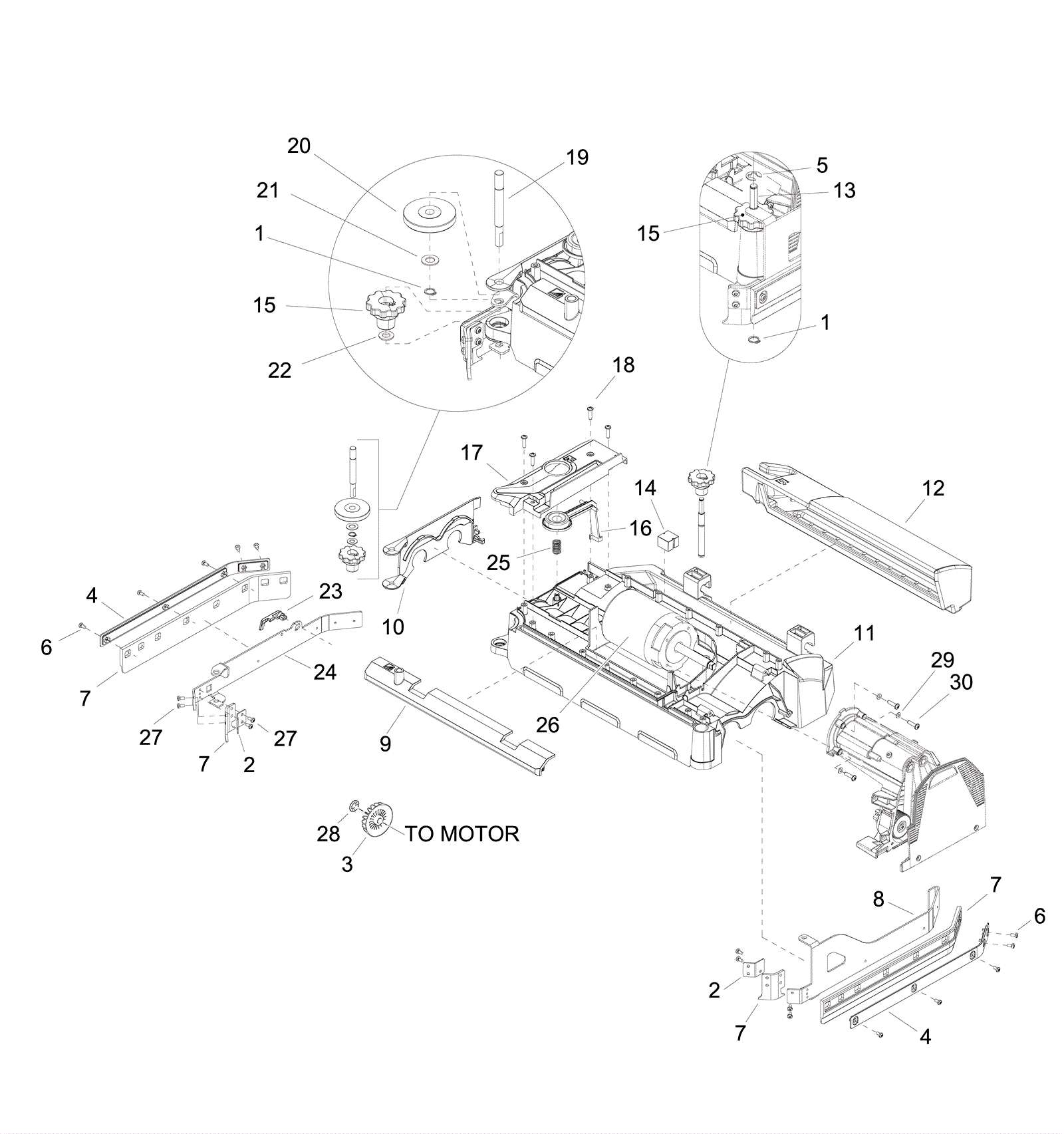

Chariot2 Iscrub20D (Gray) Brush Deck Assembly- Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 273-6070 Locking ring $1.40 2 usually ships 7-19 days
1 273-6070 Locking ring $1.40 2 usually ships 7-19 days
2 273-7028 Rubber lip side plate $48.29 2 usually ships 7-19 days
2 273-7028 Rubber lip side plate $48.29 2 usually ships 7-19 days
3 273-5839 Blower wheel $35.20 1 usually ships 1-5 days
3 273-5839 Blower wheel $35.20 1 usually ships 1-5 days
4 273-7030 Squeegee blade screen $73.29 2 ships same day
4 273-7030 Squeegee blade screen $73.29 2 ships same day
5 273-7031 Lock washer $1.88 1 usually ships 7-19 days
5 273-7031 Lock washer $1.88 1 usually ships 7-19 days
6 173-6196 Screw M5 x 12mm $4.49 10 usually ships 7-19 days
6 173-6196 Screw M5 x 12mm $4.49 10 usually ships 7-19 days
7 273-7032 Side strip $162.02 2 usually ships 7-19 days
7 273-7032 Side strip $162.02 2 usually ships 7-19 days
8 273-7033 Bracket $226.60 1 usually ships 7-19 days
8 273-7033 Bracket $226.60 1 usually ships 7-19 days
9 273-7034 Water distributor strip $116.60 1 usually ships 1-5 days
9 273-7034 Water distributor strip $116.60 1 usually ships 1-5 days
10 273-7035 Brush retainer $90.94 1 usually ships 7-19 days
10 273-7035 Brush retainer $90.94 1 usually ships 7-19 days
11 273-7036 Lower housing $680.90 1 usually ships 1-5 days
11 273-7036 Lower housing $680.90 1 usually ships 1-5 days
12 273-7037 Sweep tank counter rotation $529.10 1 usually ships 7-19 days
12 273-7037 Sweep tank counter rotation $529.10 1 usually ships 7-19 days
13 273-5844 Threaded bolt $55.55 1 usually ships 1-5 days
13 273-5844 Threaded bolt $55.55 1 usually ships 1-5 days
14 273-4372 Plug head $8.03 1 usually ships 7-19 days
14 273-4372 Plug head $8.03 1 usually ships 7-19 days
15 273-5845 Adjustment wheel $24.09 2 usually ships 1-5 days
15 273-5845 Adjustment wheel $24.09 2 usually ships 1-5 days
16 273-7040 Brush locking $46.75 1 usually ships 1-5 days
16 273-7040 Brush locking $46.75 1 usually ships 1-5 days
17 273-7041 Upper housing lock $80.85 1 usually ships 1-5 days
17 273-7041 Upper housing lock $80.85 1 usually ships 1-5 days
18 273-6049 Screw 6-10.9 x 25mm $3.39 8 usually ships 1-5 days
18 273-6049 Screw 6-10.9 x 25mm $3.39 8 usually ships 1-5 days
19 273-7042 Bolt $111.10 1 ships same day
19 273-7042 Bolt $111.10 1 ships same day
20 273-7043 Deflector roll $90.75 1 usually ships 7-19 days
20 273-7043 Deflector roll $90.75 1 usually ships 7-19 days
21 273-7044 Washer $7.15 1 usually ships 1-5 days
21 273-7044 Washer $7.15 1 usually ships 1-5 days
22 273-7045 Washer $3.45 1 usually ships 7-19 days
22 273-7045 Washer $3.45 1 usually ships 7-19 days
23 273-7046 Side plate locking bar $109.45 1 usually ships 7-19 days
23 273-7046 Side plate locking bar $109.45 1 usually ships 7-19 days
24 273-4373 Sheet metal strip $266.73 1 usually ships 7-19 days
24 273-4373 Sheet metal strip $266.73 1 usually ships 7-19 days
25 273-7048 Pressure spring $5.20 1 usually ships 1-5 days
25 273-7048 Pressure spring $5.20 1 usually ships 1-5 days
26 273-7049 Motor with plug $1,024.10 1 usually ships 7-19 days
26 273-7049 Motor with plug $1,024.10 1 usually ships 7-19 days
27 999-6676 Screw M5-.8 x 10mm hex socket head stainless steel $0.99 8 ships same day
27 999-6676 Screw M5-.8 x 10mm hex socket head stainless steel $0.99 8 ships same day
28 183-0394 Quick fastener (OBSOLETE) $1.30 1 usually ships 8-21 days
28 183-0394 Quick fastener (OBSOLETE) $1.30 1 usually ships 8-21 days
29 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
29 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
30 273-3528 Screw M6 x 30mm A2 $3.54 4 usually ships 1-5 days
30 273-3528 Screw M6 x 30mm A2 $3.54 4 usually ships 1-5 days
