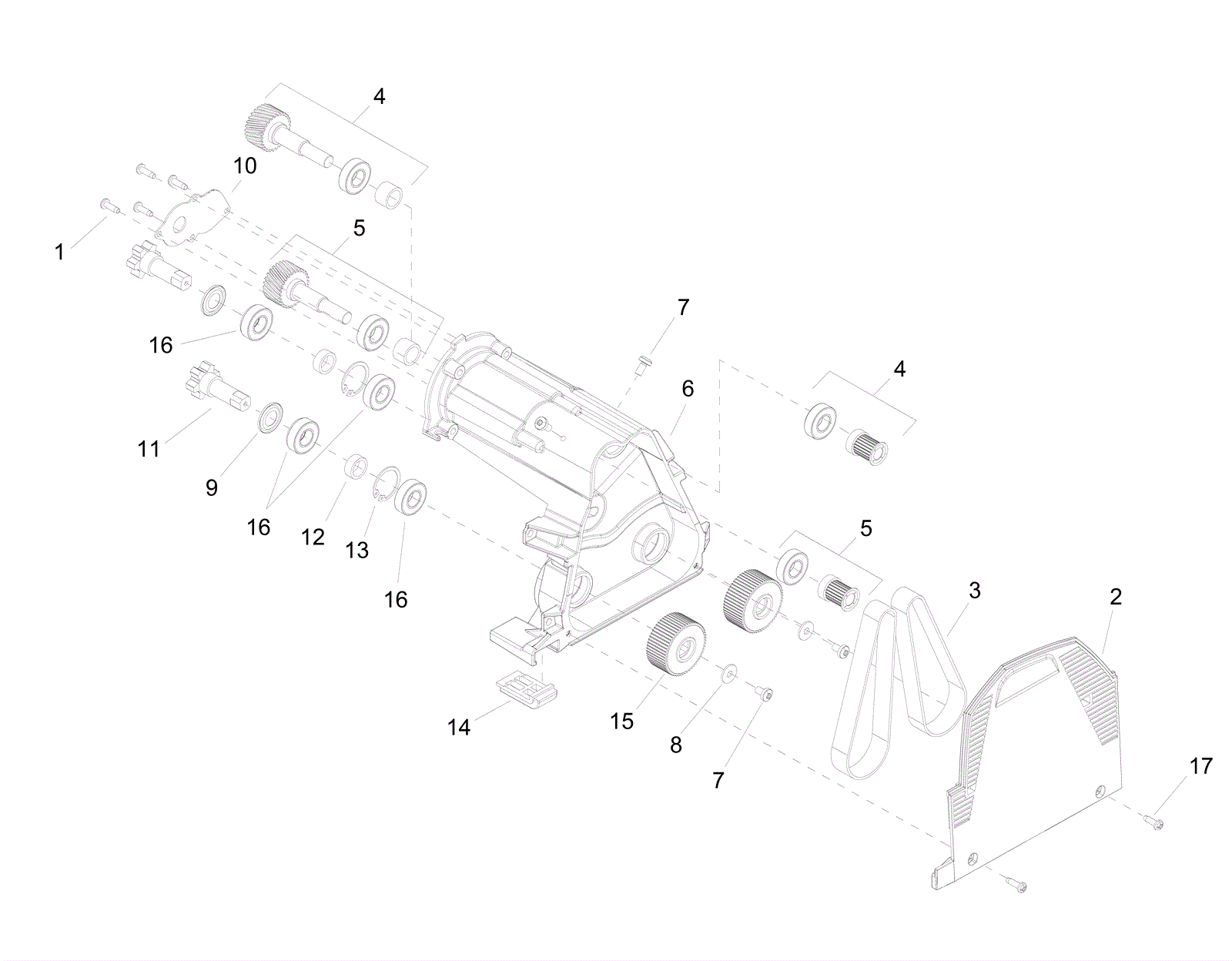

Chariot2 Iscrub20D (Gray) Brush Deck Drive Assembly- Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 183-0281 Screw $1.35 4 usually ships 8-21 days
2 273-7019 Gear cover $57.20 1 usually ships 1-5 days
3 273-7020 Toothed belt $111.10 2 (IF 50356840 IS METAL, ORDER 40350050, 40353810, 40353800, AND 50356840) usually ships 7-19 days
4 273-7021 Right gear shaft $468.60 1 (IF 50356840 IS METAL, ORDER 40350050, 40353810, 40353800, AND 50356840) usually ships 1-5 days
5 273-7900 Left side gear shaft $414.70 1 (IF 50356840 IS METAL, ORDER 40350050, 40353810, 40353800, AND 50356840) usually ships 7-19 days
6 273-7022 Carrier motor $129.82 1 usually ships 7-19 days
7 273-7023 Screw M6 x 12 $2.61 3 usually ships 1-5 days
8 173-6337 Washer $1.32 2 usually ships 7-19 days
9 273-7901 Stainless steel joint ring $46.75 2 ships same day
10 273-7902 Gear cap covering $45.43 1 (IF 50356840 IS METAL, ORDER 40350050, 40353810, 40353800, AND 50356840) usually ships 7-19 days
11 273-7903 Driveshaft $136.40 2 usually ships 7-19 days
12 173-6284 Spacer sleeve $11.44 2 usually ships 7-19 days
13 273-5828 Locking ring $2.71 2 usually ships 7-19 days
14 273-5816 Rocker $26.73 1 usually ships 7-19 days
15 273-7026 Pulley $40.70 2 usually ships 7-19 days
16 273-5827 Ball bearing $35.75 4 usually ships 7-19 days
17 173-6287 Screw M5 x 16mm $1.94 2 usually ships 1-5 days
