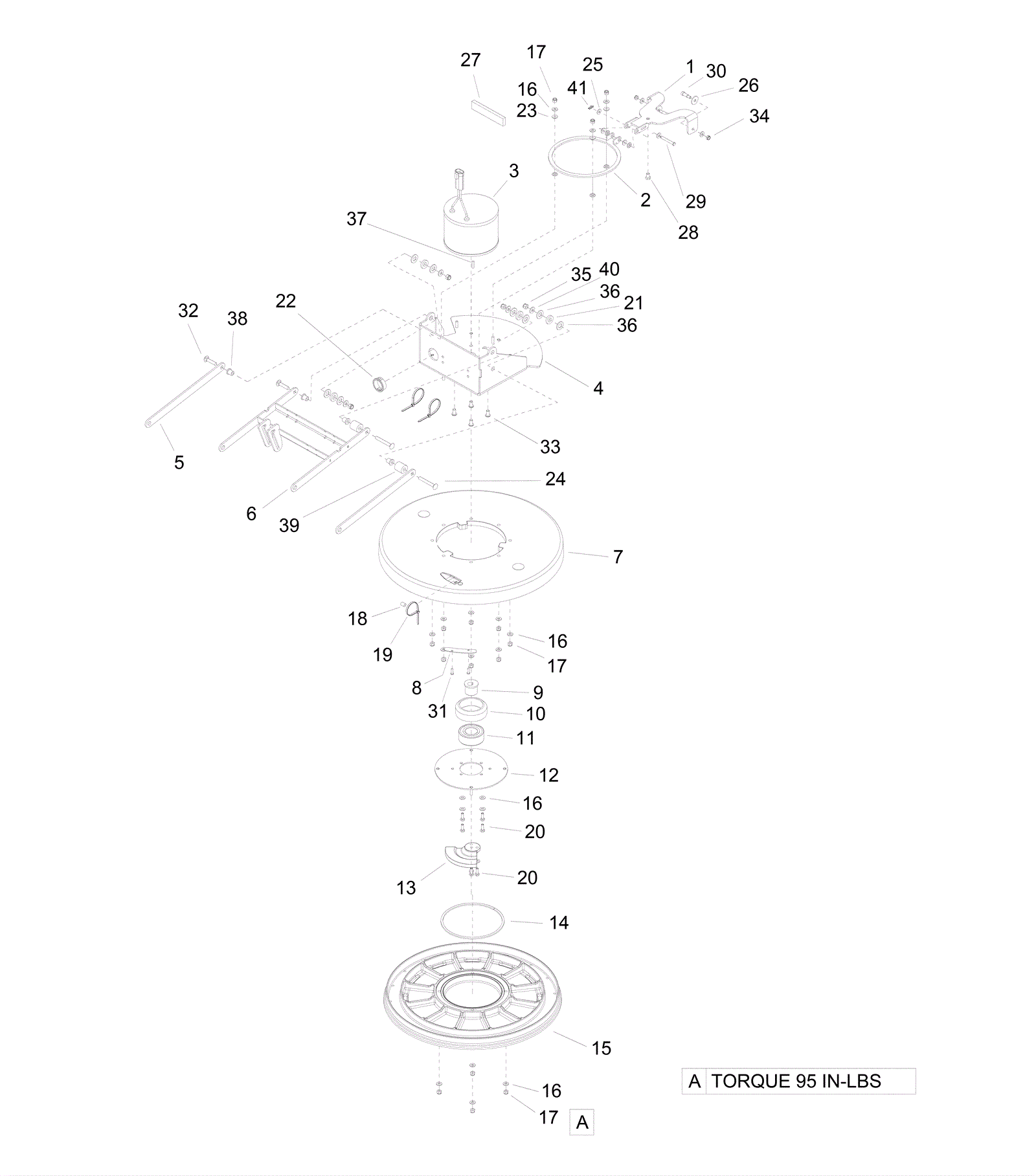

Chariot2 Iscrub20D (Gray) Brush Deck Assembly- Orbital

#PartDescriptionPriceReqNotesAvailability
1 273-7811 Squeegee pivot assembly $111.10 1 usually ships 7-19 days
2 273-7812 Squeegee pivot assembly ring $73.15 1 usually ships 7-19 days
3a 273-7813 36v motor $999.90 1 usually ships 7-19 days
3b 273-4370 Brush set (OBSOLETE) $108.35 1 usually ships 7-19 days
4 273-7814 Deck mount $236.50 1 usually ships 7-19 days
5 273-7815 Deck linkage $28.93 2 usually ships 7-19 days
6 273-7816 Top lift bracket assembly $144.10 1 usually ships 7-19 days
7 273-7817 20 inch orbital shroud $93.60 1 ships same day
8 273-7818 Orbital diverter plate $7.59 1 usually ships 7-19 days
9 273-7819 Orbital drive eccentric $180.40 1 usually ships 7-19 days
10 273-7820 Bearing housing $273.90 1 usually ships 7-19 days
11 273-7896 Bearing $115.52 1 usually ships 7-19 days
12 273-7821 Bearing mount plate $65.45 1 usually ships 7-19 days
13 273-7888 Orbital counterweight $157.30 1 usually ships 7-19 days
14 273-7889 Gasket $5.94 1 usually ships 7-19 days
15 273-7890 20 inch orbital pad driver $154.02 1 usually ships 7-19 days
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 24 ships same day
17 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 15 ships same day
18 273-7891 Spacer $0.99 1 (NON CHEMICAL METERING ONLY) usually ships 7-19 days
19 273-3820 11 inch cable tie $0.41 3 ships same day
20 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 7 ships same day
21 273-7892 Washer 1/2 x 1 neoprene $6.77 8 usually ships 7-19 days
22 273-7893 Nylon snap bushing $2.90 1 usually ships 7-19 days
23 273-7894 Nylon flange bushing $2.00 10 usually ships 7-19 days
24 999-1607 Bolt 5/16-18 x 2 1/2 carriage stainless steel $3.83 2 ships same day
25 273-7088 Washer nylon (black) $1.40 2 usually ships 1-5 days
26 273-7895 Washer 5/16 x 1 plastic $3.70 2 usually ships 7-19 days
27 173-5960 Bracket gasket $8.64 1 usually ships 7-19 days
28 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 1 ships same day
29 173-7261 Clevis pin $0.94 1 usually ships 7-19 days
30 173-7252 Bolt 5/16 x 5/8 shoulder stainless steel $21.12 2 usually ships 7-19 days
31 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 2 usually ships 7-19 days
32 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 2 usually ships 1-5 days
33 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 4 ships same day
34 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
35 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
36 173-2815 Washer 33/64 x 1 thrust $7.81 8 usually ships 7-19 days
37 173-1856 Square keyway $3.75 1 usually ships 7-19 days
38 273-0024 Flanged bearing $9.02 4 usually ships 7-19 days
39 273-5866 Spacer $31.46 2 usually ships 1-5 days
40 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
41 173-1130 Cotter ring $2.42 1 usually ships 7-19 days
