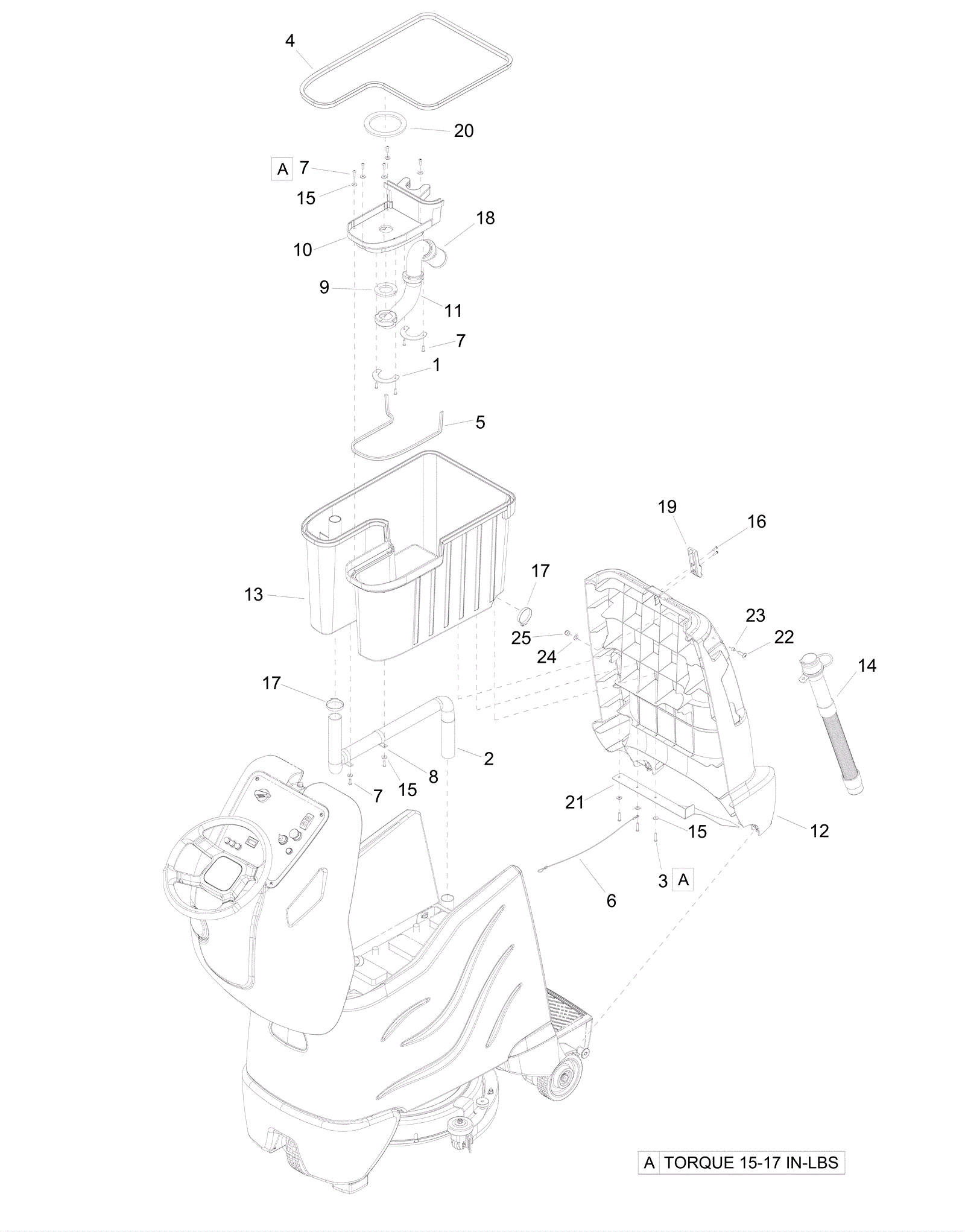

Chariot2 Iscrub20D (Gray) Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7219 Intake retainer plate $18.48 2 usually ships 7-19 days
2 173-7220 Hose assembly 1.25 x 18 inch $86.35 1 ships same day
3 273-5415 Screw KA50 x 25mm stainless steel $4.84 3 ships same day
4 273-5517 Recovery tank gasket $45.21 1 usually ships 7-19 days
5 173-7221 Gasket $6.66 1 usually ships 7-19 days
6 173-7222 15 inch lanyard with loop and eye $33.66 1 ships same day
7 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 11 usually ships 7-19 days
8 173-7223 Clamp $3.80 2 usually ships 7-19 days
9 173-7224 Vacuum intake gasket $11.44 1 usually ships 7-19 days
10 273-4366 Vacuum motor frame (black) $437.80 1 usually ships 7-19 days
11 373-3055 Recovery tank kit $304.76 1 usually ships 7-19 days
12 273-6957 Back panel $251.94 1 usually ships 7-19 days
13 373-3055 Recovery tank kit $304.76 1 usually ships 7-19 days
14a 273-3535 Drain hose (yellow) $163.93 1 usually ships 16-25 days
14b 991-0400 Drain hose with plug $64.98 1 ships same day
15 273-5591 Washer M5 flat stainless steel $1.82 10 usually ships 7-19 days
16 173-7229 Screw KA40 x 16 oval head $3.94 2 usually ships 7-19 days
17 189-0329 Hose clamp $31.44 2 usually ships 1-5 days
18 273-6459 Float assembly $45.76 1 usually ships 7-19 days
19 173-8288 Latch $36.85 1 ships same day
20 173-7230 Vacuum motor gasket $27.39 1 usually ships 7-19 days
21 173-7231 Drain hose retention kit $53.13 1 usually ships 7-19 days
22 173-4632 Screw M12 x 1.25mm pan head phillips stainless steel $6.38 1 usually ships 7-19 days
23 273-5888 Spacer $26.51 1 usually ships 7-19 days
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
25 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
