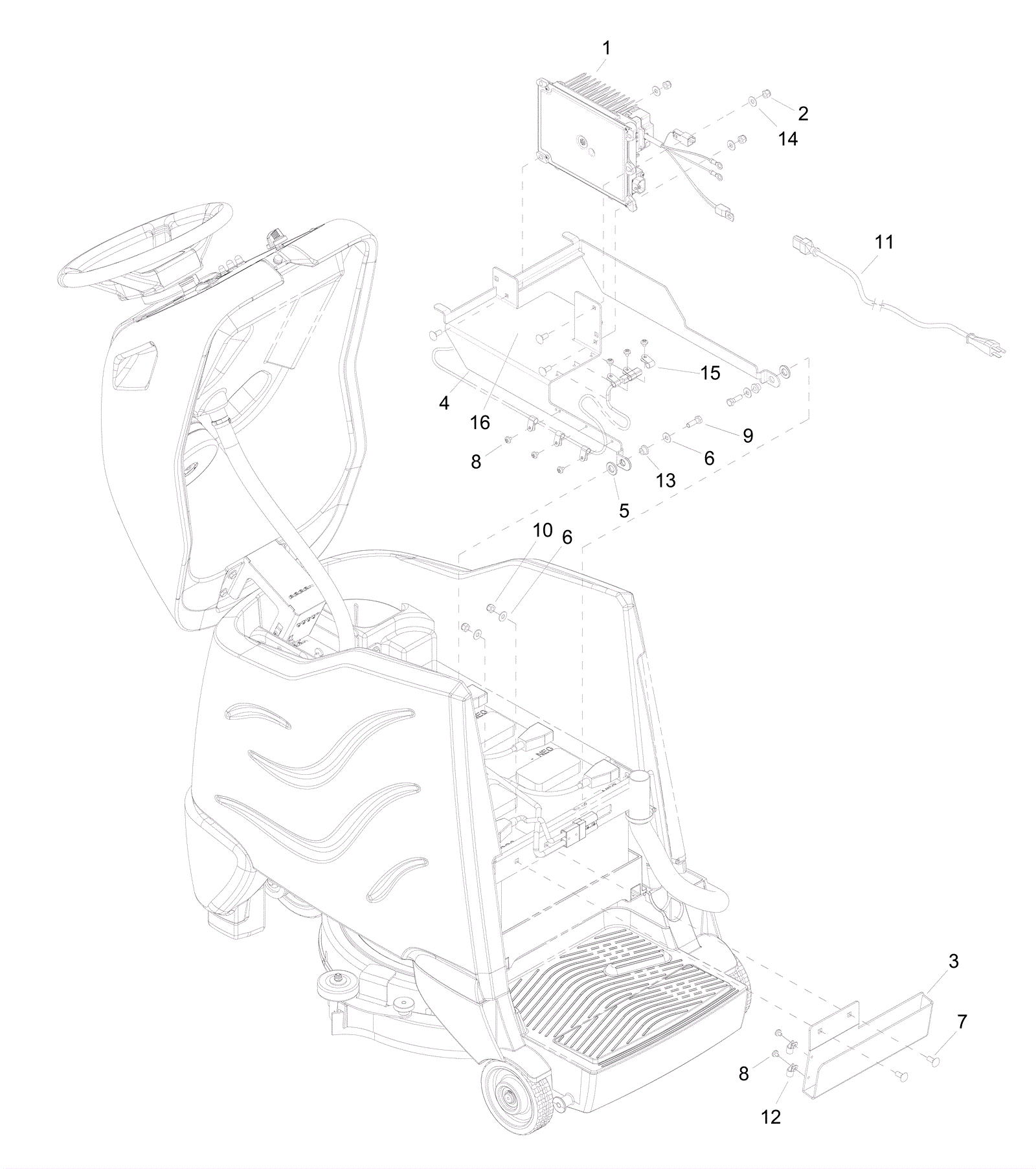

Chariot2 Iscrub20D (Gray) On Board Battery Charger Assembly- Disk

#PartDescriptionPriceReqNotesAvailability
1 273-3577 36V Delta Q battery charger assembly $1,485.00 1 (CALL MANUFACTURER FOR PART REPLACEMENT) usually ships 7-19 days
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
3 173-7311 Cord wrap bracket $133.10 1 usually ships 7-19 days
4 173-7312 Charger bracket $288.20 1 usually ships 7-19 days
5 173-3963 Washer 1/2 thrust $7.32 2 usually ships 7-19 days
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
7 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
8 273-7014 Screw 10-32 x 5/16 (OBSOLETE) $2.97 8 usually ships 7-19 days
9 999-1393 Screw 5/16-18 x 1 flat head phillips stainless steel $2.55 2 ships same day
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
11 273-7584 16/3 cord assembly $55.56 1 ships same day
12 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 2 usually ships 7-19 days
13 273-5628 Flanged bearing $5.50 2 ships same day
14 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
15 173-2099 P clamp (OBSOLETE) $1.39 6 usually ships 7-19 days
16 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 3 ships same day
