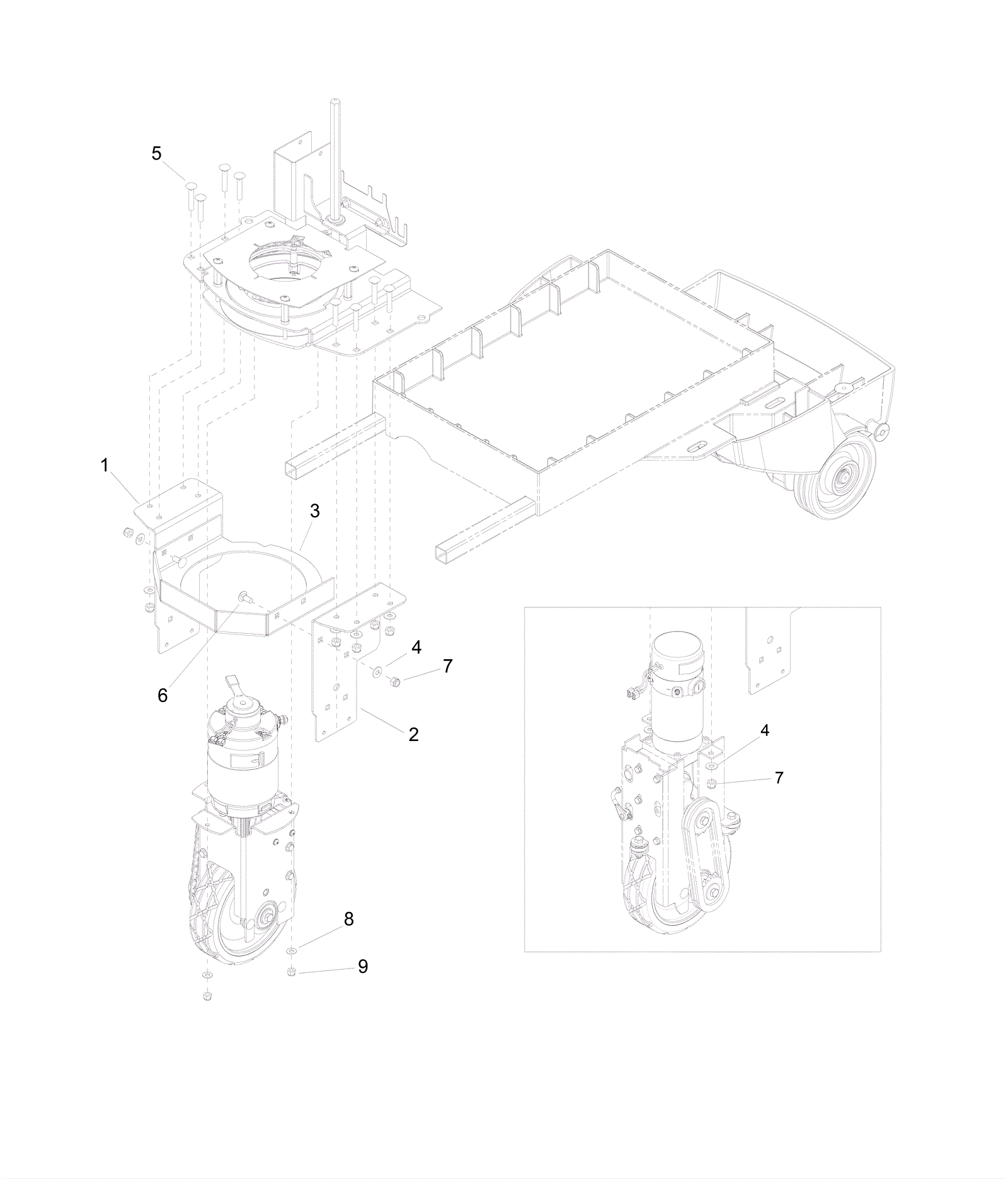

Chariot2 Iscrub20D (Gray) Drive Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-2935 Linkage mount bracket $289.30 1 usually ships 1-5 days
2 173-7203 Left hand linkage mount bracket $67.65 1 usually ships 1-5 days
3 273-4363 Bracket $99.55 1 usually ships 7-19 days
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
5 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 8 ships same day
6 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 10 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
