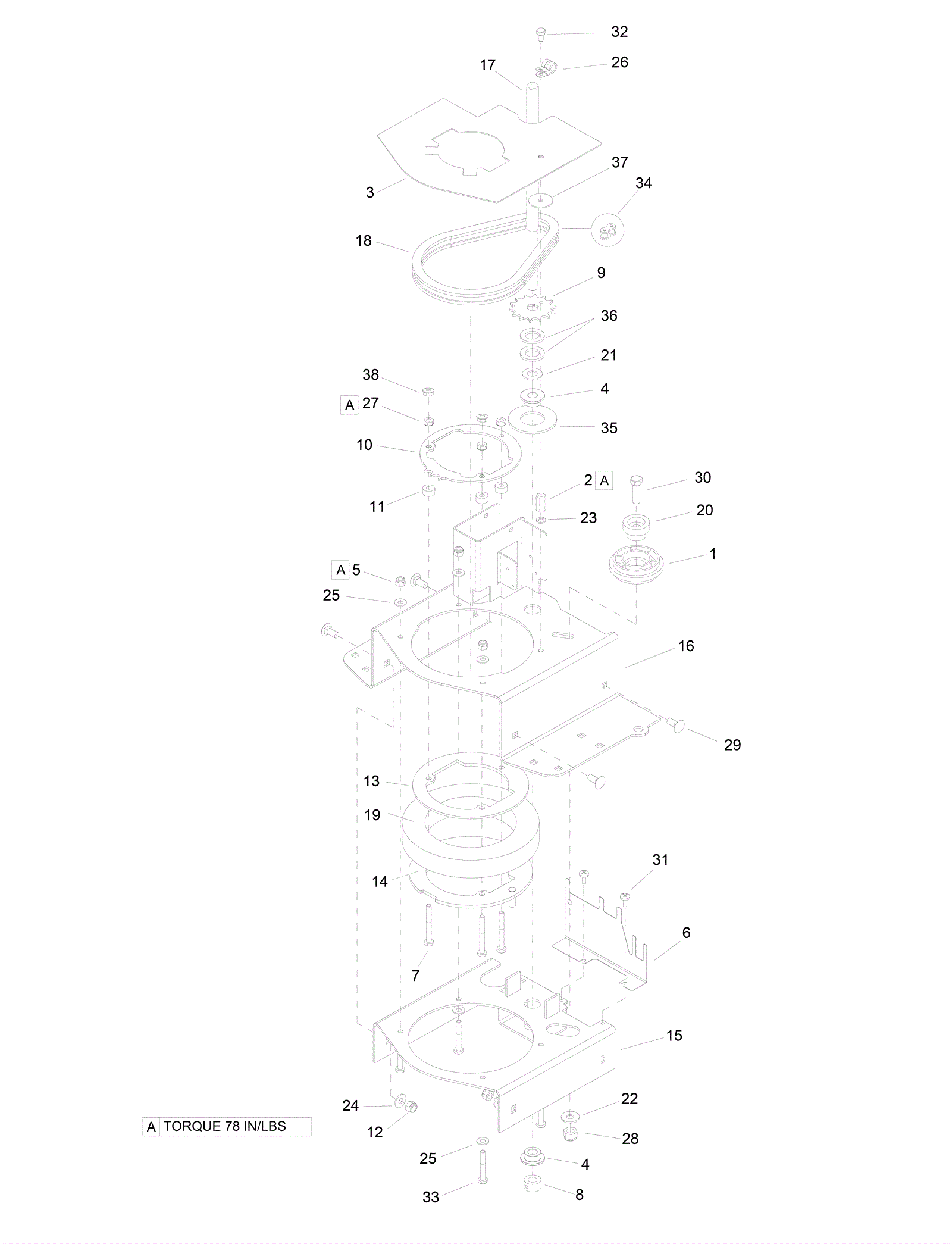

Chariot2 Iscrub20D (Gray) Drive Chain Assembly- Before SN'S listed on diagram

#PartDescriptionPriceReqNotesAvailability
1 173-5988 Chain tensioner $35.86 1 usually ships 7-19 days
2 173-5989 Nut 1/4-20 x 7/8 hex coupling stainless steel $14.08 1 usually ships 1-5 days
3 173-5990 Chain guard plate $19.58 1 usually ships 1-5 days
4 173-5991 Washer .48 x 1.25 shoulder $5.06 2 usually ships 7-19 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
6 173-5992 Connector bracket $35.86 1 usually ships 1-5 days
7 173-5993 Screw 1/4-20 x 2 1/4 hex head cap $1.65 3 usually ships 1-5 days
8 173-5994 12mm collar $22.44 1 usually ships 7-19 days
9 173-5995 Steering sprocket $11.99 1 usually ships 7-19 days
10 173-5996 Chain ring plate $27.39 1 usually ships 1-5 days
11 173-5997 Spacer $17.27 3 usually ships 1-5 days
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 7 ships same day
13 173-5998 Upper clamp plate $30.47 1 usually ships 1-5 days
14 173-5999 Lower clamp plate $62.15 1 usually ships 1-5 days
15 173-7197 Bearing clamp bracket $127.60 1 usually ships 1-5 days
16 173-7198 Mounting plate $265.10 1 usually ships 1-5 days
17 173-7199 Shaft $44.88 1 usually ships 7-19 days
18 173-7200 12.7mm pitch chain $48.95 1 usually ships 7-19 days
19 173-7201 Drive bearing $284.96 1 usually ships 7-19 days
20 173-5291 Chain tensioner sleeve $51.22 1 usually ships 7-19 days
21 999-1346 Washer M12 flat stainless steel $0.99 1 ships same day
22 373-1106 Washer $0.99 1 usually ships 7-19 days
23 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
25 999-0123 Washer 1/4 SAE flat zinc plated $0.99 7 ships same day
26 273-6649 5/8 inch cushioned clamp $7.54 1 usually ships 1-5 days
27 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 3 ships same day
28 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 1 ships same day
29 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
30 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
31 999-1990 Screw #10-32 X 1/2 phillips pan head rolling thread zinc $0.99 2 ships same day
32 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
33 173-5054 Bolt 1/4-1-3/4 hex head $2.37 4 usually ships 7-19 days
34 173-5565 Master link $22.33 1 usually ships 7-19 days
35 273-6644 Washer 2 1/2 x 1 1/4 $7.59 1 usually ships 7-19 days
36 999-9154 Washer 3/4 flat nylon $1.45 2 usually ships 11-24 days
37 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
38 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 2 ships same day
