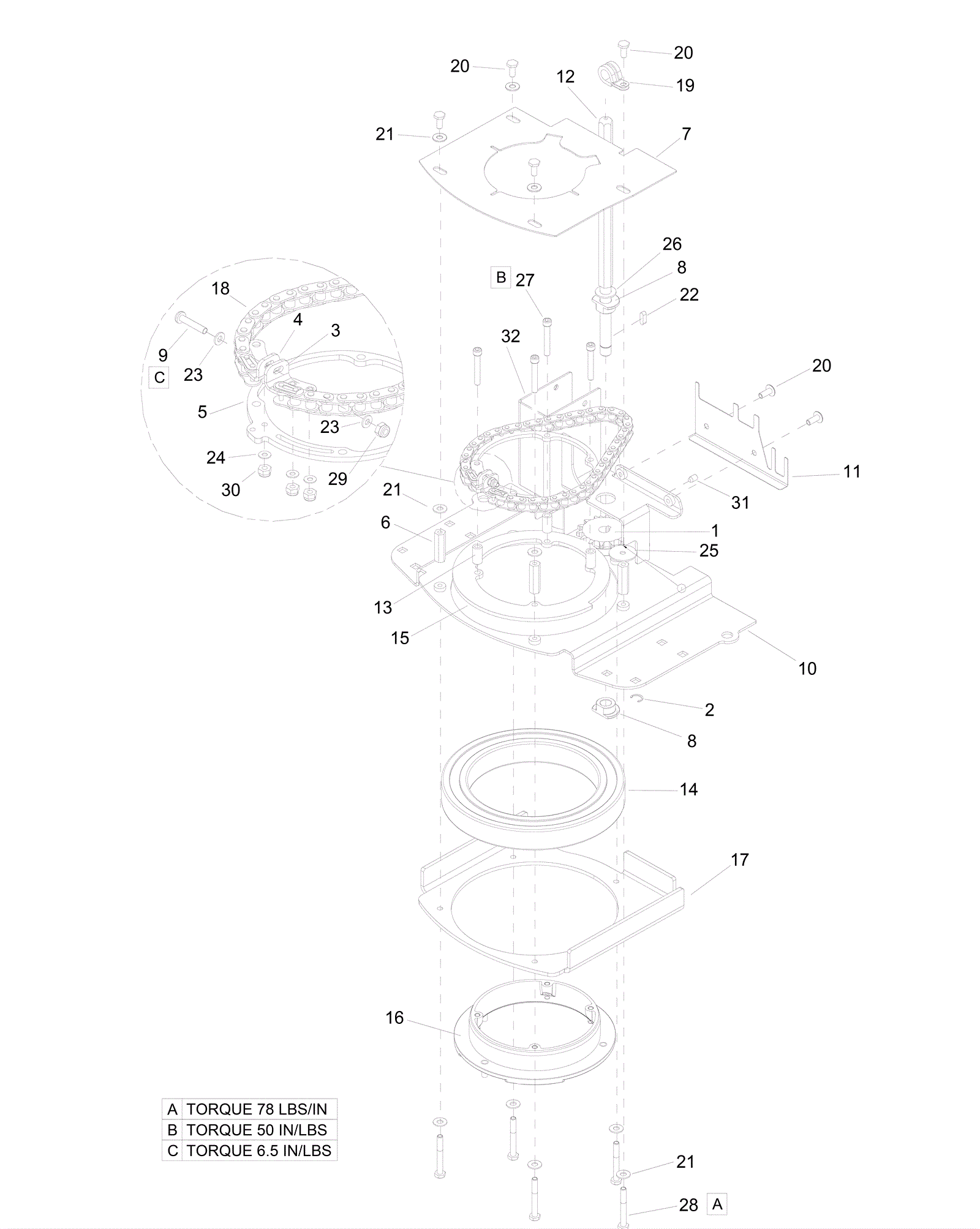

Chariot2 Iscrub20D (Gray) Steering Assembly- After SN'S listed on diagram

#PartDescriptionPriceReqNotesAvailability
1 273-4332 14 toothed sprocket $66.00 1 usually ships 7-19 days
2 273-4333 Clip $0.99 1 usually ships 7-19 days
3 273-4334 Chain tension bracket $30.47 1 usually ships 7-19 days
4 273-4335 Chain mounting bracket $24.64 1 usually ships 7-19 days
5 273-4336 Chain ring plate $111.10 1 usually ships 7-19 days
6 273-4337 Coupling nut $26.51 4 usually ships 7-19 days
7 273-4338 Chain guard plate $16.39 1 usually ships 7-19 days
8 273-4339 Flanged bushing $29.59 2 usually ships 7-19 days
9 999-0973 Screw 10-32 x 1 truss head phillips zinc plated $0.99 1 ships same day
10 273-4340 Steering bracket assembly $163.90 1 usually ships 7-19 days
11 273-4341 Connectors bracket $42.90 1 usually ships 7-19 days
12 273-4342 Steering sprocket shaft $39.82 1 usually ships 7-19 days
13 273-4343 Spacer $11.22 4 usually ships 7-19 days
14 273-4344 Steering bearing $128.70 1 usually ships 7-19 days
15 273-4345 Inner top plate $46.20 1 usually ships 7-19 days
16 273-4346 Lower bearing mount $130.20 1 ships same day
17 273-4347 Outer plate $87.45 1 usually ships 7-19 days
18 991-0101 Chain (sold by the link) $0.55 1 ships same day
19 273-6649 5/8 inch cushioned clamp $7.54 1 usually ships 1-5 days
21 999-0123 Washer 1/4 SAE flat zinc plated $0.99 13 ships same day
22 173-5974 Square keyway $5.61 1 usually ships 7-19 days
23 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 2 usually ships 7-19 days
24 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
26 999-0566 Washer 1/2 flat nylon $0.99 1 ships same day
27 173-0375 Screw 1/4-20 x 2/3 socket head $9.52 4 usually ships 1-5 days
28 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 5 usually ships 11-24 days
29 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
30 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 3 ships same day
31 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
32 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
